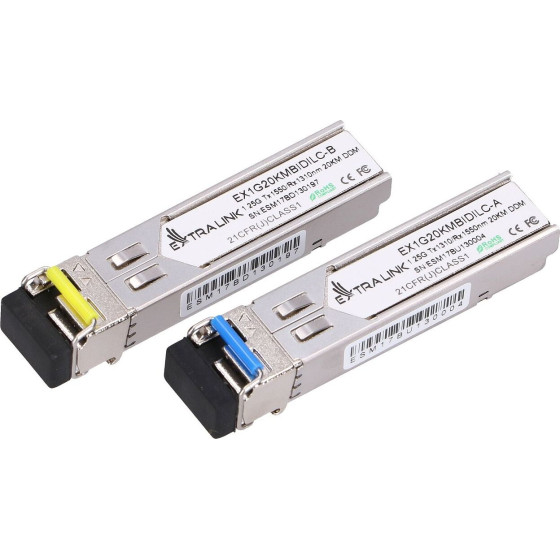

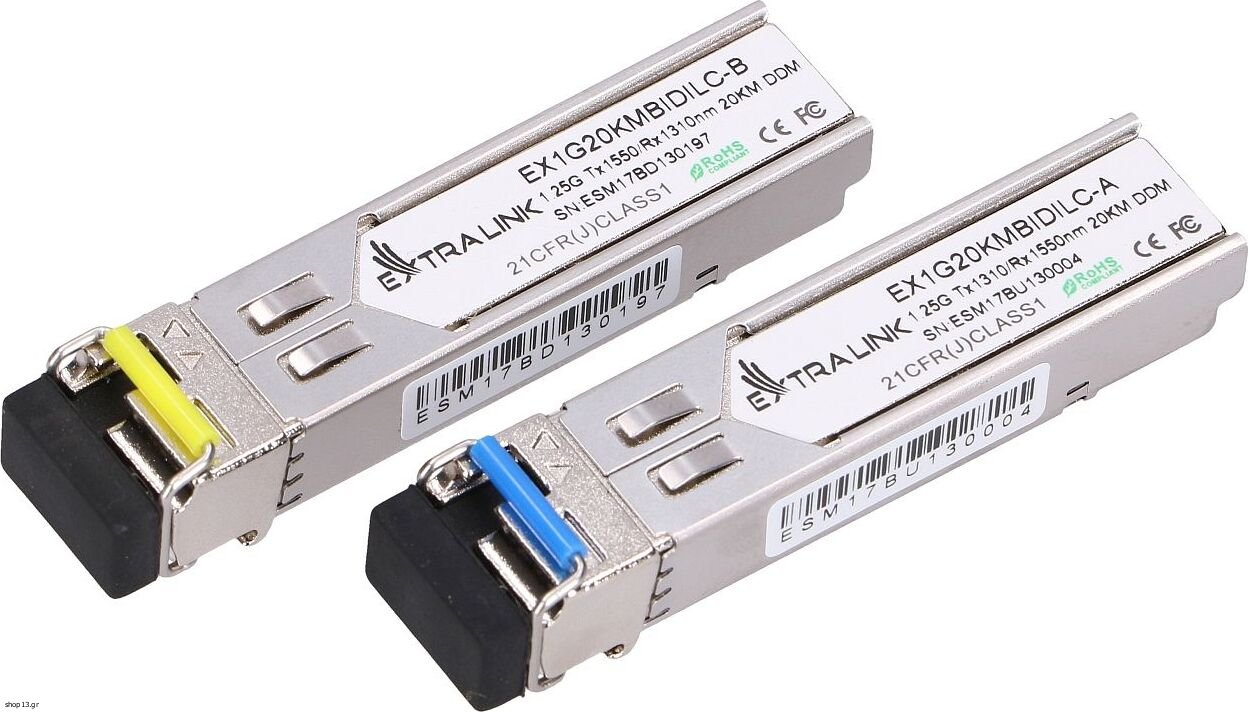

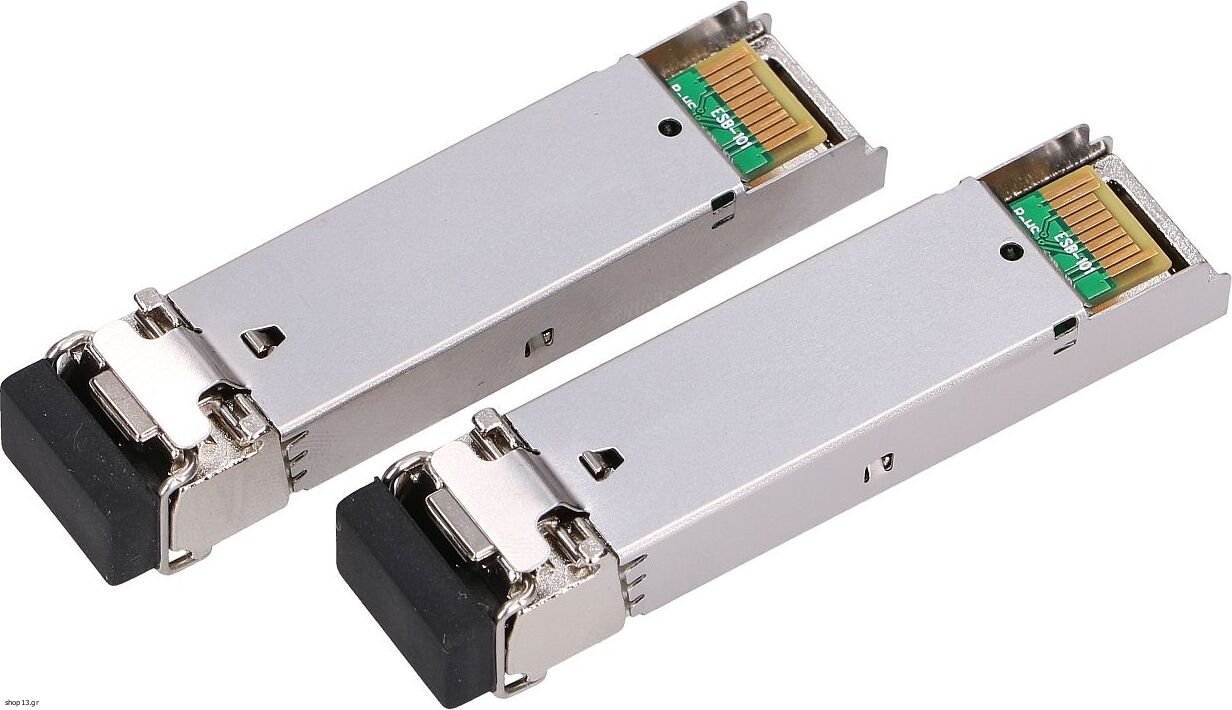

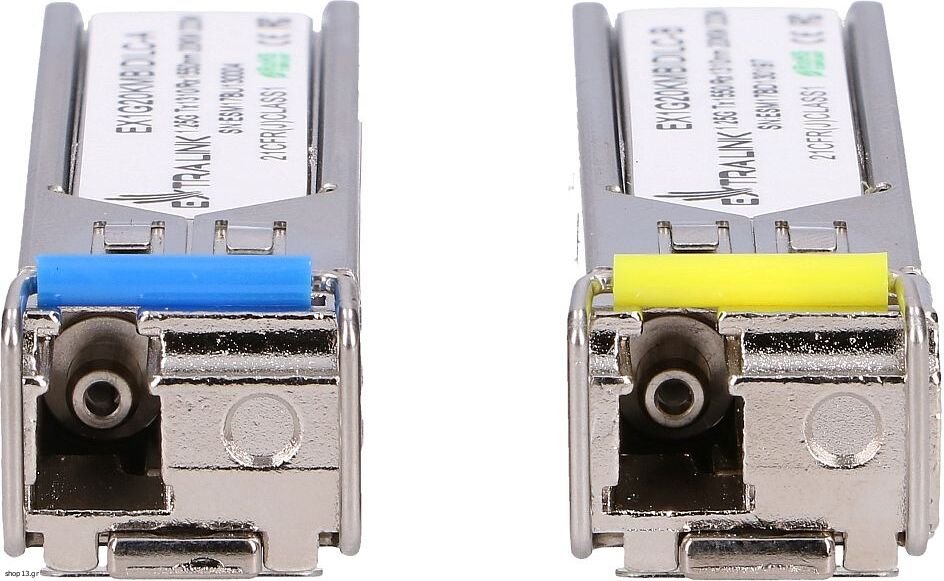

EXTRALINK Sfp Wdm 1.25G 1310/1550nm | Sfp Module | Single mode, 20km, LC, DDM, Pair - (EX.6204)
[Κωδικός : 694182]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Efficient module pair SFP 1.25G BIDI 1310/1550NM 20KM LC DDM
Extralink SFP 1.25G optical transceivers are high-performance, cost-effective fiber optic SFP single-mode modules supporting data transfer rates of 1.25 Gbps/1.0625 Gbps and transmission ranges up to 20 km with SMF. For fiber optic transmission they use single-mode fiber. Extralink SFP 1.25 G operates on alternating wave.
(Tx=1310 nm, Rx=1550 nm). SFP 1.25 G optical module consists of three sections: FP laser transmitter, PIN photodiode integrated with transimpedance preamplifier (TIA) and MCU control unit. All single-mode SFP cartridges meet the safety requirements of a Class I laser.
Single-model SFP inserts for a wide range of applications
SFP 1.25 G optical modules are used in fiber optic channels, Gigabit Ethernet, switch to switch interfaces, switched backplane applications, router/server interfaces and other optical transmission systems.
Special featuresSpecial featuresData rate 1.25 Gbps/1.063 GbpsCompatible with SFP MSA and SFF-8472 with LC socketDigital diagnostic monitoring - internal or external calibrationCompatibility with SONET OC-24-LR-1Compatibility with RoHS DirectiveSingle power supply +3.3 V
Extralink SFP 1.25G optical transceivers are high-performance, cost-effective fiber optic SFP single-mode modules supporting data transfer rates of 1.25 Gbps/1.0625 Gbps and transmission ranges up to 20 km with SMF. For fiber optic transmission they use single-mode fiber. Extralink SFP 1.25 G operates on alternating wave.
(Tx=1310 nm, Rx=1550 nm). SFP 1.25 G optical module consists of three sections: FP laser transmitter, PIN photodiode integrated with transimpedance preamplifier (TIA) and MCU control unit. All single-mode SFP cartridges meet the safety requirements of a Class I laser.
Single-model SFP inserts for a wide range of applications
SFP 1.25 G optical modules are used in fiber optic channels, Gigabit Ethernet, switch to switch interfaces, switched backplane applications, router/server interfaces and other optical transmission systems.
Special featuresSpecial featuresData rate 1.25 Gbps/1.063 GbpsCompatible with SFP MSA and SFF-8472 with LC socketDigital diagnostic monitoring - internal or external calibrationCompatibility with SONET OC-24-LR-1Compatibility with RoHS DirectiveSingle power supply +3.3 V
Χαρακτηριστικά
Μοντέλο
EXTRALINK SFP WDM 1.25G 1310/1550nm
SFP Module
Single mode, 20km, LC, DDM, Pair - (EX.6204)
Σύνολο: 319.64€
