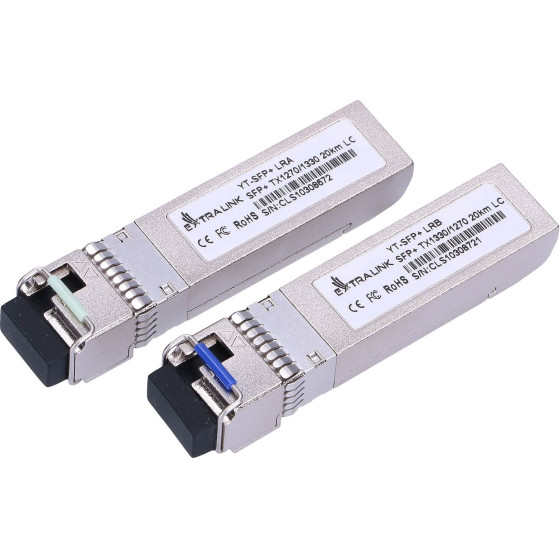

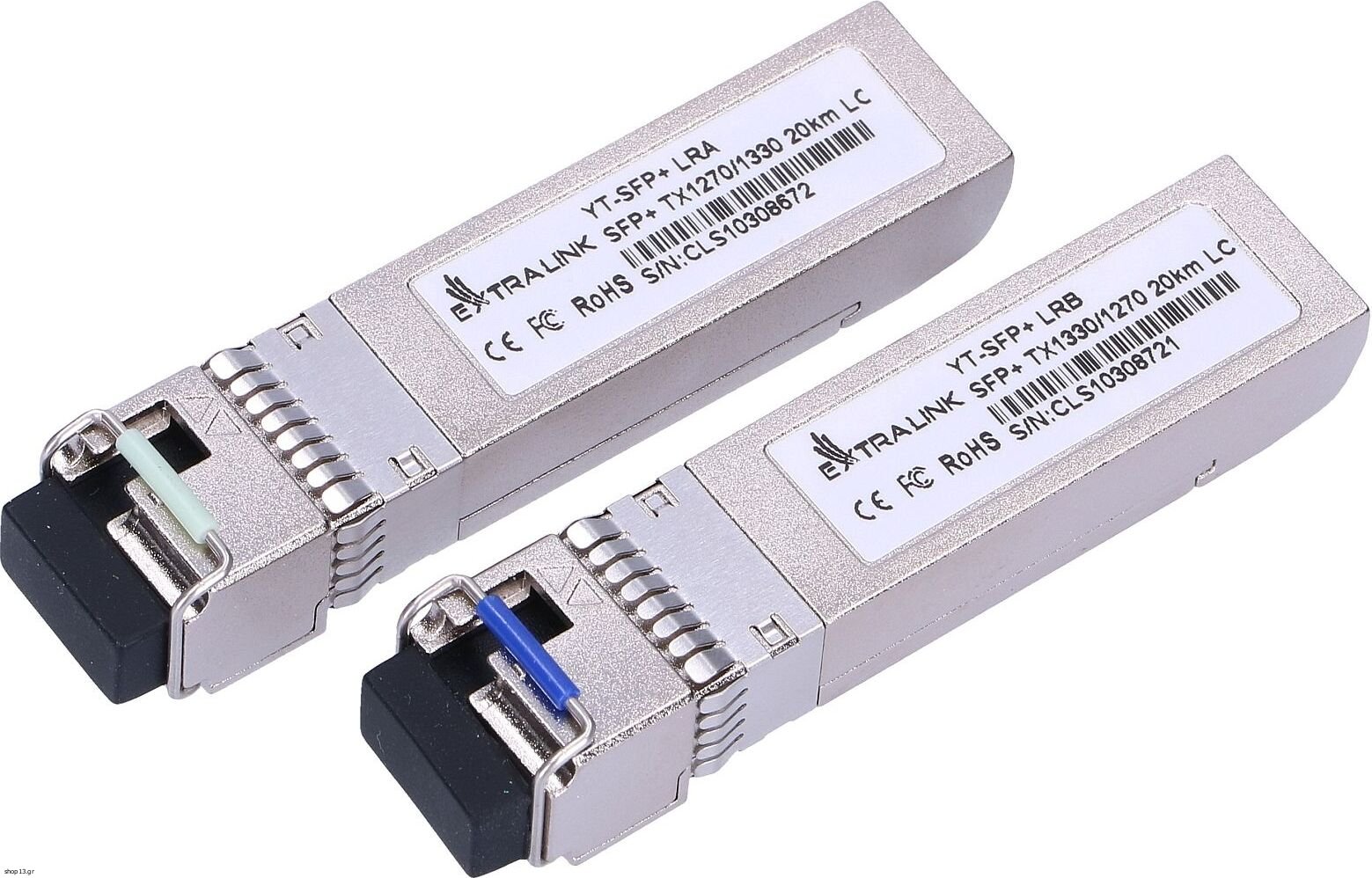

EXTRALINK SFP+ 10G | SFP+ Wdm Module | 10GBps 1270/1330nm, Single mode, 20km, LC, DOM, Pair - (EX.6211)
[Κωδικός : 694202]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
SFP+ 10G WDM 1270/1330NM SM 20KM - a set of economical modules
A set of two SFP single-mode inserts operates bidirectionally on one fiber on waves 1270/1330 nm, over a distance of up to 20 km. The electrical interface of the SFP 10G fiber optic module complies with the SFI electrical specifications. The receiver converts serial optical data at 10 Gbit/s into PECL/CML serial electrical data. The single-mode SFP insert is equipped with a two-wire serial I2C interface for serial identification, digital diagnostics and module control. The improved digital diagnostics monitoring interface allows real time access to the SFP optical module, allowing monitoring of received optical power, laser beam current, laser output power, etc. Single-mode SFP+ modules are dedicated to work with 10 Gbps Ethernet, routers and SONET/SDH switches, 10G/8.5G/4.25G/2.125G/1.0625G optical channels and other 10 Gbps optical links.
Special featuresSpecial featuresElectrical interface compatible with SFF-8431Can be connected without interruptionData links up to 10.7 Gb/sLD transmitter DFB 1270/1330 nmPIN 1270/1330 nm ReceiverLow energy consumptionThe device can be used to connect an SMF 20 kmAll-metal housing for excellent EMI performanceAdvanced firmware enables storage of client system encryption information in the transceiverEconomical SFP+ solution to increase port density and bandwidth
A set of two SFP single-mode inserts operates bidirectionally on one fiber on waves 1270/1330 nm, over a distance of up to 20 km. The electrical interface of the SFP 10G fiber optic module complies with the SFI electrical specifications. The receiver converts serial optical data at 10 Gbit/s into PECL/CML serial electrical data. The single-mode SFP insert is equipped with a two-wire serial I2C interface for serial identification, digital diagnostics and module control. The improved digital diagnostics monitoring interface allows real time access to the SFP optical module, allowing monitoring of received optical power, laser beam current, laser output power, etc. Single-mode SFP+ modules are dedicated to work with 10 Gbps Ethernet, routers and SONET/SDH switches, 10G/8.5G/4.25G/2.125G/1.0625G optical channels and other 10 Gbps optical links.
Special featuresSpecial featuresElectrical interface compatible with SFF-8431Can be connected without interruptionData links up to 10.7 Gb/sLD transmitter DFB 1270/1330 nmPIN 1270/1330 nm ReceiverLow energy consumptionThe device can be used to connect an SMF 20 kmAll-metal housing for excellent EMI performanceAdvanced firmware enables storage of client system encryption information in the transceiverEconomical SFP+ solution to increase port density and bandwidth
Χαρακτηριστικά
Μοντέλο
EXTRALINK SFP+ 10G
SFP+ WDM Module
10Gbps 1270/1330nm, single mode, 20km, LC, DOM, pair - (EX.6211)
Σύνολο: 3293.49€
