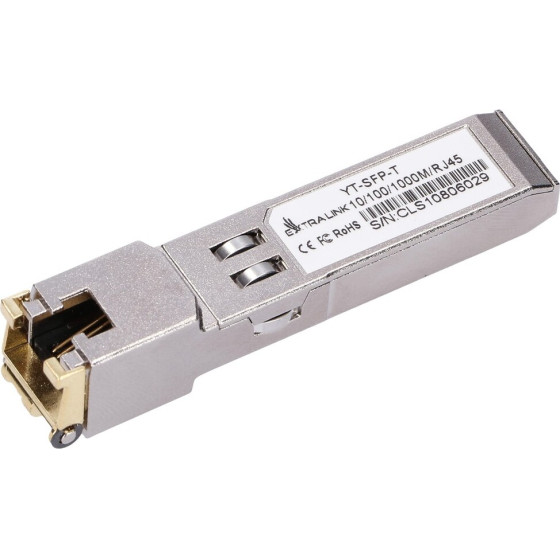

EXTRALINK Sfp 1.25G | Sfp To RJ45 Module | 1,25Gbps, 1000BASE-T, 100m, Dedicated For HP/Aruba - (EX.15081)

Economical SFP module RJ45 1.25G dedicated for HP/Arub
Extralink SFP RJ45 with a throughput of 1000 Mb/s is a powerful, cost-effective module that complies with Gigabit Ethernet and 1000-BASE-T standards as defined in IEEE 802. 3-2002 and IEEE 802.3ab. The SFP RJ45 cartridge supports a data transfer rate of 1000 Mb/s over a maximum distance of to 100 meters for category 5 Ethernet cable. The SFP RJ45 module supports full duplex data links with a throughput of 1000 Mbps with 5-level Pulse Amplitude Modulation (PAM). All four pairs in the cable are used at a symbolic rate of 250 Mbps for each pair. Extralink SFP RJ45 provides standard serial ID information, compliant with SFP MSA, which can be accessed via the A0h address via 2-wire CMOS EEPROM serial protocol. The physical IC can also be accessed via the 2-wire serial bus at the A0h address. The SFP RJ45 insert is compatible with most Gigabit SFP ports on network devices. The SFP Ethernet module's all-metal housing makes it a low EMI device. Presented cartridge is designed for HP/Arub devices.
Special featuresSpecial featuresTwo-way data links with data rates up to 1.25 Gb/sConnecting the SFP without switching off the unitWide temperature range of the housing from 0°C to 70°CAll-metal housing for low EMILow power dissipation, typically 1.05 WCompact RJ-45 connector assemblyAccess to the physical layer IC via the two-wire serial bus1000BASE-T operation in host systems with SERDES interface10/100/1000 Mbps compatibility in host systems with SGMII interfaceCompatible with HP/Arub
