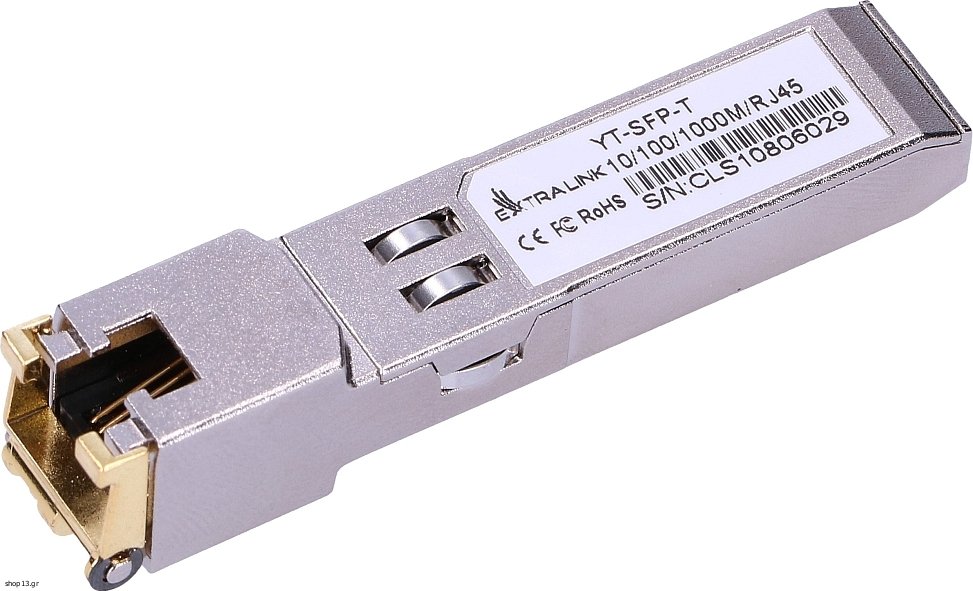

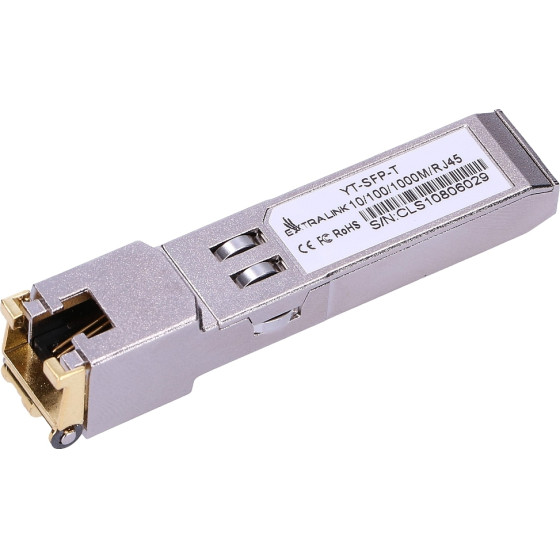

EXTRALINK Sfp 1.25G | Sfp To RJ45 Module | 1,25Gbps, 100/1000BASE-T, 100m - (EX.2251)
[Κωδικός : 694174]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Extralink's cost-effective SFP RJ45 1.25G 100M module
The Extralink SFP RJ45 module with a throughput of 1000 Mb/s is a powerful and cost-effective device that complies with Gigabit Ethernet and 1000-BASE-T standards defined by IEEE 802. 3-2002 and IEEE 802.3ab. The SFP RJ45 cartridge supports a data rate of 1000 Mbps at to 100 meters for Category 5 Ethernet cable and a 1000 Mbps full duplex data link with 5-level pulse amplitude modulation (PAM). All four pairs in the cable are used with a symbolic speed of 250 Mbps for each pair. Extralink SFP RJ45 provides standard serial ID information in accordance with SFP MSA, which can be accessed with A0h address via 2-wire CMOS EEPROM serial protocol. The physical IC can also be accessed via the 2-wire serial bus at the address A0h. The SFP RJ45 module is compatible with most Gigabit SFP ports on network devices. The device has a fully metallic housing and therefore low EMI.
Special featuresSpecial featuresTwo-way data links with data rates up to 1.25 Gb/sConnecting the SFP without switching off the unitWide temperature range of the housing (0°C to 70°C)All-metal housing for low EMILow power dissipation (typically 1.05 W)Compact RJ-45 connector assembly Access to the physical layer IC via the two-wire serial bus1000 BASE-T operation in host systems with SERDES interface10/100/1000 Mbps compatibility in host systems with SGMII interface
The Extralink SFP RJ45 module with a throughput of 1000 Mb/s is a powerful and cost-effective device that complies with Gigabit Ethernet and 1000-BASE-T standards defined by IEEE 802. 3-2002 and IEEE 802.3ab. The SFP RJ45 cartridge supports a data rate of 1000 Mbps at to 100 meters for Category 5 Ethernet cable and a 1000 Mbps full duplex data link with 5-level pulse amplitude modulation (PAM). All four pairs in the cable are used with a symbolic speed of 250 Mbps for each pair. Extralink SFP RJ45 provides standard serial ID information in accordance with SFP MSA, which can be accessed with A0h address via 2-wire CMOS EEPROM serial protocol. The physical IC can also be accessed via the 2-wire serial bus at the address A0h. The SFP RJ45 module is compatible with most Gigabit SFP ports on network devices. The device has a fully metallic housing and therefore low EMI.
Special featuresSpecial featuresTwo-way data links with data rates up to 1.25 Gb/sConnecting the SFP without switching off the unitWide temperature range of the housing (0°C to 70°C)All-metal housing for low EMILow power dissipation (typically 1.05 W)Compact RJ-45 connector assembly Access to the physical layer IC via the two-wire serial bus1000 BASE-T operation in host systems with SERDES interface10/100/1000 Mbps compatibility in host systems with SGMII interface
Χαρακτηριστικά
Μοντέλο
