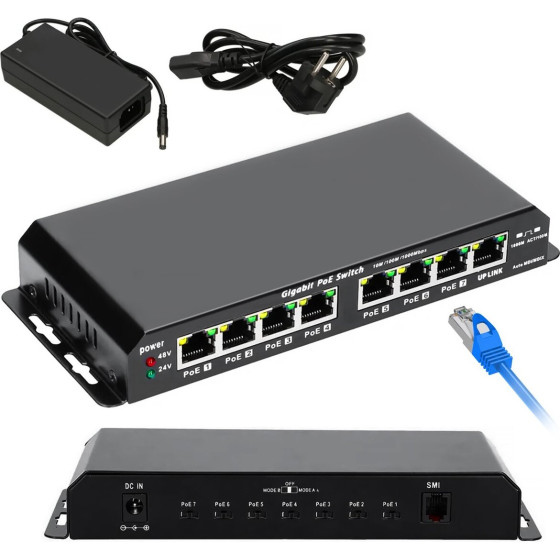

Extralink KRATOS - 8 port switch with 7 PoE ports
EXTRALINK KRATOS combines a small, high performance 8-port switch with 10/100/1000Mb/s throughput with 7 PoE ports. The switch uses an external power supply with a voltage range from 18V to 57V. All 7 PoE ports, using standard Cat 5/5e/6 Ethernet cables, can provide power up to 30W and data transmission at 1000Mbps -.
Power over Ethernet
The KRATOS switch allows you to transfer data and power to the connected devices with one Ethernet cable. It is a power supply device and is compatible with devices that meet the requirements of the Passive PoE standard, which allows users to connect to the PoE switch: wireless access points, VOIP phones, IP cameras, etc., without the need for additional power supply.
Main features:Main features:8 ports 10/100/1000Mbps, ports 1-7 with PoE capability24V power supply 60W included, possibility of using a power supply up to 57VPorts 1-7 have the ability to power PoE in two different modes: Mode A - power and data on contacts 1/2 (-) and 3/6 (+), Mode B - power on contacts 4/5 (+) and 7/8 (-) with data on contacts 1/2 and 3/6.Dual PTC fuses on each PoE output port: 650mA per port for Mode A, 1000mA per port for Mode B2 x 2.1 mm jack type power connectorLED for operation at 24V or 48VMaximum input current - 2,5 A1x Uplink port 10/100/1000Mbps, no PoE voltage at output , Auto MDI/MDIX
