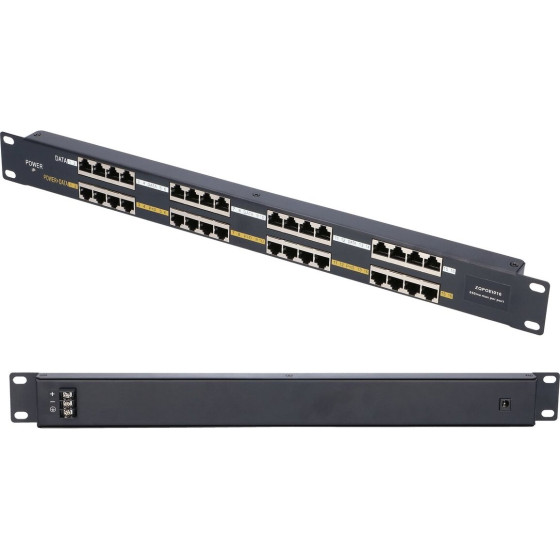

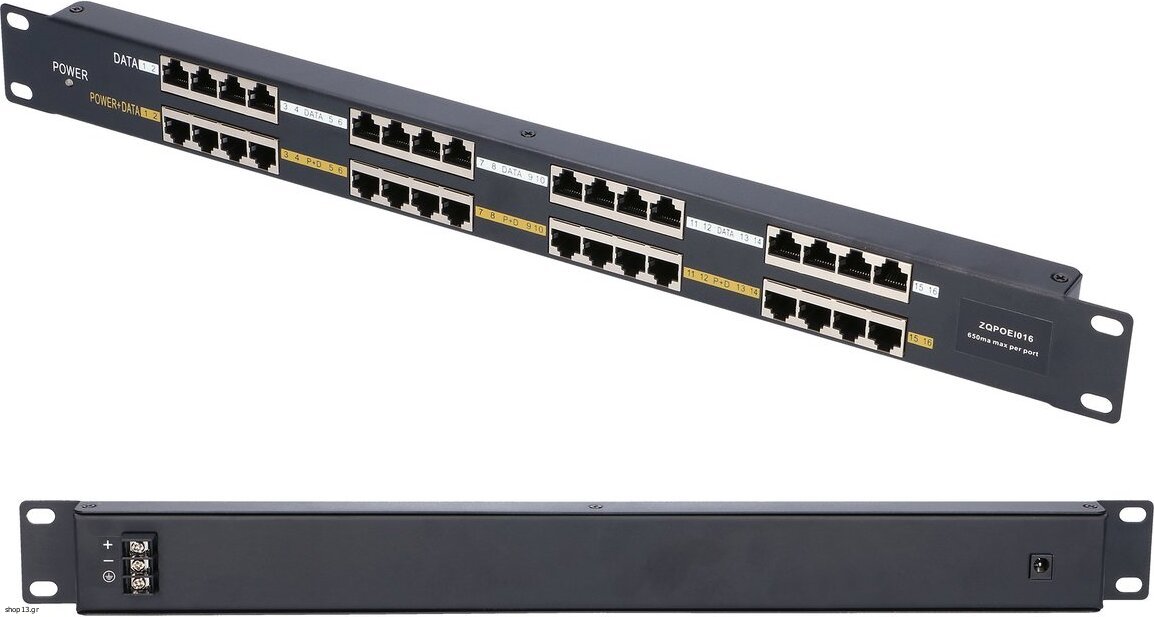

EXTRALINK 16 Port | Poe Injector | 16x 100Mb/s RJ45, Rackmount - (EX.1995)

PoE injector power strip, 16 ports - robust power system

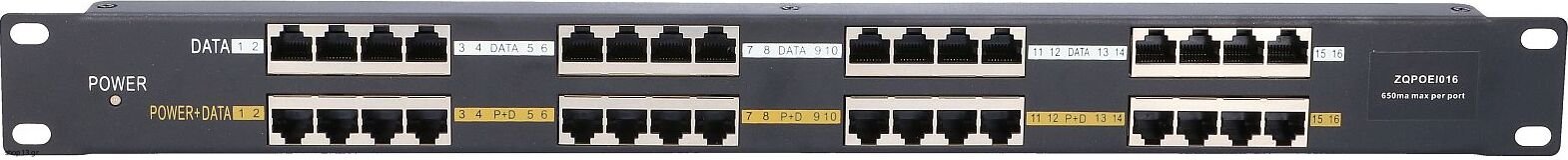

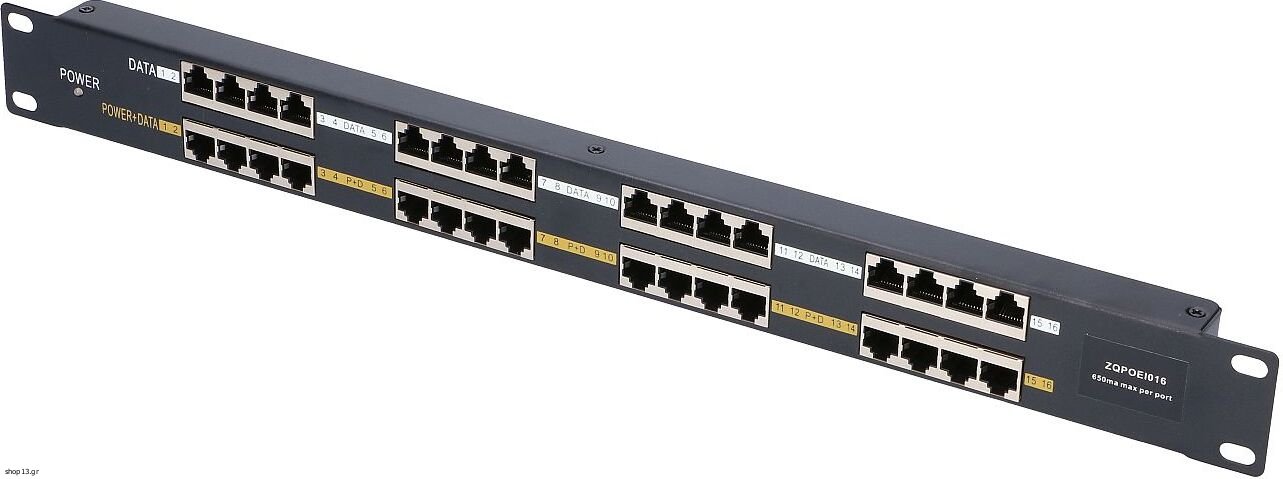

Extralink's power supply bar has 16 ports with a throughput of 10/100 Mbit/s. The upper RJ45 sockets are LAN/switch/PC ports, where pins 1/2 and 3/6 are used for data transfer. Sockets located below are ports for both data and power supply, where pins 1/2 and 3/6 are used for data transmission, while pins 4/5 (+) and 7/8 (-) for power supply. The size of the power strip: 1U (height), 19" (width) and 25 mm (thickness).
FeaturesFeatures16 10/100 M Ethernet ports650 mA automatic fuse on each portPower supply from 24 V to 57 VFor mounting in a 19'' rack
