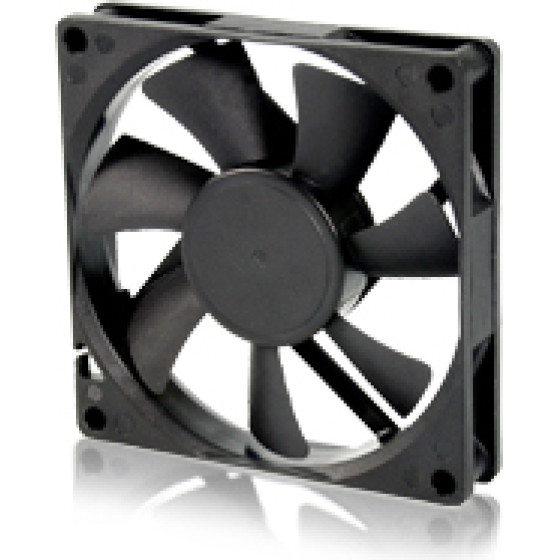

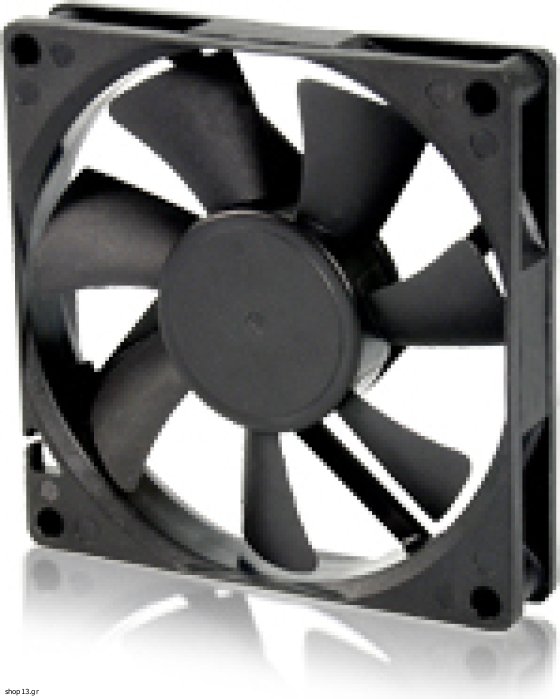

Evercool Fan 80x80x15 5V EL (2500 RPM) - (EC8015M05EA)

DC Fan Product
Model Type : EC-8015xxxx Dimension : 80 x 80 x 15 mm

Voltage
5V
12V
24V

V
V
Fan Speed
LL
L
M
H
HH
TH
1500
2000
2500
3000
3500
4000
Certificate
UL
CE
TUV
V
V
V
Bearing Type
Sleeve
1Ball
2Ball
EL
V
V
V
V



P&Q Curve / Dimensions Drawing





Model Number System




Specifications

Please read cataloge firstly !
Model
Voltage
VDC
Current
AMP
Input
WATTS
Fan Speed
RPM
AirFlow
CFM
Pressure
lnch-H2O
Noise
dBA
EC8015TH12X
12
0.3
3.6
4000
43.46
0.19
<40
EC8015HH12X
12
0.25
3
3500
37.1
0.15
<35
EC8015H12X
12
0.2
2.4
3000
31.51
0.11
<32
EC8015M12X
12
0.16
1.92
2500
23.67
0.07
<26
EC8015L12X
12
0.14
1.68
2000
20.85
0.05
<20
EC8015LL12X
12
0.08
0.96
1500
14.84
0.03
<13.8
EC8015HH24X
24
0.13
3.12
3500
37.1
0.15
<35
EC8015H24X
24
0.11
2.64
3000
31.51
0.11
<32
EC8015M24X
24
0.09
2.16
2500
23.67
0.07
<26
EC8015L24X
24
0.07
1.68
2000
20.85
0.05
<20


E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
o Material:impeller&Frame:Plastic(UL 94V-0)
o Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
o Function type is optional.
o The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
o Noise is measured in anechoic chamber in free air,one meter from intake side.
o All readings are typical values at rated voltage.
o Specifications are subject to change without notice.
o Additional special function may be added according the requirement of customer.

MANUFACTURER: Evercool
DIMENTIONS(mm): 80 x 80 x 15 mm
RPM: 2500 RPM
VOLTAGE: 5 V DC
BEARING TYPE: EL Bearing
AIRFLOW: 23.67 CFM / 40.22 m3/h
AMPERES (A): 0.38 A
COMSUMPTION(W): 1.92 W
NOISE LEVEL: <26 dBA
CONNECTOR: 3 pin
LIFE IN HOURS: 40000
