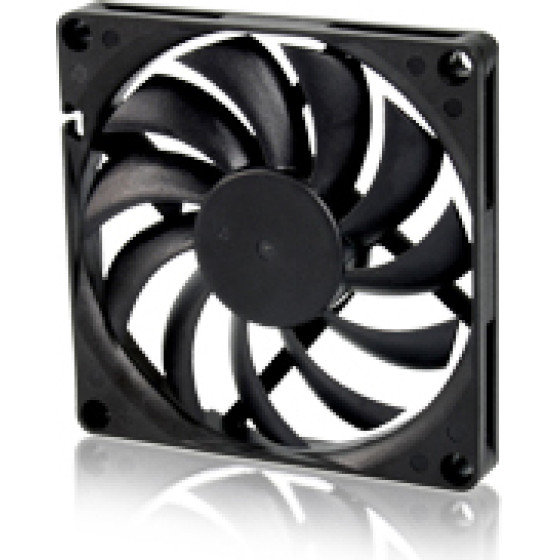

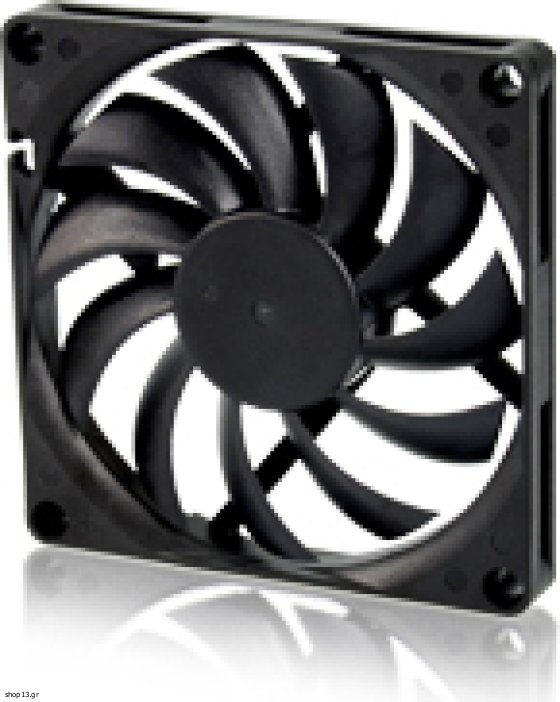

Evercool Fan 80x80x10 EL Bearing (3000 RPM) - (EC8010M12EA)

DC Fan Product

Model Type : EC-8010xxxx Dimension : 80 x 80 x 10 mm

Voltage
5V
12V
24V
V
V

Fan Speed
LL
L
M
H
HH
2000
2500
3000
3500
4000
Certificate
UL
CE
TUV
V
V
V
Bearing Type
Sleeve
1Ball
2Ball
EL
V
V
V
V



P&Q Curve / Dimensions Drawing


Model Number System





Specifications

Please read cataloge firstly !

Model
Voltage
VDC
Current
AMP
Input
WATTS
Fan Speed
RPM
AirFlow
CFM
Pressure
lnch-H2O
Noise
dBA
EC8010H05X
5
0.65
3.25
3500
24.71
0.06
<30.6
EC8010M05X
5
0.5
2.5
3000
22.44
0.05
<27.3
EC8010L05X
5
0.28
1.4
2500
18
0.03
<23.3
EC8010LL05X
5
0.26
1.3
2000
14.32
0.02
<22
EC8010HH12X
12
0.32
3.84
4000
28.24
0.08
<33.5
EC8010H12X
12
0.26
3.12
3500
24.71
0.06
<30.6
EC8010M12X
12
0.2
2.4
3000
22.44
0.05
<27.3
EC8010L12X
12
0.16
1.92
2500
18
0.03
<23.3
EC8010LL12X
12
0.12
1.44
2000
14.32
0.02
<22


E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing

o Material:impeller&Frame:Plastic(UL 94V-0)
o Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
o Function type is optional.
o The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
o Noise is measured in anechoic chamber in free air,one meter from intake side.
o All readings are typical values at rated voltage.
o Specifications are subject to change without notice.
o Additional special function may be added according the requirement of customer.

MANUFACTURER: Evercool
DIMENTIONS(mm): 80 x 80 x 10 mm
RPM: 3000 RPM
VOLTAGE: 12 V DC
BEARING TYPE: EL Bearing
AIRFLOW: 22.44 CFM / 38.13 m3/h
AMPERES (A): 0.2 A
COMSUMPTION(W): 2.4 W
NOISE LEVEL: <27.3 dBA
CONNECTOR: 3 pin
LIFE IN HOURS: 40000
