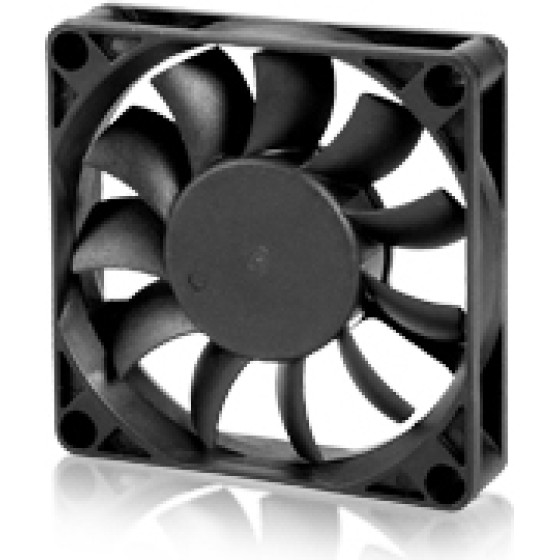

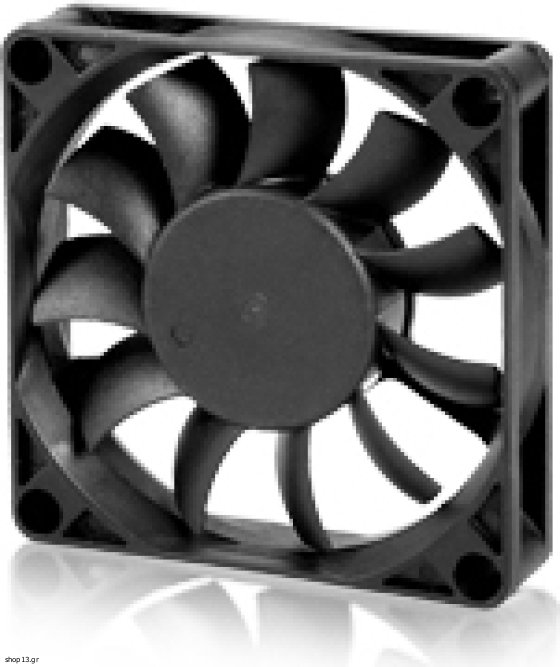

Evercool Fan 70x70x15 5V EL (3000 RPM) - (EC7015L05EA)

DC Fan Product
Model Type : EC-7015xxxx Dimension : 70 x 70 x 15 mm

Voltage
5V
12V
24V
V
V
V
Fan Speed
XL
SL
LL
L
M
H
HH
1500
2000
2500
3000
3500
4000
4500
Certificate
UL
CE
TUV
V
V
V
Bearing Type
Sleeve
1Ball
2Ball
EL
V
V
V
V



P&Q Curve / Dimensions Drawing





Model Number System




Specifications

Please read cataloge firstly !
Model
Voltage
VDC
Current
AMP
Input
WATTS
Fan Speed
RPM
AirFlow
CFM
Pressure
lnch-H2O
Noise
dBA
EC7015H05X
5
0.45
2.25
4000
34.05
0.18
<37
EC7015M05X
5
0.4
2
3500
29.58
0.14
<34
EC7015L05X
5
0.3
1.5
3000
25.19
0.11
<30
EC7015LL05X
5
0.2
1
2500
20.83
0.07
<28
EC7015SL05X
5
0.14
0.7
2000
16.67
0.05
<23.2
EC7015XL05X
5
0.12
0.6
1500
12.5
0.03
<16.9
EC7015HH12X
12
0.34
4.08
4500
34.83
0.21
<40
EC7015H12X
12
0.3
3.6
4000
34.05
0.18
<37
EC7015M12X
12
0.26
3.12
3500
29.58
0.14
<34
EC7015L12X
12
0.22
2.64
3000
25.19
0.11
<30
EC7015LL12X
12
0.16
1.92
2500
20.83
0.07
<28
EC7015SL12X
12
0.1
1.2
2000
16.67
0.05
<23.2
EC7015H24X
24
0.26
6.24
4000
34.05
0.18
<37
EC7015M24X
24
0.22
5.28
3500
29.58
0.14
<34
EC7015L24X
24
0.18
4.32
3000
25.19
0.11
<30
EC7015LL24X
24
0.1
2.4
2500
20.83
0.07
<28


E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
o Material:impeller&Frame:Plastic(UL 94V-0)
o Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
o Function type is optional.
o The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
o Noise is measured in anechoic chamber in free air,one meter from intake side.
o All readings are typical values at rated voltage.
o Specifications are subject to change without notice.
o Additional special function may be added according the requirement of customer.

MANUFACTURER: Evercool
DIMENTIONS(mm): 70 x 70 x 15 mm
RPM: 3000 RPM
VOLTAGE: 5 V DC
BEARING TYPE: EL Bearing
AIRFLOW: 25.19 CFM / 42.8 m3/h
AMPERES (A): 0.3 A
COMSUMPTION(W): 1.5 W
NOISE LEVEL: <30 dBA
CONNECTOR: 3 pin
LIFE IN HOURS: 40000
