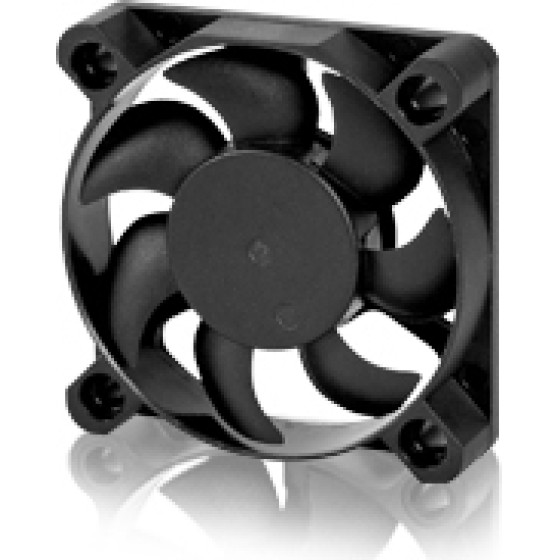

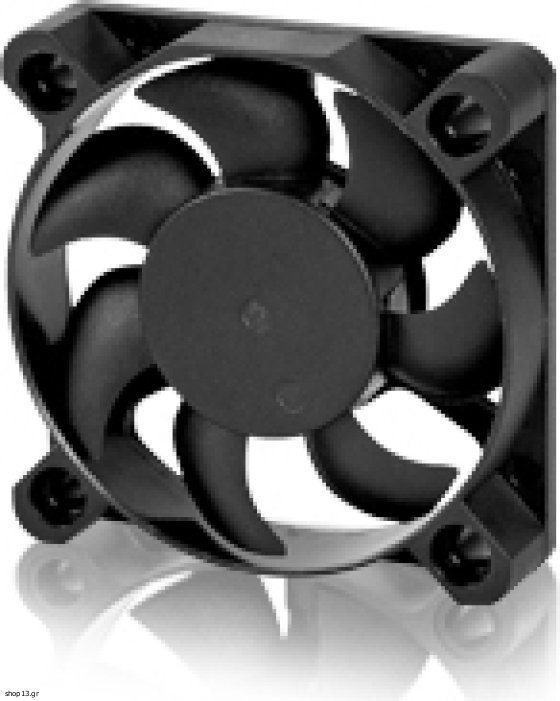

Evercool Fan 50x50x10 5V EL (4500RPM) - (EC5010M05EA)

DC Fan Product
Model Type : EC-5010xxxx Dimension : 50 x 50 x 10 mm

Voltage
5V
12V
24V

V
V
Fan Speed
LL
L
M
H
HH
SH
3500
4000
4500
5000
5500
6000
Certificate
UL
CE
TUV
V
V
V
Bearing Type
Sleeve
1Ball
2Ball
EL
V
V
V
V



P&Q Curve / Dimensions Drawing




Model Number System




Specifications

Please read cataloge firstly !
Model
Voltage
VDC
Current
AMP
Input
WATTS
Fan Speed
RPM
AirFlow
CFM
Pressure
lnch-H2O
Noise
dBA
EC5010TH05X
5
0.28
1.4
6000
10.71
0.15
<29
EC5010HH05X
5
0.25
1.25
5500
10.07
0.13
<27
EC5010H05X
5
0.22
1.1
5000
8.84
0.11
<25
EC5010M05X
5
0.19
0.95
4500
8.63
0.1
<23
EC5010L05X
5
0.16
0.8
4000
8.08
0.09
<20
EC5010TH12X
12
0.16
1.92
6000
10.71
0.15
<29
EC5010HH12X
12
0.14
1.56
5500
10.07
0.13
<27
EC5010H12X
12
0.12
1.44
5000
8.84
0.11
<25
EC5010M12X
12
0.09
1.08
4500
8.63
0.1
<23
EC5010L12X
12
0.07
0.84
4000
8.08
0.09
<20
EC5010LL12X
12
0.06
0.72
3500
7.07
0.07
<17.26


E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
o Material:impeller&Frame:Plastic(UL 94V-0)
o Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
o Function type is optional.
o The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
o Noise is measured in anechoic chamber in free air,one meter from intake side.
o All readings are typical values at rated voltage.
o Specifications are subject to change without notice.
o Additional special function may be added according the requirement of customer.




MANUFACTURER: Evercool
DIMENTIONS(mm): 50 x 50 x 10 mm
RPM: 4500 RPM
VOLTAGE: 5 V DC
BEARING TYPE: EL Bearing
AIRFLOW: 8.63 CFM / 14.66 m3/h
AMPERES (A): 0.19 A
COMSUMPTION(W): 0.95 W
NOISE LEVEL: <23 dBA
CONNECTOR: 3 pin
LIFE IN HOURS: 40000
