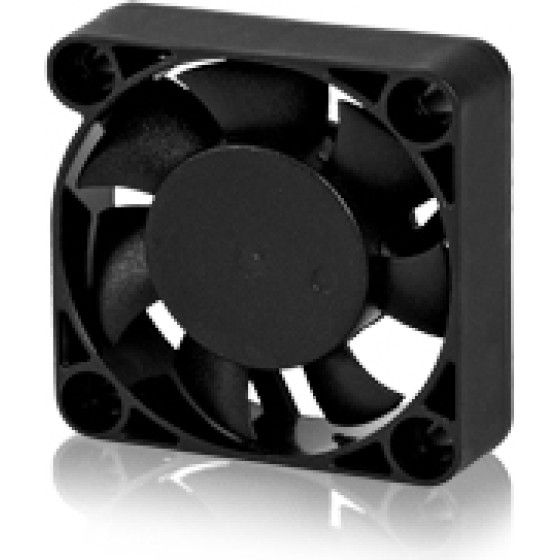

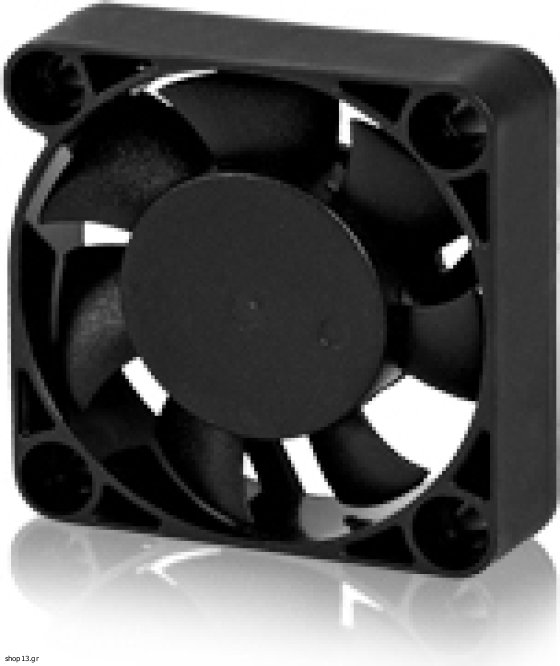

Evercool Fan 40x40x10 EL Bearing (4000 RPM) - (EC4010LL12EA)

DC Fan Product
Model Type: EC-4010xxxx Dimension : 40 x 40 x 10 mm

Voltage
5V
12V
24V
V
V

Fan Speed
LL
L
M
H
HH
SH
4000
4500
5000
5500
6000
6500
Certificate
UL
CE
TUV
V
V
V
Bearing Type
Sleeve
1Ball
2Ball
EL
V
V
V
V



P&Q Curve / Dimensions Drawing




Model Number System




Specifications

Please read cataloge firstly !
Model
Voltage
VDC
Current
AMP
Input
WATTS
Fan Speed
RPM
AirFlow
CFM
Pressure
lnch-H2O
Noise
dBA
EC4010SHH05X
5
0.18
0.9
6000
6.24
0.15
<25
EC4010H05X
5
0.14
0.7
5500
5.75
0.13
<23
EC4010M05X
5
0.12
0.6
5000
5.22
0.1
<21
EC4010L05X
5
0.1
0.5
4500
2.71
0.09
<19
EC4010LL05X
5
0.08
0.4
4000
2.5
0.08
<17
EC4010TH12X
12
0.12
1.44
6500
6.64
0.16
<26
EC4010SHH12X
12
0.1
1.2
6000
6.24
0.15
<25
EC4010H12X
12
0.08
0.96
5500
5.57
0.13
<23
EC4010M12X
12
0.07
0.84
5000
5.22
0.1
<21
EC4010L12X
12
0.05
0.6
4500
2.71
0.09
<19
EC4010LL12X
12
0.04
0.48
4000
2.5
0.08
<17


E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
o Material:impeller&Frame:Plastic(UL 94V-0)
o Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
o Function type is optional.
o The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
o Noise is measured in anechoic chamber in free air,one meter from intake side.
o All readings are typical values at rated voltage.
o Specifications are subject to change without notice.
o Additional special function may be added according the requirement of customer.


MANUFACTURER: Evercool
DIMENTIONS(mm): 40 x 40 x 10 mm
RPM: 4000 RPM
VOLTAGE: 12 V DC
BEARING TYPE: EL Bearing
AIRFLOW: 2.5 CFM / 4.25 m3/h
AMPERES (A): 0.04 A
COMSUMPTION(W): 0.48 W
NOISE LEVEL: <17 dBA
CONNECTOR: 3 pin
LIFE IN HOURS: 40000
