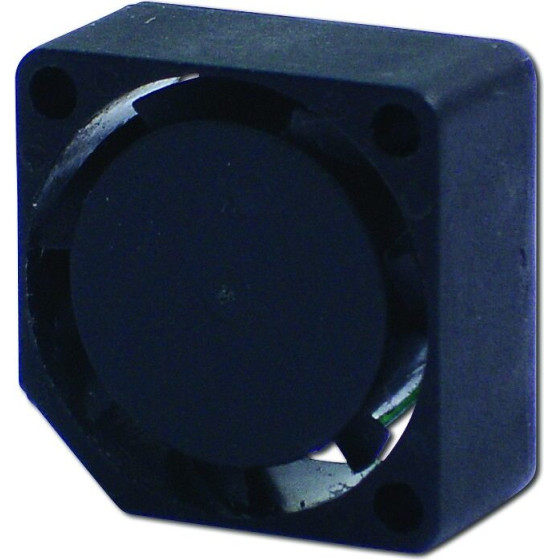

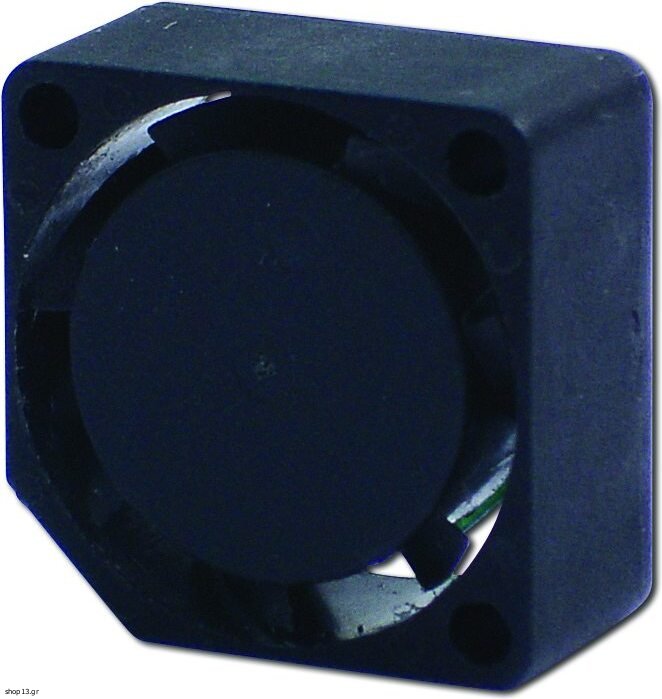

Evercool Fan 20x20x8 1Ball (5V, 11000RPM) - (EC2008M05CA)

P&Q Curve / Dimensions Dreawing

Model Number System

Specifications


















Model
Voltage
VDC
Current
AMP
Input
WATTS
Fan Speed
RPM
AirFlow
CFM
Pressure
lnch-H2O
Noise
dBA
































EC2008M05C
5
0.16
0.8
11000
0.95
0.06
<21.3















































C - One ball One sleeve bearing o
Material:impeller&Frame:Plastic(UL 94V-0)
o Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
o Function type is optional.
o The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
o Noise is measured in anechoic chamber in free air,one meter from intake side.
o All readings are typical values at rated voltage.
o Specifications are subject to change without notice.
o Additional special function may be added according the requirement of customer.
※ If any fan requests,please do no hesitate to contact us.




















































































































MANUFACTURER: Evercool
DIMENTIONS(mm): 20 x 20 x 8 mm
RPM: 11000 RPM
VOLTAGE: 5 V DC
BEARING TYPE: Ball Bearing
AIRFLOW: 0.95 CFM / 1.61 m3/h
AMPERES (A): 0.16 A
COMSUMPTION(W): 0.8 W
NOISE LEVEL: <21.3 dBA
CONNECTOR: 3 pin
LIFE IN HOURS: 40000
