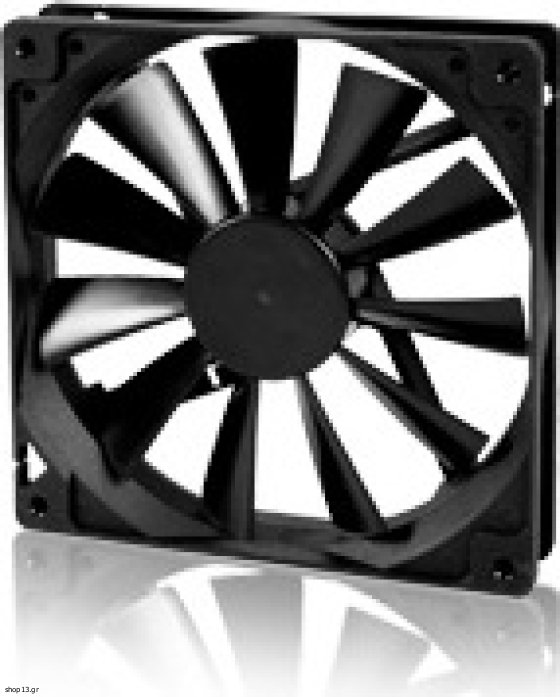

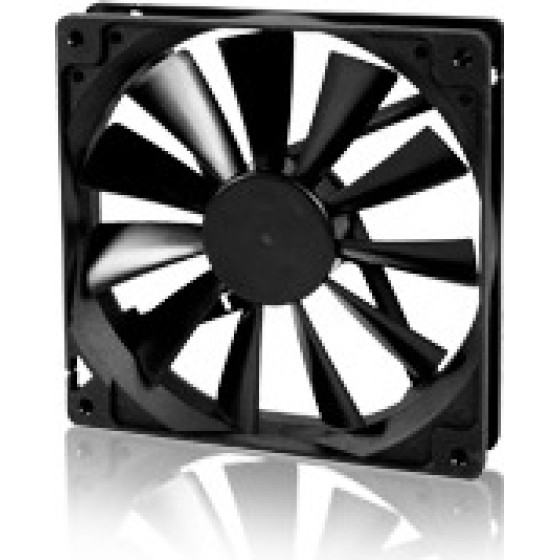

Evercool Fan 140x140x25 2Ball (900 RPM) - (EC14025LL12BA)

DC Fan Product
Model Type : EC-14025 xxxx Dimension : 140 x 140 x 25 mm

Voltage
5V
12V
24V

V

Fan Speed
SL
LL
L
M
H
600
900
1200
1500
1800
Certificate
UL
CE
TUV
V
V
V
Bearing Type
Sleeve
1Ball
2Ball
EL
V
V
V
V



P&Q Curve / Dimensions Drawing




Model Number System




Specifications

Please read cataloge firstly !
Model
Voltage
VDC
Current
AMP
Input
WATTS
Fan Speed
RPM
AirFlow
CFM
Pressure
lnch-H2O
Noise
dBA
EC14025H12X
12
0.72
8.64
1800
113.87
0.09
<30.9
EC14025M12X
12
0.45
5.4
1500
94.89
0.06
<26.9
EC14025L12X
12
0.28
3.36
1200
68.23
0.03
<22.1
EC14025LL12X
12
0.18
2.16
900
56.74
0.02
<15.8
EC14025SL12X
12
0.1
1.2
600
38.58
0.01
<7


E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
o Material:impeller&Frame:Plastic(UL 94V-0)
o Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
o Function type is optional.
o The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
o Noise is measured in anechoic chamber in free air,one meter from intake side.
o All readings are typical values at rated voltage.
o Specifications are subject to change without notice.
o Additional special function may be added according the requirement of customer.

MANUFACTURER: Evercool
DIMENTIONS(mm): 140 x 140 x 25 mm
RPM: 900 RPM
VOLTAGE: 12 V DC
BEARING TYPE: 2 Ball Bearing
AIRFLOW: 56.74 CFM / 96.4 m3/h
AMPERES (A): 0.18 A
COMSUMPTION(W): 2.16 W
NOISE LEVEL: <15.8 dBA
CONNECTOR: 3 pin
LIFE IN HOURS: 50000
