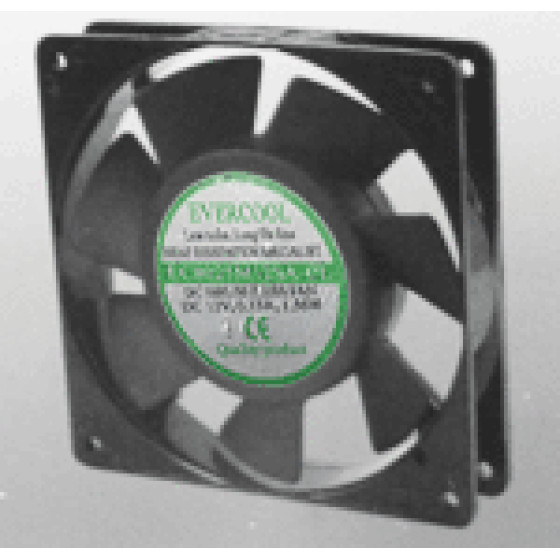

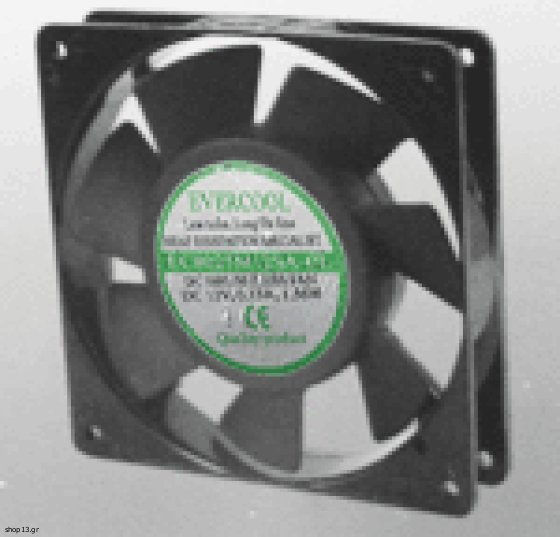

Evercool Fan 120x120x25 230V AC 2Ball Bearing 2500RPM - (EC12025A2HBL)

Model Type: EC-1225xx
Dimension : 120 x 120 x 25 mm

Pressure enduance
1800VAC / for 2 seconds strill functioning
Insulation
500VDC less than 100M W
Temperature
0-80°C(sleeve bearing) -10 °C-90°C (ball bearing)
Fan temperature
Lowerthan 85°C
Fan Material
PBT94ULVblack
Outer casing
Aluminum alloy
Deviation rate
Current±0.02;power±10%; rotation rate-10%; wind rate-15%



TYPE
ADD .NO.
V
HZ
A
W
RPM

CFM
Inch-H2O
DBA
G
EC1225A2
HBL / T
220/240
50/60
0.09/0.075
16/13
2350/2600
73/88
0.26/0.29
46/48
350G
EC1225A1
110/120
0.14/0.12
12/10
EC1225A2
HSL / T
220/240
50/60
0.09/0.08
16/14
2200/2300
65/81
0.21/0.24
42/44
350G
EC1225A1
110/120
0.14/0.12
9.5/8.5
EC1225A1
MBL / T
110/120
50/60
0.11/0.10
10/9
2100/2200
62/79
0.20/0.22
40/42
350G
EC1225A2
220/240
0.07/0.06
12/11
EC1225A1
MSL / T
110/120
50/60
0.12/0.11
11/10
2100/2200
62/79
0.20/0.22
40/42
350G
EC1225A2
220/240
0.07/0.06
12/11
EC1225A1
LBL / T
110/120
50/60
0.09/0.08
8/7
1800/2000
51/64
0.15/0.18
37/39
350G
EC1225A2
220/240
0.05/0.04
9/8
EC1225A1
LSL / T
110/120
50/60
0.10/0.09
9/8
1800/2000
51/64
0.15/0.18
37/39
350G
EC1225A2
220/240
0.07/0.06
13/12



MANUFACTURER: Evercool
DIMENTIONS(mm): 120 x 120 x 25 mm
RPM: 2500 RPM
VOLTAGE: 220 V AC
BEARING TYPE: 2 Ball Bearing
AIRFLOW: 88 CFM / 149.51 m3/h
AMPERES (A): 0.09 A
COMSUMPTION(W): 20.7 W
NOISE LEVEL: <46 dBA
CONNECTOR: 2 bare wire
LIFE IN HOURS: 50000
OTHERS: Aluminum body
