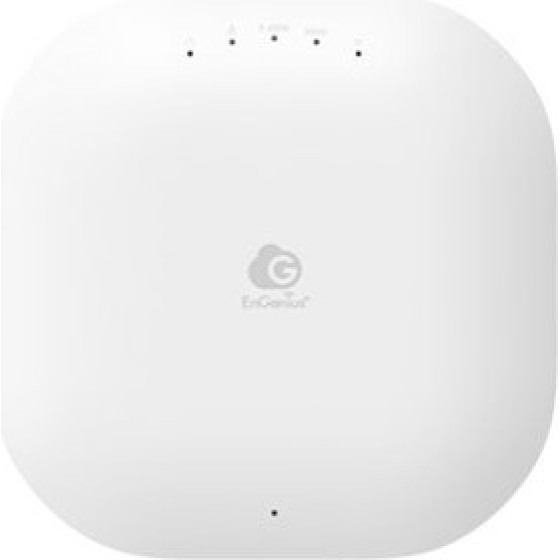

ENGENIUS Cloud5 2x2 - (ECW120)
[Κωδικός : 759798]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Features
Virtual LAN features: Tagged VLAN
Fit AP mode features: Mesh networking
Maximum data transfer rate (5 GHz): 867 Mbit/s
Maximum data transfer rate (2.4 GHz): 400 Mbit/s
MIMO type: Multi User MIMO
VLAN support: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Networking standards: IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.11a, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.11ac, IEEE 802.3af, IEEE 802.11b
Ethernet LAN data rates: 10, 1000 Mbit/s, 100
Frequency band: 2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
5 GHz: Yes
Maximum data transfer rate: 867 Mbit/s
Spread spectrum method: DSSS, OFDM
Transmitting power: 23 dBmW
2.4 GHz: Yes
MIMO: Yes
Modulation: 64-QAM, 16-QAM, BPSK, CCK, QPSK, 256-QAM
Quality of Service (QoS) support: Yes
Design
Placement: Ceiling, Wall
Reset button: Yes
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
LED indicators: Yes
Power
Power consumption (max): 12 W
Power over Ethernet (PoE): Yes
Security
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 8
MAC address filtering: Yes
Security algorithms: SSH, 152-bit WEP, WPA, 128-bit WEP, WPA-TKIP, WPA-AES, WPA-EAP, 64-bit WEP, WPA2
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 80 °C
Weight & dimensions
Width: 161.5 mm
Depth: 161.5 mm
Height: 41.5 mm
Weight: 362.8 g
Packaging content
Quick start guide: Yes
Mounting kit: Yes
AC adapter included: Yes
Protocols
Management protocols: SNMP
Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Antenna
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antenna gain level (max): 5 dBi
Antennas quantity: 2
Antenna type: Internal
Logistics data
Harmonized System (HS) code: 85176990
Warranty: Manufacturer warranty 24 months
