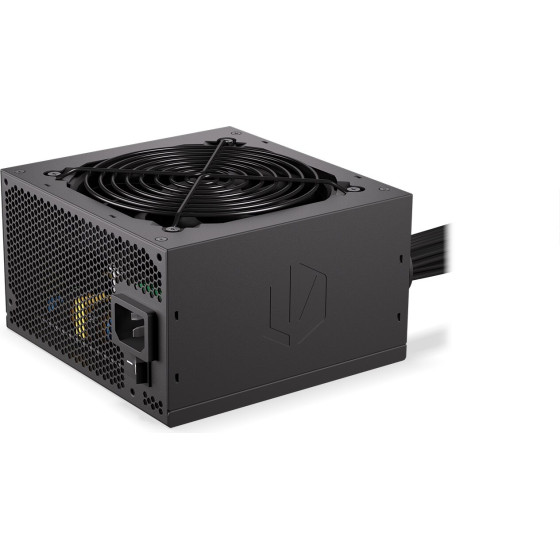

ENDORFY Vero L5 Bronze 600W Power Supply Unit 24-Pin Atx Atx Black - (EY7A005)

Technical details
Sustainability certificates: RoHS, CE, Federal Communications Commission (FCC)
Sustainability compliance: Yes
Warranty period: 3 year(s)

Design
Fan diameter: 12 cm
Product colour: Black
Built-in display: No
On/off switch: Yes
Number of fans: 1 fan(s)

Power
AC input frequency: 50 Hz
Combined power (+3.3V): 97 W
Combined power (+5V): 97 W
AC input voltage: 200 - 240 V
Power protection features: Short circuit, Over voltage, Over power, Under voltage, Over current
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 15 A
Input current: 5 A
Total power: 600 W
Max output current (+5V): 15 A
Max output current (+5Vsb): 2.5 A
Max output current (-12V): 0.3 A
Combined power (+12V): 588 W
Max output current (+12V): 49 A

Weight & dimensions
Depth: 150 mm
Height: 87 mm
Width: 140 mm
Weight: 1.69 kg

Performance
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 80000 h
Purpose: PC
Supported motherboard form factors: ATX
80 PLUS certification: 80 PLUS Bronze

Packaging data
Package width: 260 mm
Package weight: 2.19 kg
Package type: Box
Package height: 95 mm
Package depth: 220 mm

Packaging content
Cables included: AC

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 1
Motherboard power connector: 24-pin ATX
PCI Express power connectors (8-pin): 2
SATA power cable length: 500 mm
Peripheral (Molex) power cable length: 820 mm
Motherboard power cable length: 57 cm
ATX Power connector (24-pin): Yes
Cabling type: Modular
Number of SATA power connectors: 5


Warranty: Manufacturer warranty 36 months
