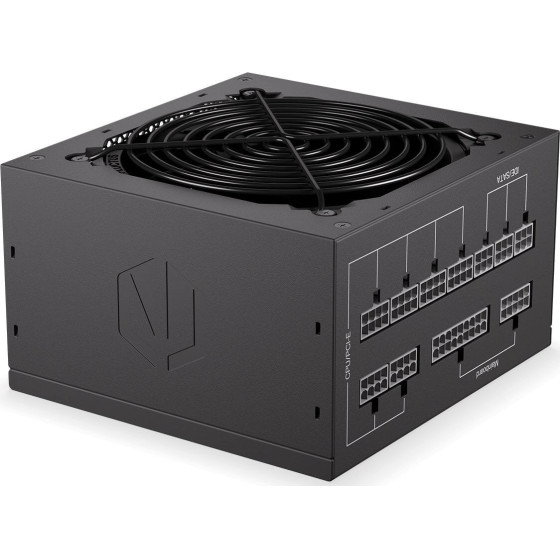

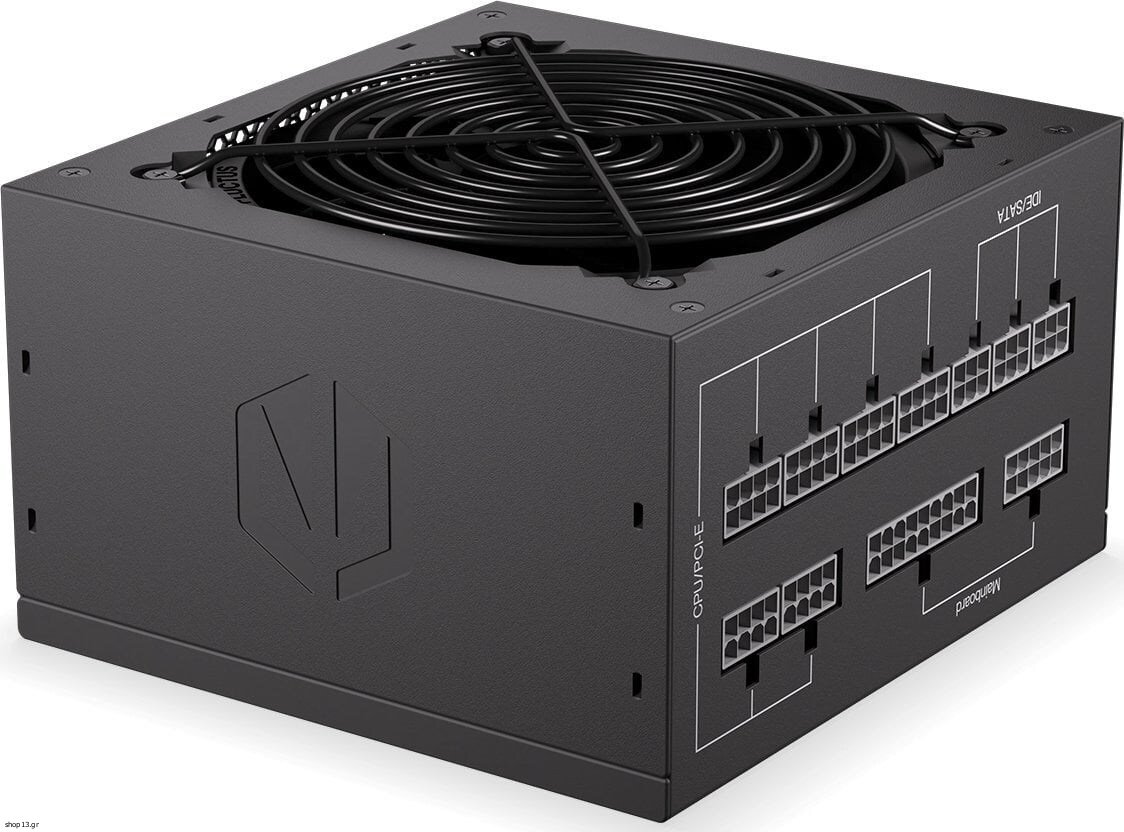

ENDORFY Power supply Supremo FM5 Gold 650W - (EY7A007)

Design
On/off switch: Yes
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

Power
Max output current (+5V): 20 A
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.3 A
Max output current (+3.3V): 20 A
AC input frequency: 50 - 60 Hz
Power protection features: OTP (overheat protection), OPP (overload protection), OCP (overcurrent protection), UVP (undervoltage protection), OVP (overvoltage protection), SCP (short circuit protection), SIP (surge and shock protection)
Max output current (+12V): 54 A
Power Factor Correction (PFC) type: Active
AC input voltage: 115 - 240 V
Total power: 650 W

Weight & dimensions
Height: 87 mm
Weight: 1.44 kg
Width: 150 mm
Depth: 140 mm

Performance
80 PLUS certification: 80 PLUS Gold
ATX version: 2.31
Power supply unit (PSU) form factor: ATX

Packaging data
Package weight: 2.42 kg

Ports & interfaces
EPS power connector (4+4 pin): 2
Peripheral (Molex) power cable length: 880 mm
Motherboard power connector: 20+4 pin ATX
PCI Express power cable length: 56 cm
Length of EPS power connectors (4+4 pin) : 705 mm
Number of SATA power connectors: 5
Modular cabling : Y
Motherboard power cable length: 60 cm
SATA power cable length: 880 mm, 560 mm
Peripheral (Molex) power connectors (4-pin): 1
PCI Express power connectors (6+2 pin): 2


Warranty: Manufacturer warranty 24 months
