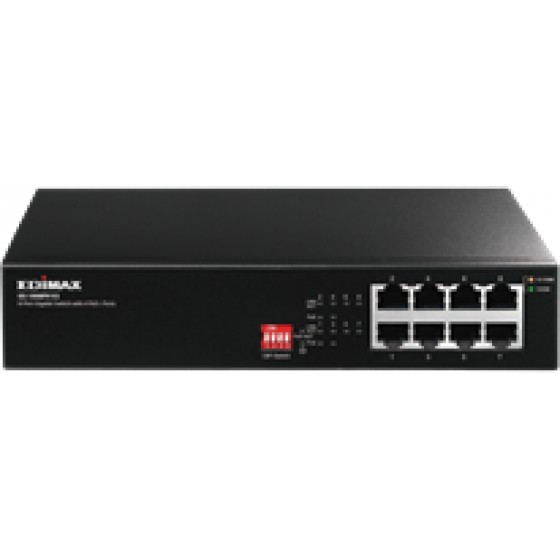

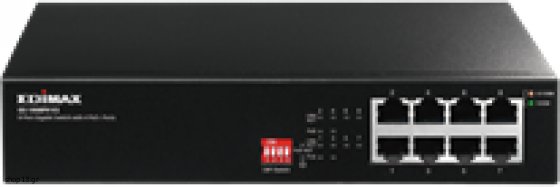

EDIMAX SWITCH 8 PORTS 10/100/1000MBPS - (GS-1008PH V2)

Eight 10/100/1000Mbps Gigabit ports where four are PoE+ ports.IEEE 802.3af/at PoE compliant (ports 1 - 4) for simplified deployment and installation
Up to 30W per PoE port (total power budget: 70W) for powering PoE-enabled devices
Auto-detection of powered devices (PD) and power consumption levels.Hardware DIP switch for “Standard” and “Extend” mode selection, the “Extend” mode features 30-watt PoE transmit distance of 200m at speed of 10Mbps
Port-based VLAN and Loop Protection features
Supports 802.1p Quality of Service (QoS)
Ports: 8 RJ-45 10/100/1000Base-T ports, 4 RJ-45 10/100/1000Base-T PoE+ ports
Transmission MethodStore and forward
LED IndicatorsPower: Green LED, LNK/ACT: Green LED (Port 1 – Port 8), PoE: Green LED (Port 1 – Port 4), PoE Alert: Green LED (PoE overload alarm)
Fan: Fan-less
DIP Switch: PoE Extend, VLAN, QoS
Power Requirements Input: 100-240V AC
Power Supply: 80W
Power Consumption: 5W
Dimensions: 215.5mm x133mm x 42mm(L x W x H) Weight 927g
PERFORMANCE: Switching Capacity 16G, MAC Address 8K, Buffer Memory 128Kb, Jumbo Frames 9KB
Power over Ethernet: StandardIEEE 802.3af, IEEE 802.3at
Power Output: Up to 30W per port
Pin Assignment: 1/2(+), 3/6(-)
PoE Power Budget: 70W
Temperature: Operating: 0 ~ 40 °C, Storage: -40 ~ 70 °C
Humidity (Non-condensing): Operating: 10 ~ 90%, Storage: 5 ~ 90%
Standards Compliance: IEEE 802.3 10BaseT Ethernet, IEEE 802.3u 100BaseTX Fast Ethernet, IEEE802.3ab 1000BASE-T, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+), IEEE 802.3x Full-duplex and flow control, IEEE 802.3az Energy efficient Ethernet
Certifications: FCC, CE, LVD
Εγγύηση: 2 χρόνια
