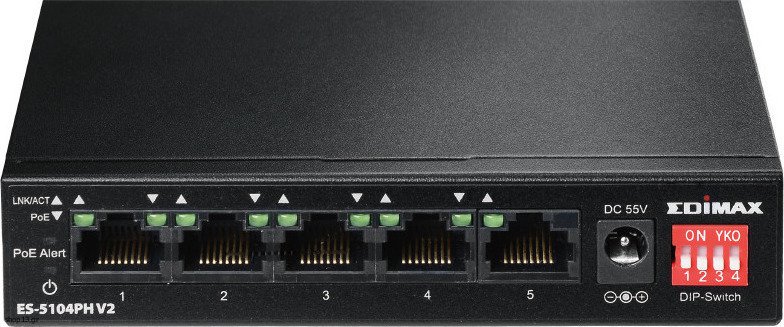

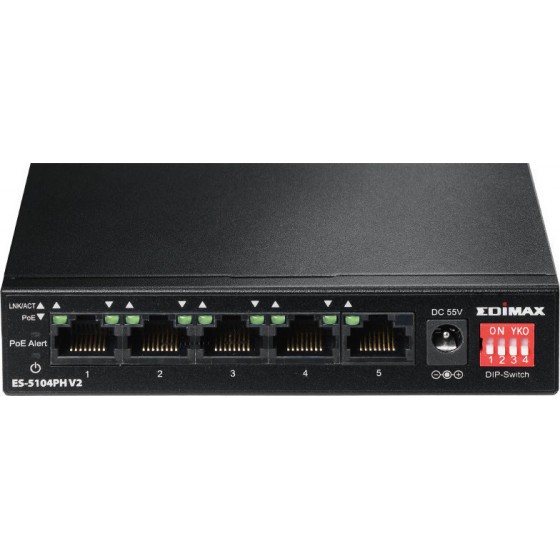

EDIMAX SWITCH 5 PORTS 10/100MBPS - (ES-5104PH V2)

Five 10/100Mbps Fast Ethernet ports and four PoE+ portsIEEE 802.3af/at PoE compliant (ports 1 - 4) for simplified deployment and installation
Up to 30W per PoE port (total power budget: 60W) for powering PoE-enabled devices
Auto-detection of powered devices (PD) and power consumption levels
Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 200m at speed of 10Mbps
Port-based VLAN and Loop Protection features
Supports 802.1p Quality of Service (QoS)
Plug & play, no installation required & Fanless quiet operation
External power adapter included
Hardware
Ports: 5 RJ-45 10/100Base-T ports, 4 RJ-45 10/100Base-T PoE+ ports
Transmission Method: Store and forward
LED IndicatorsPower: Green LED, LNK/ACT: Green LED (Port 1 – Port 5), PoE: Green LED (Port 1 – Port 4), PoE Alert: Green LED (PoE overload alarm)
Fan: Fanless
DIP Switch: PoE Extend, VLAN, QoS
Power Requirements: AC-to-DC external power adapter, Input: 100-240V AC, Output: 55V DC/1.3A (Total Power: 71.5W), Power Consumption 3W
Dimensions (L x W x H):121mm x 75mm x 26mm
Weight: 240.5g
Performance: Switching Capacity 1G, MAC Address 1K, Buffer Memory56Kb
Power over Ethernet
Standard: IEEE 802.3af, IEEE 802.3at
Power Output:Up to 30W per port
Pin Assignment:1/2(+), 3/6(-)
PoE Power Budget: 60W
Temperature: Operating: 0 ~ 40 °C, Storage: -40 ~ 70 °C
Humidity (Non-condensing): Operating: 10 ~ 90%, Storage: 5 ~ 90%
Standards Compliance: IEEE 802.3 10BaseT Ethernet, IEEE 802.3u 100BaseTX Fast Ethernet, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+), IEEE 802.3x Full-duplex and flow control, IEEE 802.3az Energy efficient Ethernet
Certifications:FCC, CE, LVD
Εγγύηση: 2 χρόνια
