Περιγραφή
BRAND
Ecoflow
MFG CODE
EFStreamMI800W
TYPE
Microinverter
DETAIL 1
AC nominal output power: 800 W (AC) per unit
MPPT Channels: 2
Max Input Power per Channel: 600W
DETAIL 2
Start-up Voltage: 20V
Short-Circuit Current per MPPT 16A
Max Input Voltage: 65V DC
MPPT Voltage Range: 16-60V DC
DETAIL 3
Max Current per MPPT: 16A
Rated Grid Output Power: 800VA
Max Grid Output Current: 3.48A
Voltage Range: 183-276VAC
Frequency Range: 45-55 Hz / 55-65 Hz
Protection class / Ingress rating: IP67 (dust & water protected)
DETAIL 4
Operating temperature range: approx. -40 °C to +60 °C (or -40 °C to +60 °C depending on region)
DETAIL 5
Cooling: Passive (no fans)
DETAIL 6

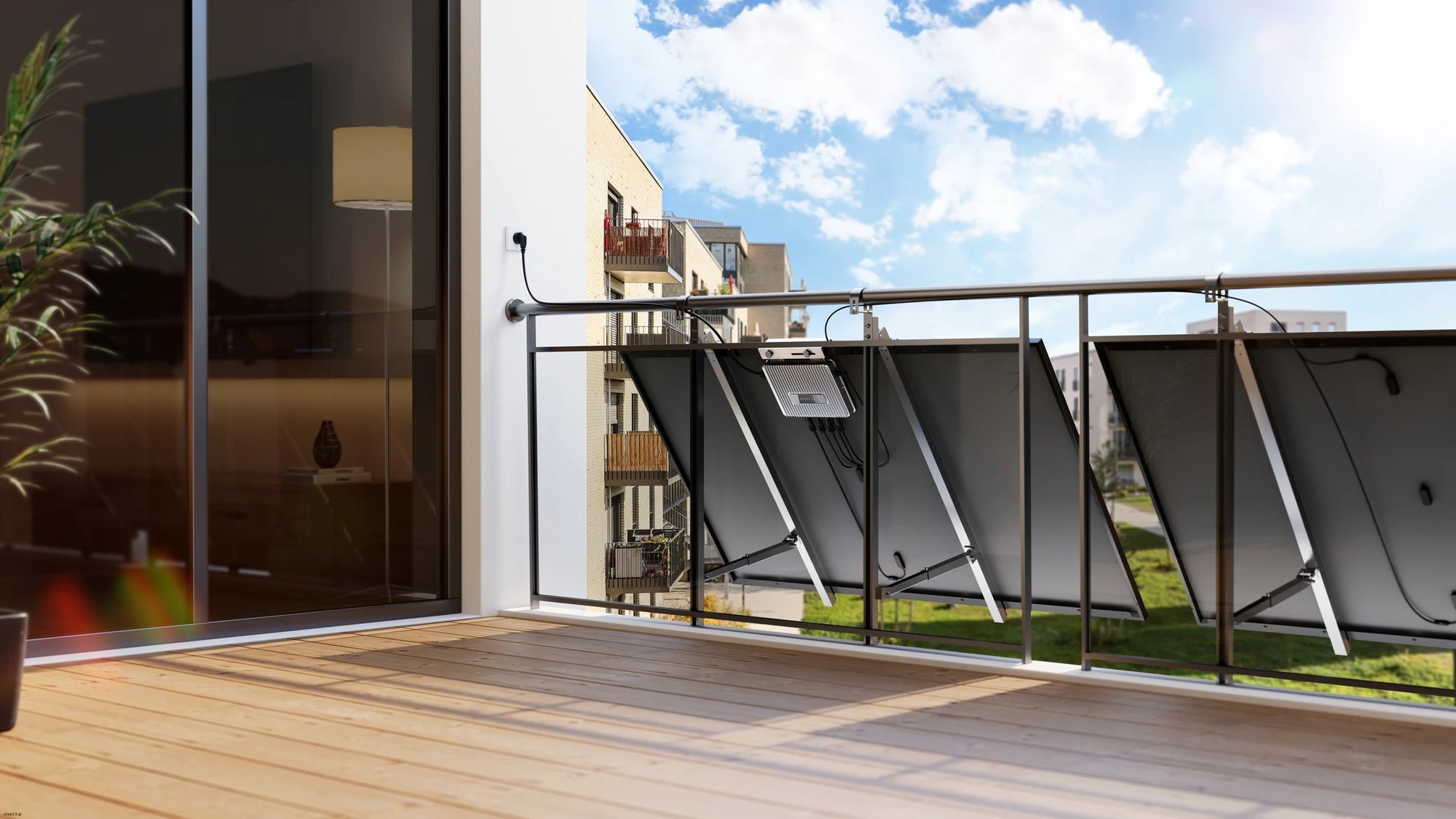

Microinverter type: Plug-and-play design oriented for grid-tied solar modules (especially balcony or small-scale PV applications)
DIMENTIONS
252 x 180 x 35 mm
COLOR
Grey
WARRANTY
120 months
BARCODE EAN-13
4895251640428
MANUFACTURER: Ecoflow
TYPE: Microinverter
DETAIL 1: AC nominal output power: 800 W (AC) per unit, MPPT Channels: 2, Max Input Power per Channel: 600W
DETAIL 2: MPPT Voltage Range: 16-60V DC, Max Input Voltage: 65V DC, Short-Circuit Current per MPPT 16A, Start-up Voltage: 20V
DETAIL 3: Frequency Range: 45-55 Hz / 55-65 Hz, Max Current per MPPT: 16A, Max Grid Output Current: 3.48A, Protection class / Ingress rating: IP67 (dust & water protected), Rated Grid Output Power: 800VA, Voltage Range: 183-276VAC
DETAIL 4: Operating temperature range: approx. -40 °C to +60 °C (or -40 °C to +60 °C depending on region)
DETAIL 5: Cooling: Passive (no fans)
DETAIL 6: Microinverter type: Plug-and-play design oriented for grid-tied solar modules (especially balcony or small-scale PV applications)
DIMENTIONS: 252 x 180 x 35 mm
COLOR: Grey
