Περιγραφή
Design
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Cooling type: Active
Product colour: Black
Power
Efficiency: 90%
Power Good signal delay range: 100 - 150 ms
Power protection features: Short circuit, Over voltage, Surge & inrush protection (SIP), No load operation, Under voltage, Overheating, Surge protection, Over power
Total power: 1200 W
Combined power (+5Vsb): 15 W
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Power Factor Correction (PFC) type: Active
Hold time: 16 ms
Combined power (+12V): 1200 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Depth: 150 mm
Width: 150 mm
Height: 86 mm
Performance
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Purpose: PC
ATX version: 3.1
Bearing technology: FDB
Power supply unit (PSU) form factor: ATX
Packaging data
Package type: Box
Packaging content
Cables included: AC
Cable tie(s) included: Yes

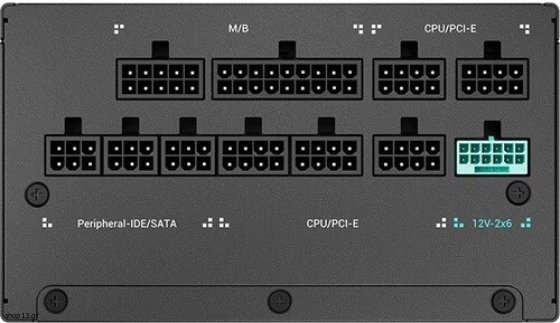

Ports & interfaces
CPU power connector (4+4 pin): 2
Cabling type: Fully-Modular
PCI Express power connectors (6+2 pin): 3
CPU power cable length: 70 cm
Motherboard power connector: 20+4 pin ATX
ATX power connector (20+4 pin): Yes
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (16-pin): 1
Safety warning
Warnings: Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Avoid contact of the product with water or other liquids.
Warranty: Gwarancja 144 miesiace
