Περιγραφή
Design
Cooling type: Active
On/off switch: Yes
Product colour: Black
Number of fans: 1 fan(s)
Fan location: Top
Fan diameter: 13.5 cm
Power
Power Good signal delay range: 100 - 150 ms
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power protection features: Short circuit, Over voltage, Surge & inrush protection (SIP), Under voltage, No load operation, Overheating, Surge protection, Over power
Efficiency: 90%
Total power: 1000 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Hold time: 16 ms
Combined power (+3.3V): 120 W
Power Factor Correction (PFC) type: Active
Combined power (+12V): 999.6 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Depth: 150 mm
Width: 150 mm
Height: 86 mm
Performance
80 PLUS certification: 80 PLUS Gold
Bearing technology: FDB
ATX version: 3.1
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Purpose: PC
Packaging data
Package type: Box
Packaging content
Cable tie(s) included: Yes
Cables included: AC

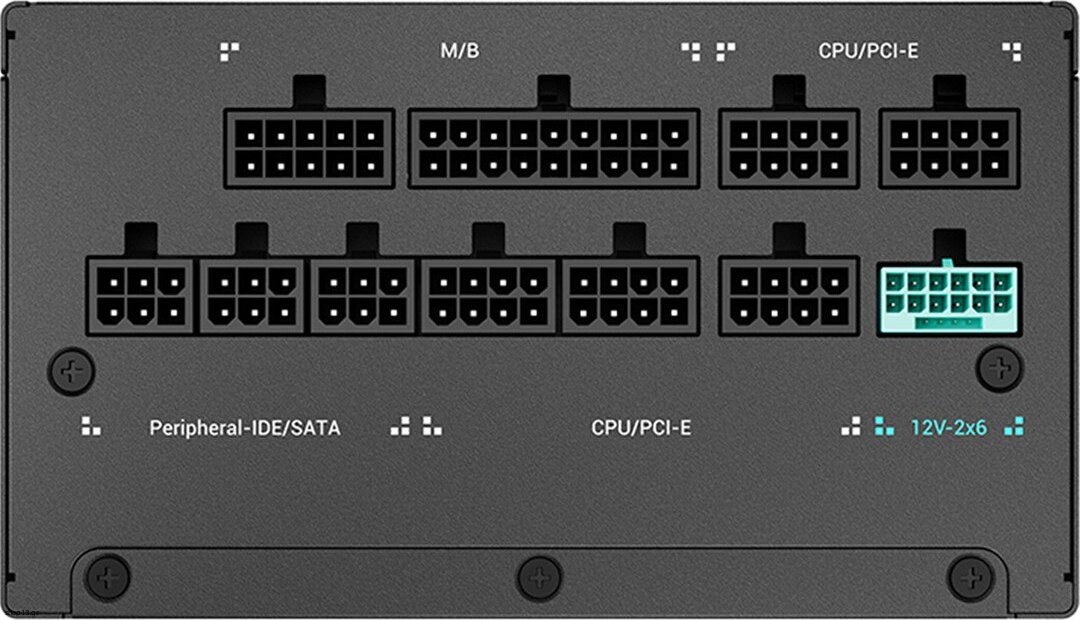

Ports & interfaces
Number of SATA power connectors: 8
ATX power connector (20+4 pin): Yes
PCI Express power connectors (16-pin): 1
CPU power connector (4+4 pin): 2
Motherboard power connector: 20+4 pin ATX
CPU power cable length: 70 cm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 3
Cabling type: Fully-Modular
Safety warning
Warnings: Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
Warranty: Gwarancja 144 miesiace
