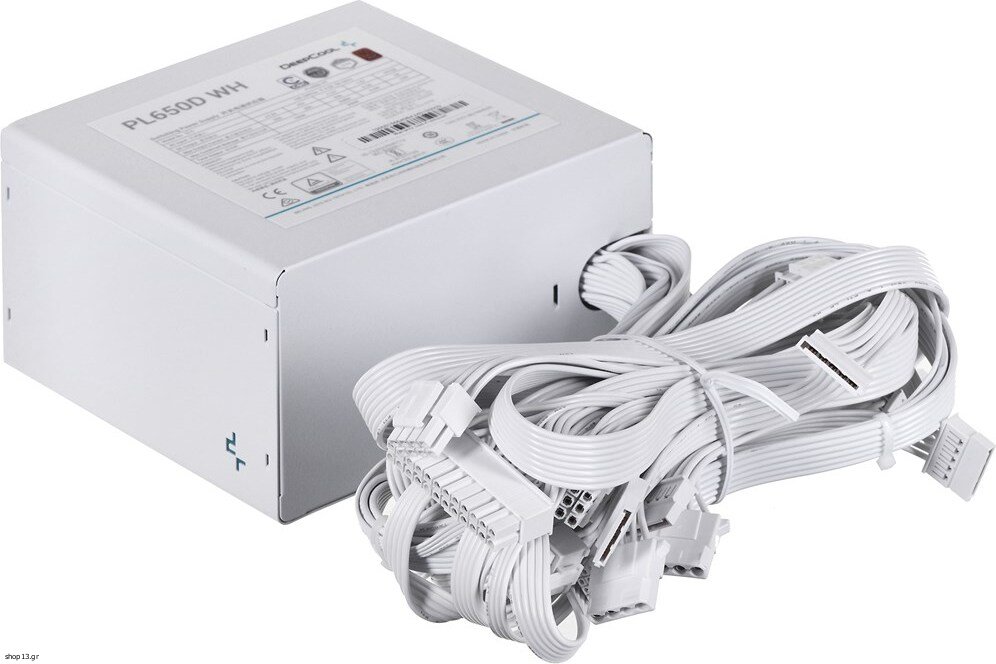

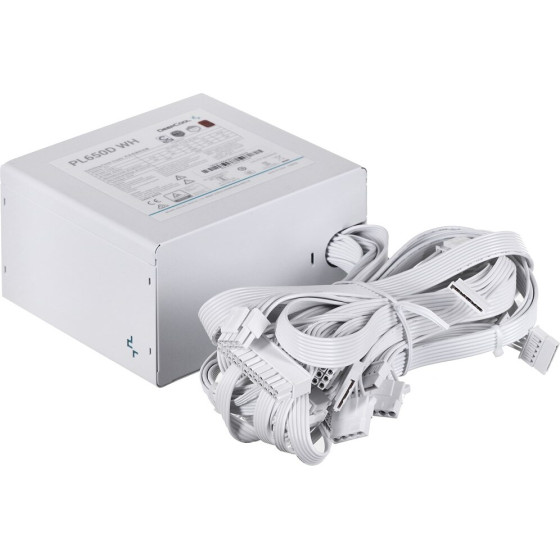

DEEPCOOL PL650D power supply unit 650 W 20+4 pin ATX ATX White - (R-PL650D-FC0W-JDEU-V2)

Technical details
Sustainability compliance: Yes
Sustainability certificates: Triman, ErP

Design
Fan location: Top
Cooling type: Active
Number of fans: 1 fan(s)
On/off switch: Yes
Fan diameter: 12 cm
Product colour: White

Power
Power Factor Correction (PFC) type: Active
Power protection features: Surge & inrush protection (SIP), Over power, Over voltage, Under voltage, Over current, No load operation, Overheating, Surge protection
AC input frequency: 50/60 Hz
Hold time: 16 ms
Efficiency: 85%
Max output current (+3.3V): 20 A
AC input voltage: 100 - 240 V
Combined power (+3.3V): 100 W
Max output current (+12V): 54 A
Combined power (+5V): 100 W
Input current: 9 - 4.5 A
Combined power (-12V): 3.6 W
Max output current (+5Vsb): 3 A
Total power: 650 W
Combined power (+5Vsb): 15 W
Combined power (+12V): 648 W
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Power Good signal delay range: 100 - 150 ms

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Depth: 140 mm
Height: 86 mm
Width: 150 mm

Performance
Bearing technology: HYB
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC
ATX version: 3.0

Packaging data
Package type: Box

Certificates
Compliance certificates: WEEE, RoHS

Ports & interfaces
PCI Express power connectors (16-pin): 1
Motherboard power cable length: 55 cm
Cabling type: Non-Modular
PCI Express power connectors (6+2 pin): 3
Peripheral (Molex) power connectors (4-pin): 2
Number of SATA power connectors: 6
SATA power cable length: 550, 450, 650
Motherboard power connector: 20+4 pin ATX
ATX power connector (20+4 pin): Yes
CPU power connector (4+4 pin): Yes


Warranty: warranty 24 months
