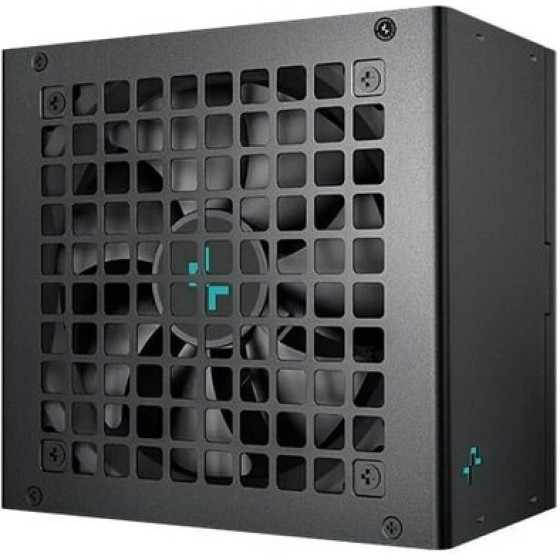

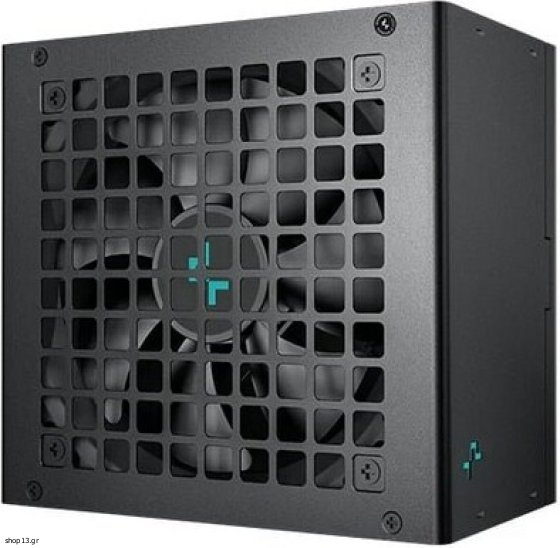

DEEPCOOL PL-550-D power supply - (R-PL550D-FC0B-EU-V2)

Design
Number of fans: 1 fan(s)
Fan diameter: 12 cm
On/off switch: Yes
Product colour: Black

Power
Power protection features: OPP (overload protection), SIP (surge and shock protection), NLO, OTP (overheat protection), UVP (undervoltage protection), OCP (overcurrent protection), OVP (overvoltage protection), SCP (short circuit protection)
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Total power: 550 W

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Height: 86 mm
Width: 150 mm
Depth: 140 mm

Performance
Efficiency: 85 %
ATX version: 3.0
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Cooling type: Active

Packaging data
Package type: Box

Packaging content
Cables included: AC

Ports & interfaces
Cabling type: Non-Modular
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 3
CPU power connectors 4+4 (8-pin) : 2
Power supply connectors: EPS12V
Number of power connectors 12VHPWR (12V - 2x6 pin): 1

Safety warning
Warnings: The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Do not open the case - risk of electric shock.


Warranty: warranty 24 months
