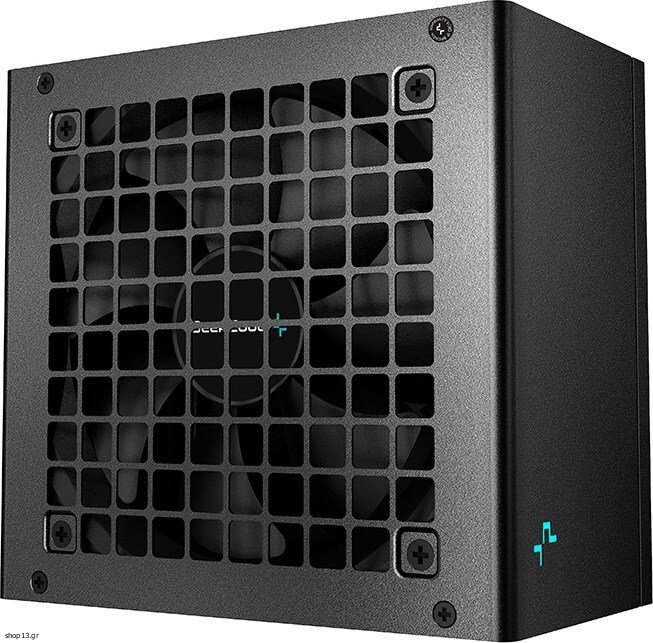

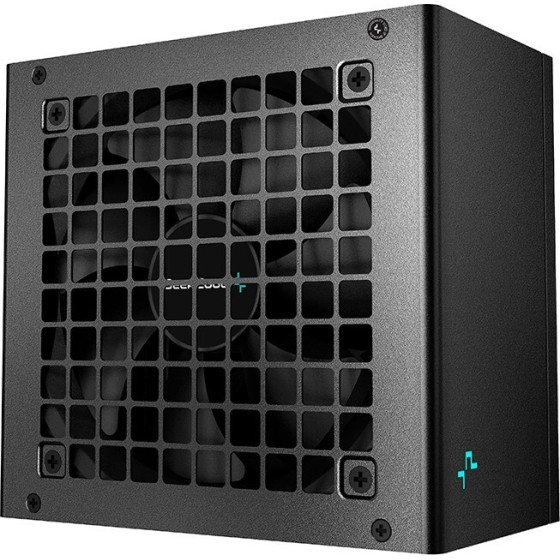

DEEPCOOL PK750D power supply unit 750 W 20+4 pin ATX Black - (R-PK750D-FA0B-EU)

Design
Fan diameter: 12 cm
Product colour: Black
On/off switch: Yes
Number of fans: 1 fan(s)

Power
Combined power (+12V): 750 W
Combined power (+5Vsb): 12.5 W
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Over power, Overheating
Combined power (-12V): 3.6 W
Combined power (+5V): 120 W
AC input voltage: 100 - 240 V
Max output current (+12V): 62.5 A
Hold time: 16 ms
AC input frequency: 50 - 60 Hz
Max output current (+3.3V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Combined power (+3.3V): 120 W
Efficiency: 85%
Max output current (+5V): 20 A
Total power: 750 W

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm

Performance
Bearing technology: HDB
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC
ATX version: 2.4

Packaging data
Package type: Box

Packaging content
Cables included: AC

Ports & interfaces
SATA power cable length: 500 mm, 400 mm, 600 mm, 700
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power connectors (4-pin): 1
ATX power connector (20+4 pin): Yes
Motherboard power cable length: 50 cm
Peripheral (Molex) power cable length: 400 mm, 700 mm, 600 mm, 500 mm
EPS power connector (4+4 pin): Yes
PCI Express power cable length: 62 cm
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 2
Cabling type: Non-Modular


Warranty: warranty 60 months
