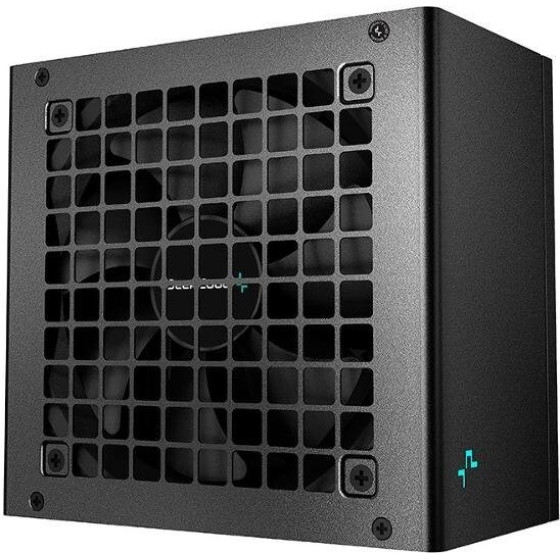

DEEPCOOL PK650D 650W Bronze Power Supply - (R-PK650D-FA0B-JGEU)

Design
On/off switch: Yes
Cooling type: Active
Fan location: Top
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 12 cm

Power
Combined power (+12V): 648 W
Combined power (-12V): 3.6 W
Power protection features: Over power, No load operation, Over voltage, Overheating, Surge protection, Surge & inrush protection (SIP), Under voltage, Over current
Max output current (+12V): 54 A
Efficiency: 85%
Power Factor Correction (PFC) type: Active
Max output current (-12V): 0.3 A
Combined power (+5V): 110 W
Combined power (+3.3V): 110 W
Hold time: 16 ms
AC input voltage: 100 - 240 V
Max output current (+3.3V): 20 A
Total power: 650 W
AC input frequency: 50/60 Hz
Power Good signal delay range: 100 - 150 ms
Max output current (+5V): 20 A

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Height: 86 mm
Width: 150 mm
Depth: 140 mm

Performance
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
Purpose: PC

Packaging data
Package type: Box

Certificates
Compliance certificates: WEEE, RoHS

Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 50 cm
Cabling type: Non-Modular


Warranty: warranty 24 months
