Technical details
Sustainability certificates: Triman, WEEE, China RoHS
Sustainability compliance: Yes
Design

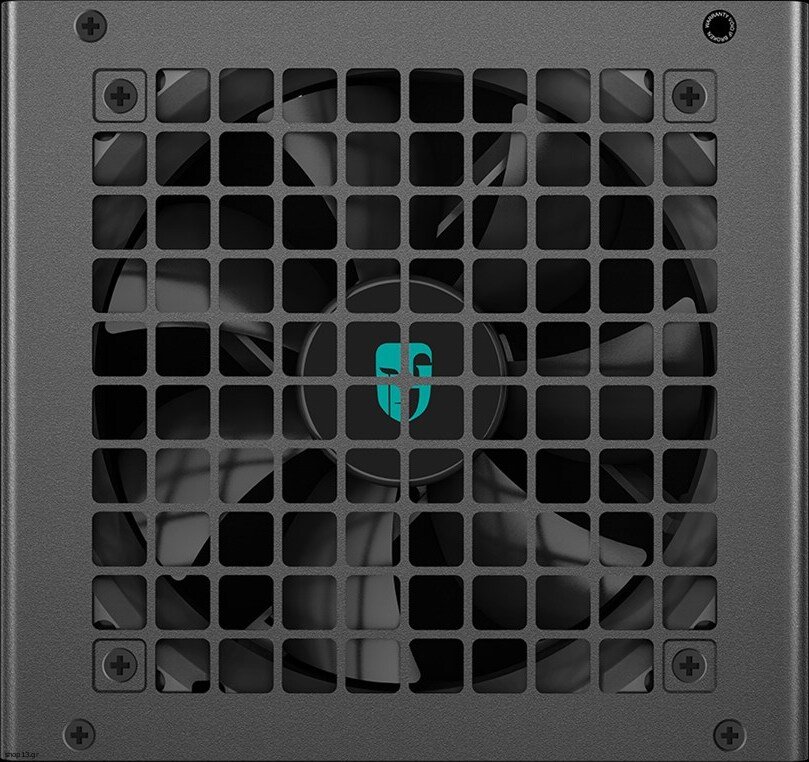

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Cooling type: Active
Product colour: Black
Power
Max output current (+5V): 16 A
Combined power (-12V): 3.6 W
Max output current (+5Vsb): 3 A
Power Factor Correction (PFC) type: Active
Efficiency: 88%
Power protection features: OPP, SCP, UVP, SIP, OVP, OCP, OTP, NLO
Max output current (+12V): 50 A
Hold time: 16 ms
Power Good signal delay range: 100 - 150 ms
Max output current (+3.3V): 16 A
Combined power (+5V): 100 W
Combined power (+12V): 600 W
Total power: 600 W
Combined power (+3.3V): 100 W
Combined power (+5Vsb): 15 W
Max output current (-12V): 0.3 A
AC input frequency: 50/60 Hz
AC input voltage: 200 - 240 V
Input current: 5 A
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Height: 86 mm
Depth: 140 mm
Width: 150 mm
Performance
Mean time between failures (MTBF): 40000 h
Bearing technology: HYB
ATX version: 2.52
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX
Packaging data
Package type: Box
Packaging content
Cables included: AC
Certificates
Compliance certificates: RCM, CE, KC, CCC
Ports & interfaces
SATA power cable length: 750 mm, 600, 900 mm, 450 mm
PCI Express power connectors (6+2 pin): 2
Motherboard power cable length: 55 cm
CPU power connector (4+4 pin): Yes
Number of SATA power connectors: 8
Motherboard power connector: 24-pin ATX
Warranty: warranty 36 months
