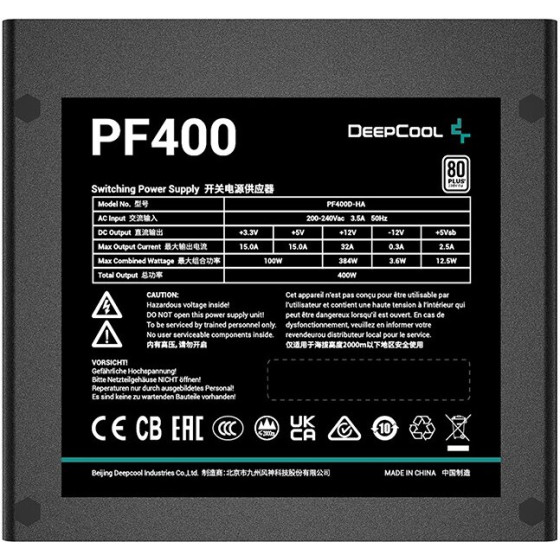

DEEPCOOL PF400 power supply unit 400 W 20+4 pin ATX ATX Black - (R-PF400D-HA0B-EU)

Design
Product colour: Black
On/off switch: Yes
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
Max output current (+3.3V): 15 A
Power protection features: Over power, Short circuit, Over voltage, Under voltage
Max output current (+5V): 15 A
AC input frequency: 50 Hz
Efficiency: 85%
Total power: 400 W
Max output current (+5Vsb): 2.5 A
Combined power (-12V): 3.6 W
AC input voltage: 220 - 240 V
Combined power (+5Vsb): 12.5 W
Combined power (+5V): 100 W
Combined power (+3.3V): 100 W
Hold time: 16 ms
Max output current (-12V): 0.3 A
Combined power (+12V): 384 W
Max output current (+12V): 32 A

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Width: 150 mm
Height: 86 mm
Depth: 140 mm

Performance
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 2.4

Packaging data
Package type: Box

Packaging content
Cables included: AC

Ports & interfaces
Motherboard power cable length: 55 cm
SATA power cable length: 600 mm, 450 mm, 900 mm, 750
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 4
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular


Warranty: warranty 36 months
