Technical details
Warranty period: 5 year(s)
Design
Display type: LED
Fan connector: 4-pin
Product colour: Black
Illumination LED: Yes
Number of fans: 3 fan(s)
Material: Aluminium
LED connector type: 3-pin
Power
Pump current: 0.35 mA
Fan current: 0.22 A
Fan power consumption: 2.64 W
Power consumption (typical): 4.2 W
Fan voltage: 12 V
Pump power consumption: 4.2 W
LED voltage: 5 V
Pump voltage: 12 V
Weight & dimensions

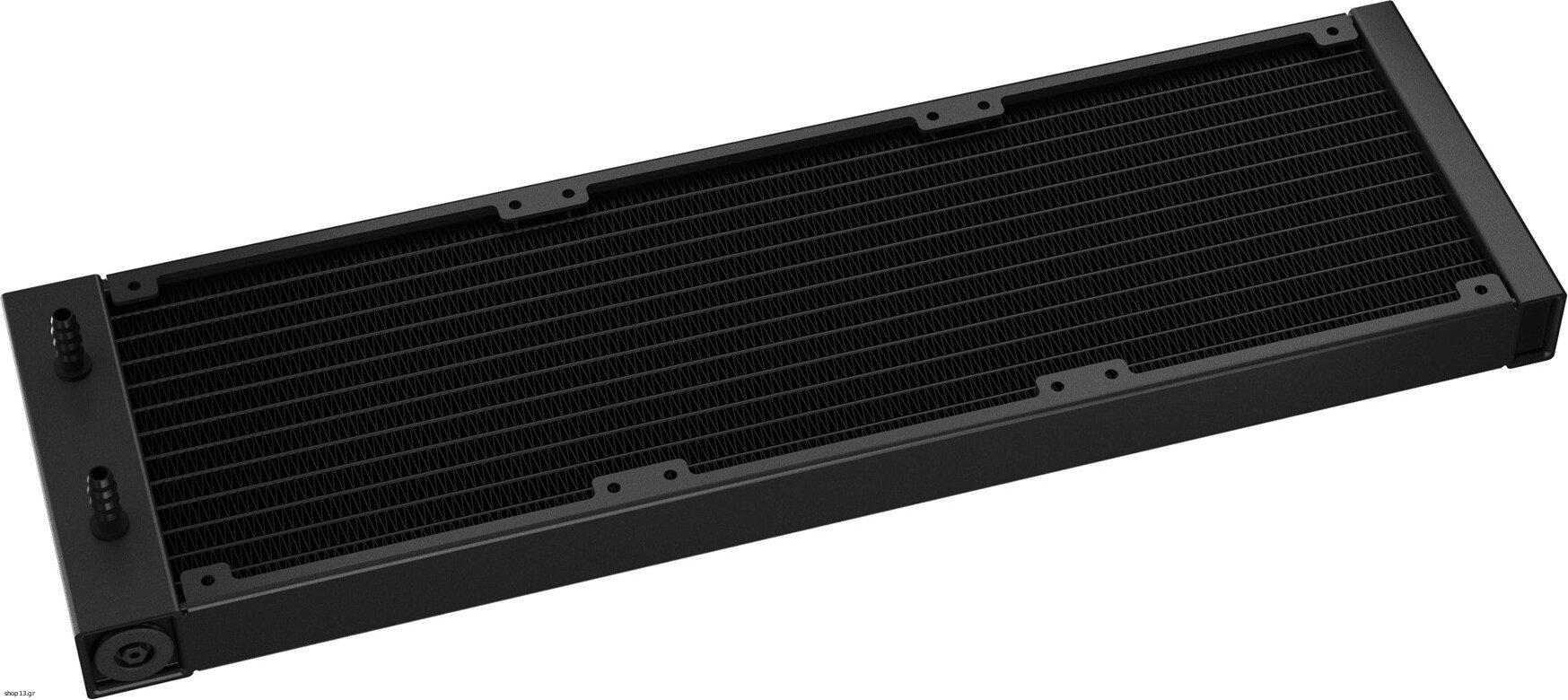

Radiator height: 12 cm
Package depth: 439 mm

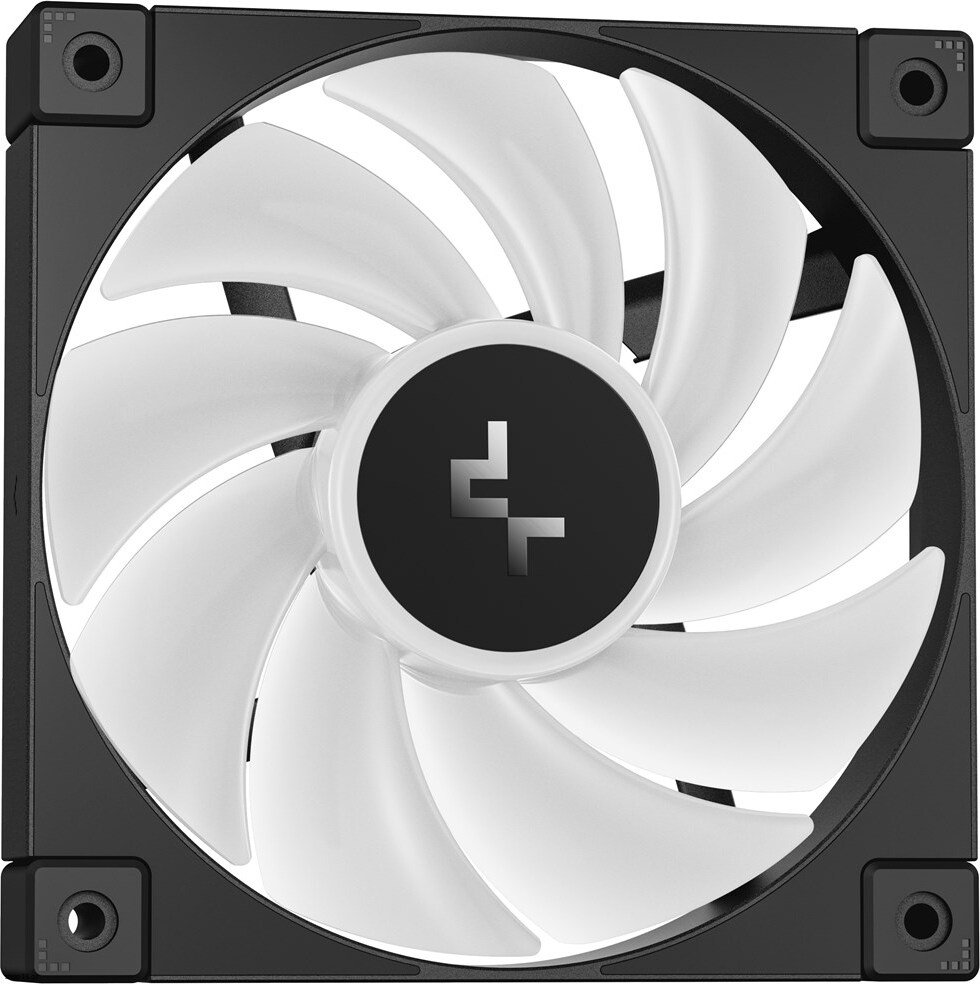

Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 159 mm
Tube length: 41 cm
Package height: 191 mm
Package weight: 2.23 kg

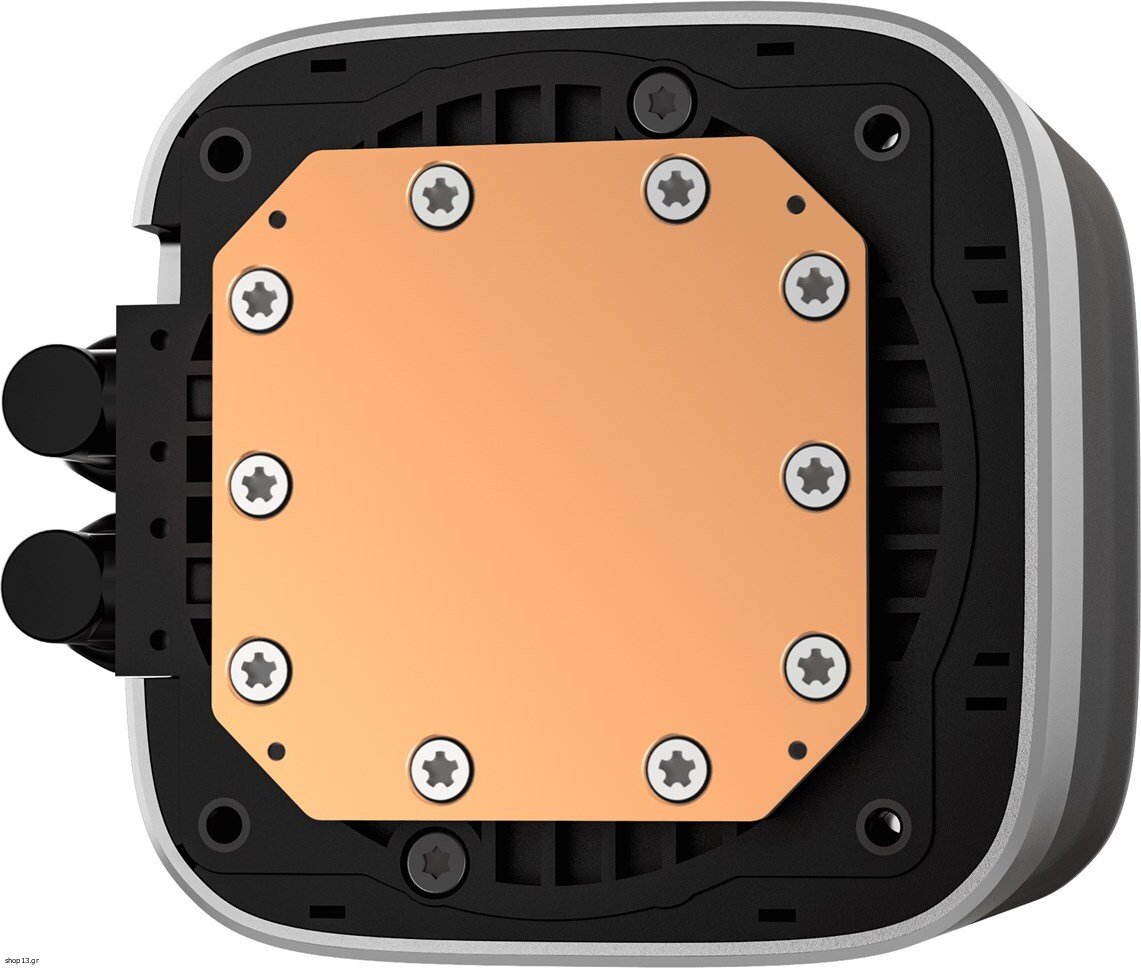

Pump height: 7.8 cm
Radiator width: 40.2 cm
Pump depth: 6.3 cm
Radiator depth: 2.7 cm
Weight: 1.72 kg
Pump width: 9.1 cm
Performance
Compatible processor series: Intel(R) Core(TM) i5, Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Core(TM) i3
Supported processor sockets: LGA 1150 (Socket H3), Socket AM5, Socket AM4, LGA 1151 (Socket H4), LGA 1700, LGA 1200 (Socket H5), LGA 1155 (Socket H2)
Suitable location: Computer case, Processor
Fan noise level (min): 38.71 dB
Maximum airflow: 72.04 cfm
Fan diameter: 12 cm
Fan speed (min): 600 RPM
Quantity per pack: 1 pc(s)
Maximum air pressure: 3.48 mmH2O
Pump motor speed: 3400 RPM
Bearing type: Hydrodynamic bearing
Pump connector: 3-pin
Pump noise level: 21 dB
Fan speed (max): 2400 RPM
Type: All-in-one liquid cooler
Safety warning
Warnings: Do not bend or damage cooling cables; risk of leakage and corrosion., The product must not be disposed of in the regular refuse bin; dispose of in accordance with local regulations for electronic waste., Avoid contact with coolant; may cause skin and eye irritation.
Warranty: warranty 60 months
