Design
LED connector type: 3-pin
Illumination colour: Multi
Number of fans: 3 fan(s)
Radiator material: Aluminum
Number of fan blades: 9
Product colour: Black
Illumination LED: Yes

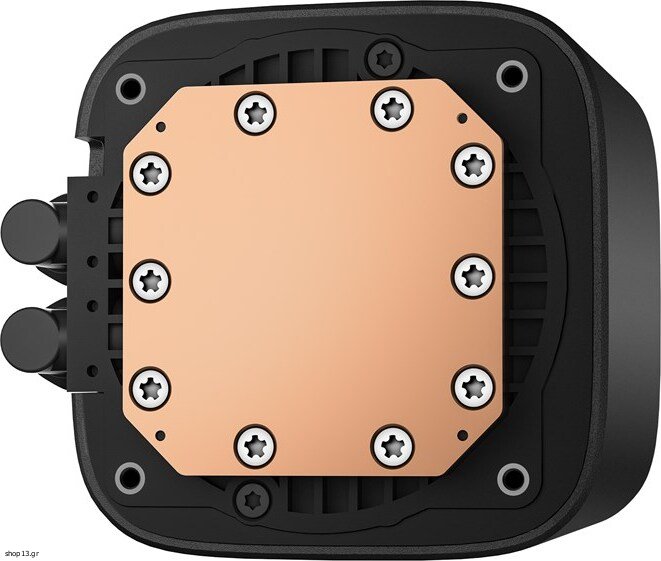

Base plate material: Copper
Fan connector: 4-pin
Power
LED power consumption (pump): 3.15 W
LED power consumption (fan): 2.8 W
Pump voltage: 12 V
Pump current: 290 mA
Fan power consumption: 2.04 W
Fan voltage: 12 V
Fan current: 0.17 A
LED voltage: 5 V
Pump power consumption: 3.48 W
Weight & dimensions
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Pump depth: 9.1 cm
Radiator width: 12 cm
Pump height: 6.5 cm
Tube length: 41 cm
Pump width: 7.8 cm
Weight: 1.63 kg
Radiator depth: 40.2 cm
Radiator height: 2.7 cm
Performance
Supported processor sockets: LGA 1150 (Socket H3), Socket AM5, LGA 1851, LGA 1151 (Socket H4), Socket AM4, LGA 1200 (Socket H5), LGA 1155 (Socket H2), LGA 1700
Fan diameter: 12 cm
Pulse-width modulation (PWM) support: Yes
Bearing type: Hydro Dynamic Bearing (HDB)
Type: All-in-one liquid cooler
Pump connector: 4-pin
Pump motor speed (min): 2500 RPM
Suitable location: Processor
Fan noise level (max): 31.6 dB
Maximum airflow: 75.89 cfm
Quantity per pack: 1 pc(s)
Fan speed (min): 500 RPM
Maximum air pressure: 2.53 mmH2O
Pump motor speed (max): 3400 RPM
Fan speed (max): 2100 RPM
Packaging content
Mounting kit: Yes
Package type: Box
Cables included: 3-pin, 4-pin
CPU bracket(s): Yes
Warranty: warranty 60 months
