Περιγραφή
Design
Number of fans: 2 fan(s)
Radiator material: Aluminum
Fan connector: 4-pin
Illumination LED: Yes
Product colour: Black
LED connector type: 3-pin
Power
Pump voltage: 12 V
Fan voltage: 12 V
Pump current: 290 mA
LED voltage: 5 V
Fan power consumption: 2.04 W
Fan current: 0.17 A
Pump power consumption: 3.48 W
LED power consumption (fan): 2.1 W
LED power consumption (pump): 2.8 W
Weight & dimensions
Height: 65 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Radiator height: 2.7 cm
Tube length: 41 cm
Radiator width: 12 cm
Pump width: 7.8 cm
Radiator depth: 28.2 cm
Pump depth: 9.1 cm
Performance
Supported processor sockets: LGA 1851, Socket AM5, LGA 1200 (Socket H5), LGA 1150 (Socket H3), LGA 1700, Socket AM4, LGA 1155 (Socket H2), LGA 1151 (Socket H4)
Bearing type: Hydraulic
Suitable location: Processor
Fan diameter: 12 cm
Pump connector: 4-pin
Maximum air pressure: 2.53 mmH2O
Pump motor speed (min): 2500 RPM
Fan speed (min): 500 RPM
Pump motor speed (max): 3400 RPM
Fan speed (max): 2100 RPM
Maximum airflow: 75.89 cfm
Fan noise level (max): 31.6 dB

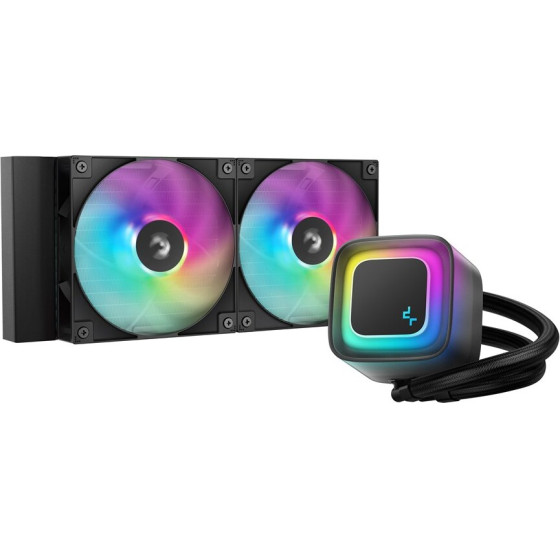

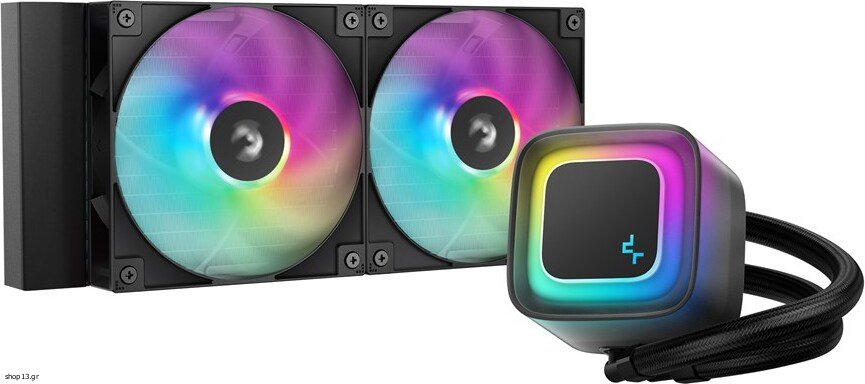

Type: All-in-one liquid cooler
Warranty: warranty 60 months
