Περιγραφή
Design
Number of fans: 3 fan(s)
Illumination colour: Multi
Illumination LED: Yes
Radiator material: Aluminum
Product colour: Black
Fan connector: 4-pin
LED connector type: 3-pin
Display type: LED
Power
Pump voltage: 12 V
Pump power consumption: 4.2 W
LED voltage: 5 V
LED power consumption (fan): 3.15 W
Fan current: 0.22 A
Fan power consumption: 2.64 W
LED power consumption (pump): 2.55 W
Fan voltage: 12 V
Pump current: 350 mA
Weight & dimensions
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Pump width: 7.8 cm

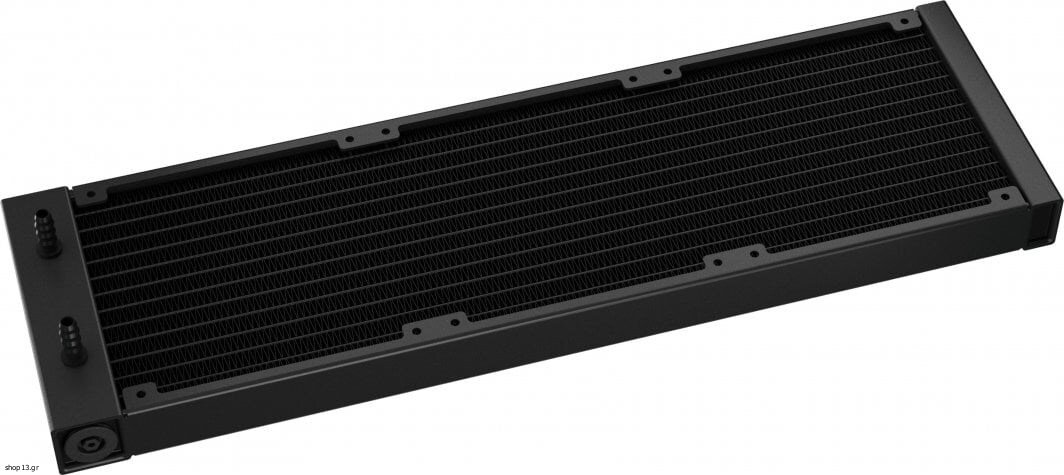

Radiator width: 12 cm
Radiator depth: 40.2 cm
Pump height: 5.3 cm
Tube length: 41 cm
Radiator height: 2.7 cm
Pump depth: 8.9 cm
Weight: 1.79 kg
Performance
Pulse-width modulation (PWM) support: Yes
Type: All-in-one liquid cooler
Pump motor speed: 3400 RPM
Supported processor sockets: LGA 1150 (Socket H3), Socket AM5, LGA 1700, LGA 1151 (Socket H4), LGA 1155 (Socket H2), Socket AM4, LGA 1200 (Socket H5)
Bearing type: Hydro Dynamic Bearing (HDB)
Pump noise level: 21 dB
Quantity per pack: 1 pc(s)
Fan speed (min): 600 RPM
Maximum air pressure: 3.48 mmH2O
Maximum airflow: 72.04 cfm
Fan diameter: 12 cm
Fan noise level (max): 38.71 dB
Fan speed (max): 2400 RPM
Suitable location: Processor
Pump connector: 3-pin
Packaging content
Installation instruction: Yes
Screws included: Yes
CPU bracket(s): Yes
Mounting kit: Yes
Package type: Box
Number of nuts: 8
Safety warning
Hazard pictogram(s): GHS05: Corrosive, GHS09: Environmental hazard, GHS07: Harmful
Warranty: warranty 60 months
