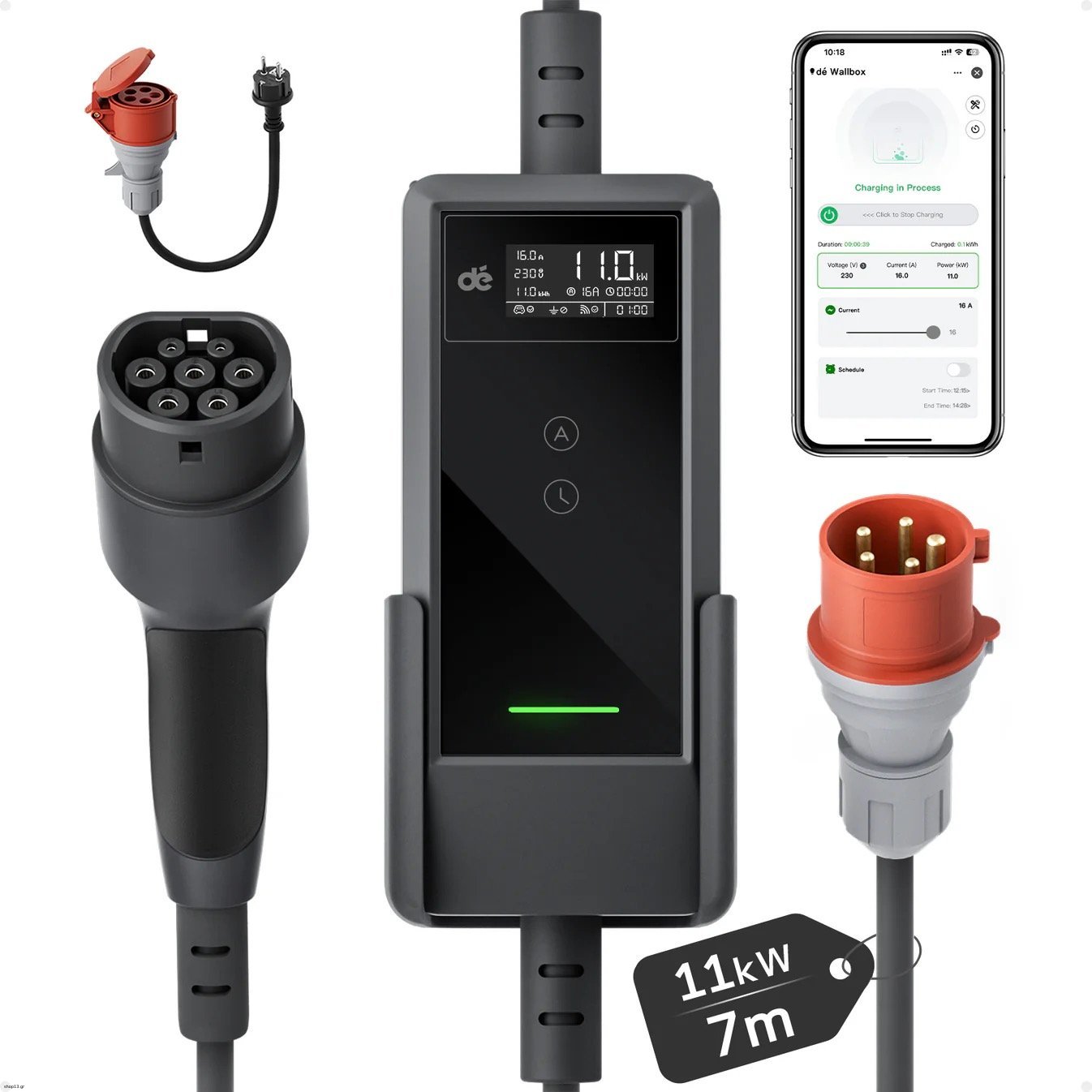

de 11kW Portable Charger with Type 2/CEE CableThe de 11kW portable charging station is a flexible solution for charging electric vehicles at home and on the go. Thanks to the Type 2 cable, CEE 16A connector, and charging power of up to 11 kW, it enables charging without fixed installation, in both single-phase and three-phase mode.
Key FeaturesCharging power of up to 11 kW with three-phase charging via CEE 16A
Compatible with electric vehicles equipped with a Type 2 connector
Adjustable current: 6 A, 8 A, 10 A, 13 A, or 16 A
Charging timer
Schuko adapter and CEE 32A to CEE 16A adapter

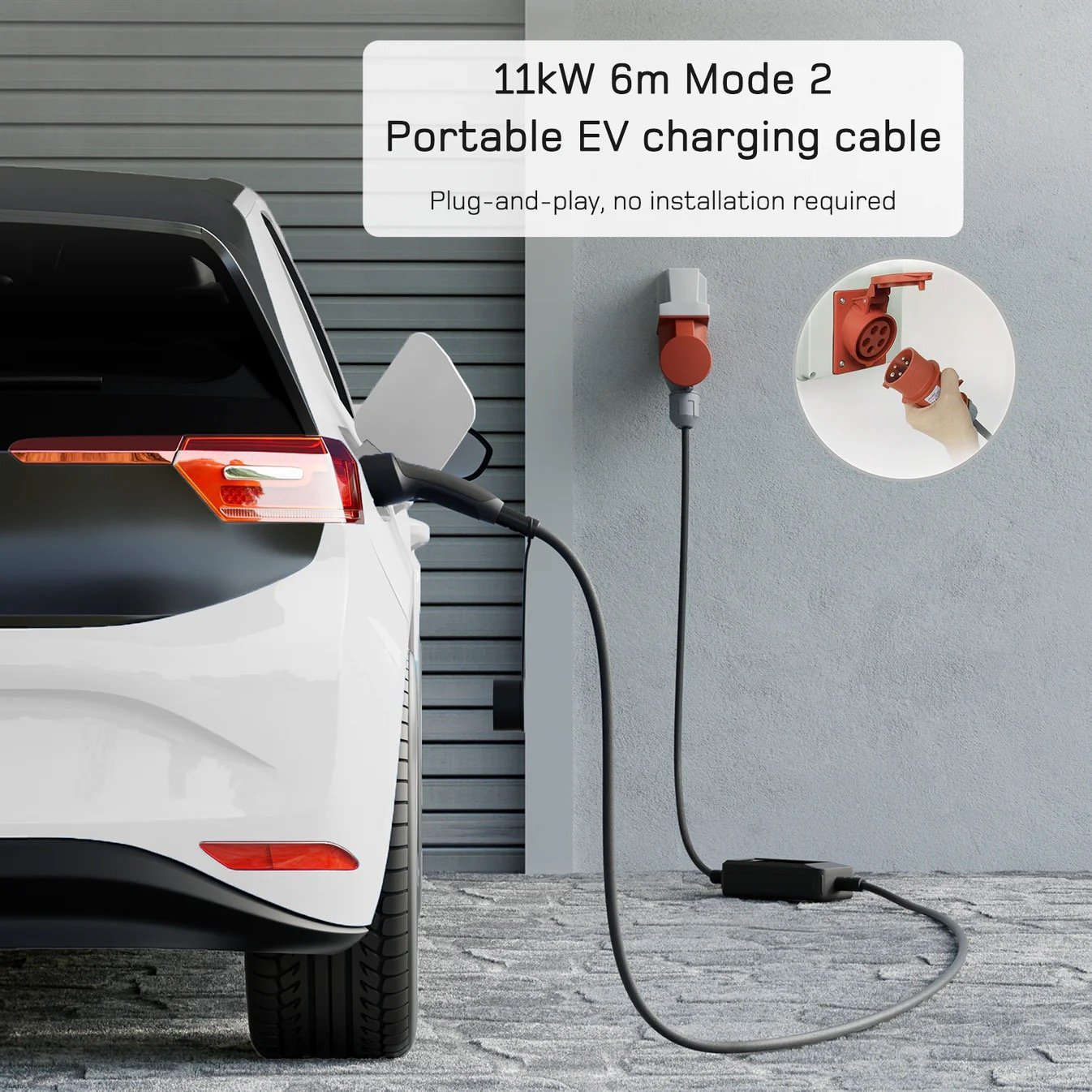

Mobile Charging Without Fixed InstallationThe charging station connects directly to a red CEE 16A socket and does not require fixed mounting. It is suitable for home garages, rented parking spaces, travel, camping, and flexible charging of plug-in hybrids and electric vehicles in various locations.

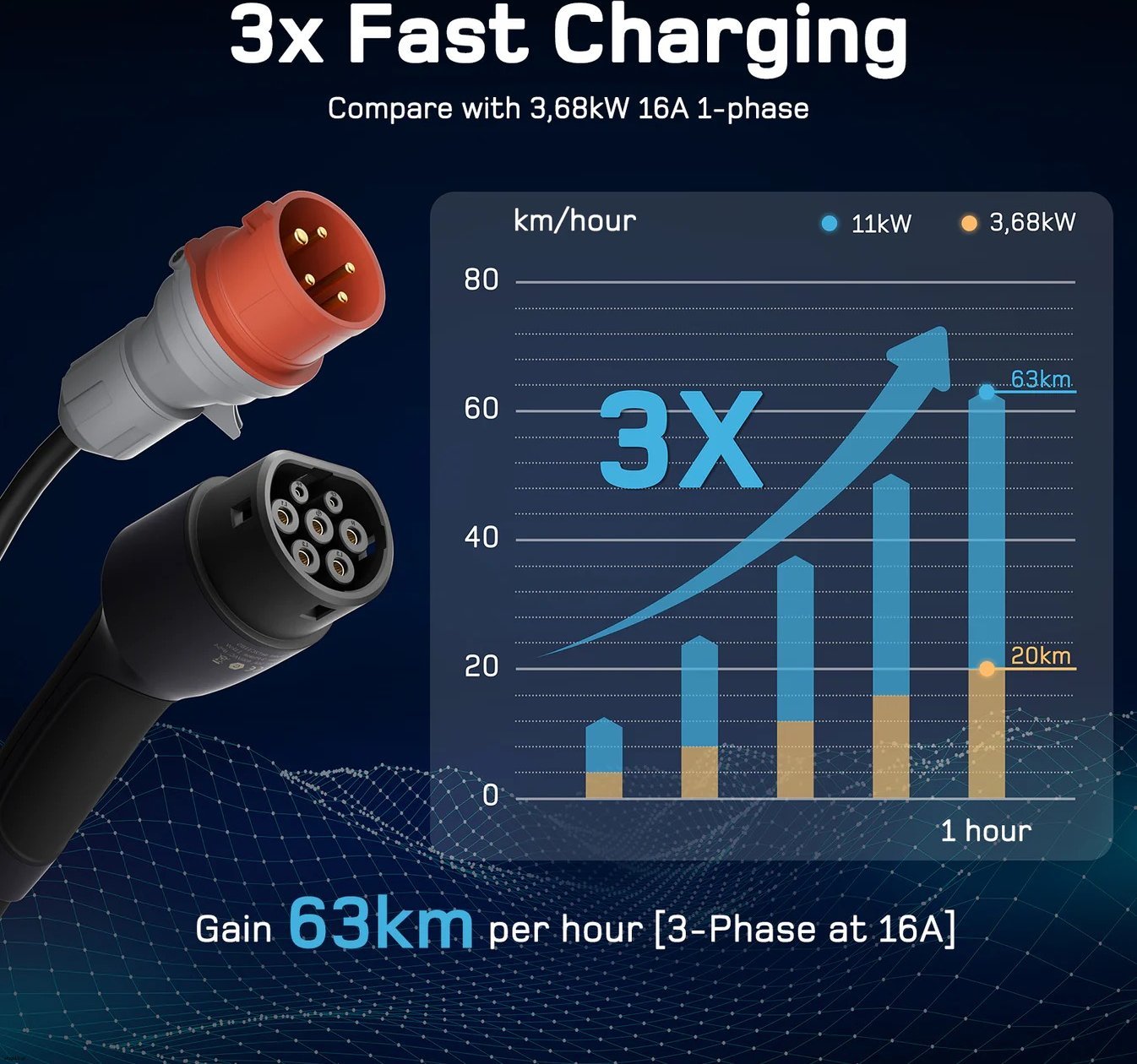

Power of Up to 11 kWThe station supports three-phase charging up to 11 kW. The charging current can be adjusted in five levels: 6 A, 8 A, 10 A, 13 A, and 16 A, allowing charging to be adapted to the electrical installation and the desired charging speed.

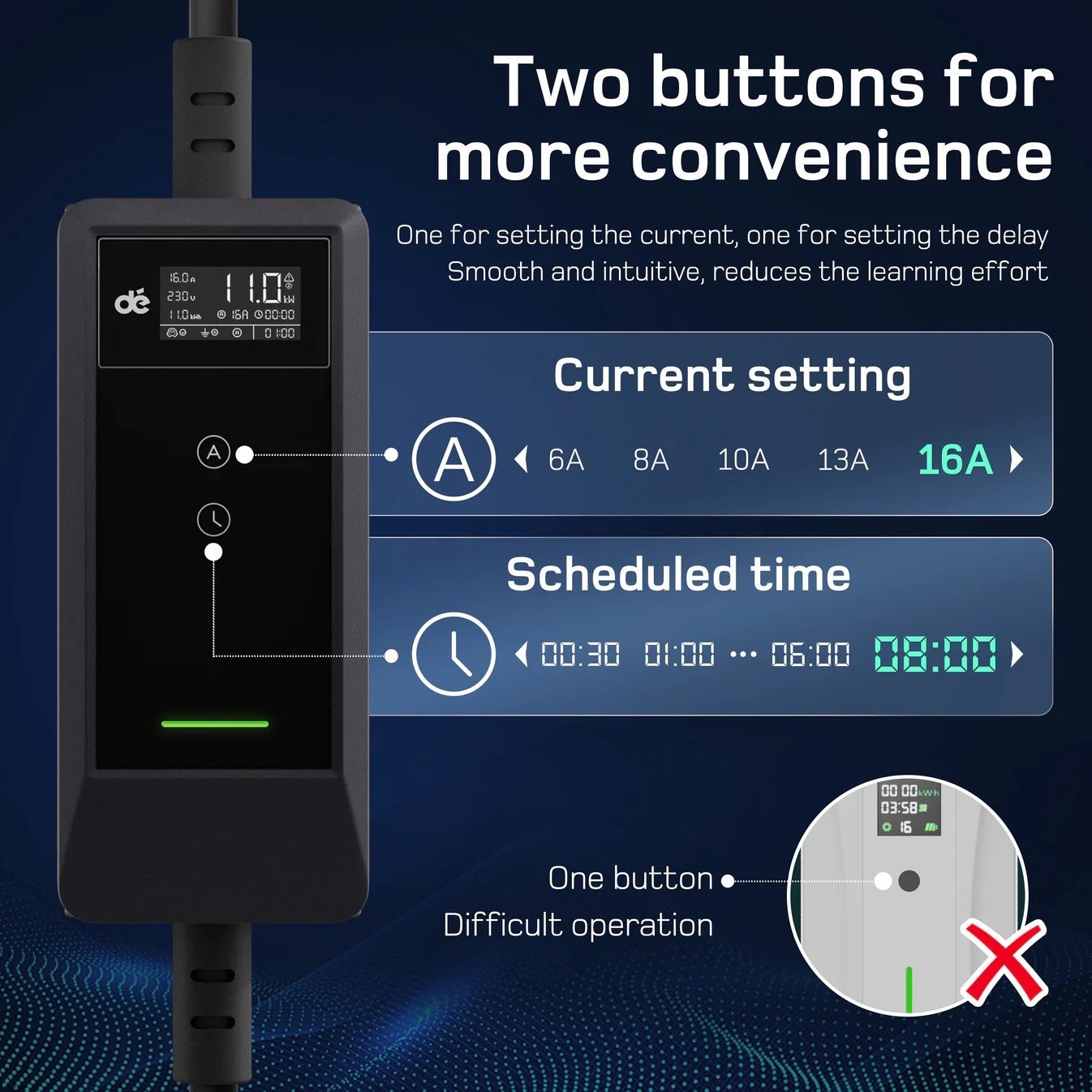

Timer and Easy OperationThe time function allows the charging timer to be set from 0.5 to 8 hours. Operation is controlled using two buttons: a short press of the current button changes the level from 6 A to 16 A, while the timer button is used to set the timer.
Practical Design and DisplayThe LCD display shows the charging status, current, power, voltage, and remaining time. The shaped handle makes everyday use easier.
SpecificationsParameterDetailsVoltage400V AC, 50 HzStandardIEC 62196-2, IEC 62752CertificateCEScenesIndoor/OutdoorControl Box SizeL245xW104xH60(mm)IP RatingIP65 (Control Box), IP55 (Type 2 Plug)Current Switching6A, 8A, 10A, 13A, 16A.Working Environment Temperature-25°C ~ 50°CStorage Temperature-40°C ~ 80°CEnvironment Humidity5% ~ 95% RH, Non-CondensingSinusoidal Wave DistortionTotal Harmonic Distortion (THD) <= 5%Standby Power Consumption<5WProtectionOver-Current, Over-/Under-Voltage, Leakage,
Short-Circuit, Grounding, Temperature ControlRCDType-B AC 30mA + DC 6mALEDPower, Standby, Charging, Fault LED Indicator
