Περιγραφή
Technical details
Compliance certificates: RoHS
Power
Input voltage: 4.5 - 14 V
Number of reads per charge: 80000
Battery technology: Lithium-Ion (Li-Ion)
Power source type: Battery
Battery voltage: 12 V
Battery capacity: 3250 mAh
Charging time: 4 h
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Weight & dimensions
Depth: 68 mm
Width: 109 mm
Weight: 235 g
Height: 166 mm
Performance
Product colour: Black
International Protection (IP) code: IP52
Packaging data
Charging base: Yes
Cables included: USB
Ports & interfaces
Operating frequency: 2400 MHz
Standard interfaces: Bluetooth, USB
Bluetooth version: 4.0
Wireless range: 100 m
Connectivity technology: Wired & Wireless
Logistics data
Harmonized System (HS) code: 84716070
Scanning
2D (matrix & stacked) barcodes supported: MaxiCode, QR Code, GS1 DataBar Expanded Stacked, Aztec Code, MicroPDF417, Micro QR Code, GS1 DataBar Stacked Omnidirectional, Data Matrix
Linear (1D) barcodes supported: Code 39, PDF417, GS1 DataBar Omnidirectional, U.P.C., EAN-13, GS1 DataBar Expanded
Pitch reading angle: -65 - 65°
Wavelength: 650 nm
Scanner type: 1D/2D
Yaw reading angle: -65 - 65°
Tilt reading angle: 0 - 360°
Optical sensor resolution (W x H): 1280 x 800 pixels
Sensor type: Laser
Light levels (direct sunlight): 0 - 100000 lx

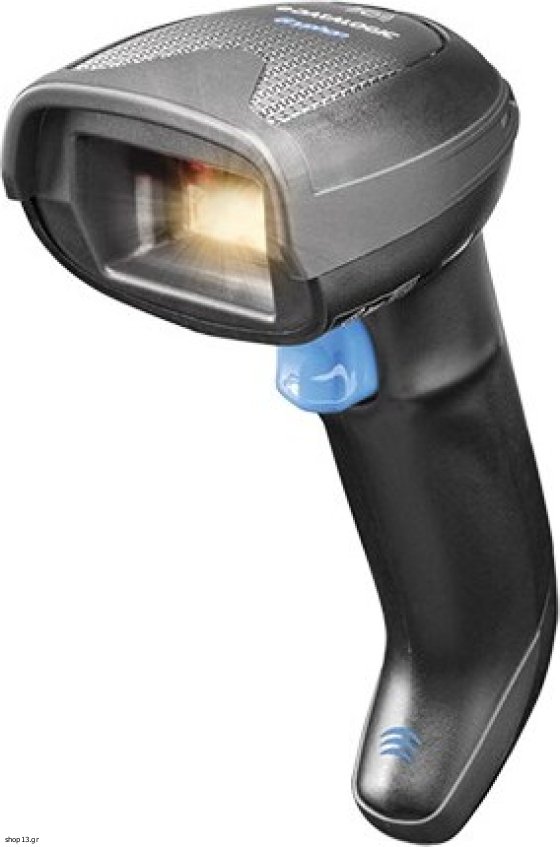

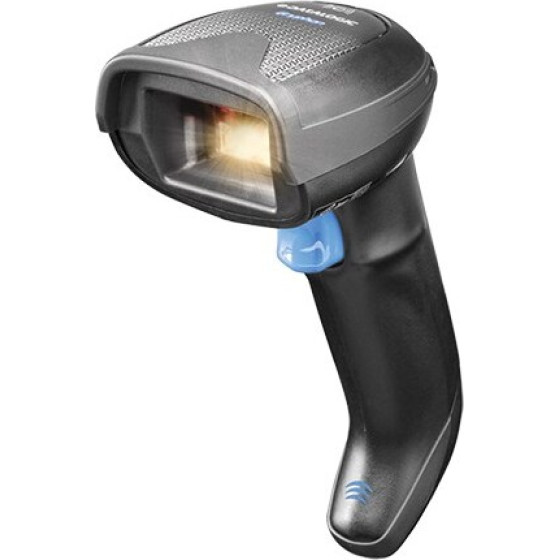

Type: Handheld bar code reader
Warranty: warranty 24 months
