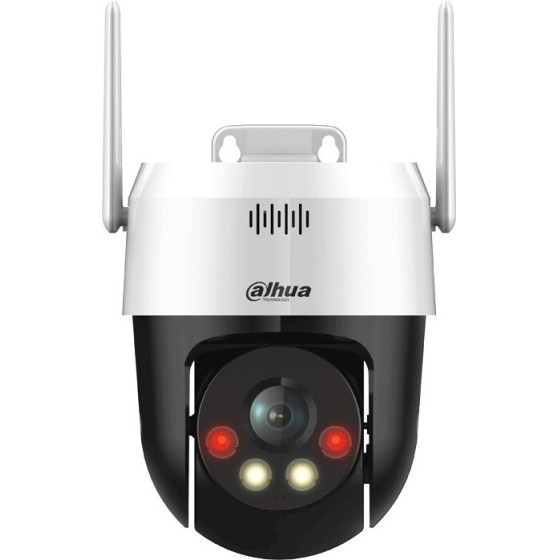

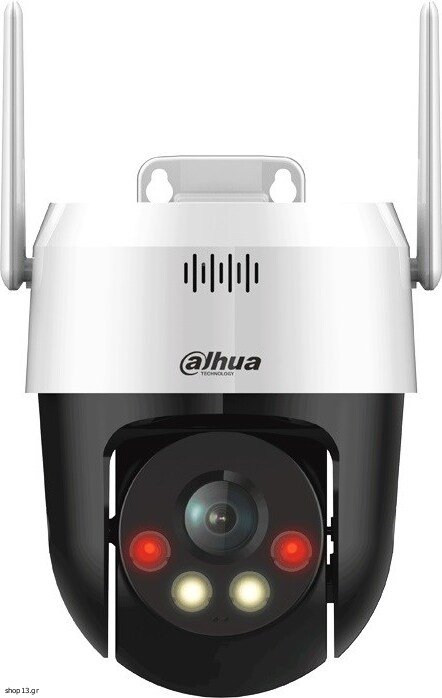

Dahua WI-Fi P5AE-Pv - (49644)

Design
International Protection (IP) code: IP66
Product colour: White
Housing material: Plastic
Mounting type: Wall/ceiling
Form factor: Dome

Power
DC output voltage: 12
Power source type: DC, PoE

Operational conditions
Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Web-based management: Yes
Web browser: Yes

Weight & dimensions
Weight: 1 kg
Height: 140.5 mm
Width: 111 mm

Network
Bluetooth: No
Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
Networking standards: IEEE 802.3af
4G LTE: No
Wi-Fi: Yes

System requirements
Mobile operating systems supported: Android, iOS

Performance
Placement supported: Outdoor
Connectivity technology: Wired & Wireless
Type: IP security camera

Packaging content
Number of cameras: 1

Audio
Audio codecs: PCM, G.711a G.711Mu, G.726
Built-in microphone: Yes
Built-in loudspeaker: Yes
Two-way talk: Yes

Storage
ROM capacity: 256 MB

Camera
Vertical rotation angle: 0 - 80°
Viewing angle, diagonal: 104,8°
Camera shutter speed: 1/3 - 1/100000 s
Horizontal rotation angle: 0 - 345°
Lens viewing angle, vertical: 58.1°
Lens viewing angle, horizontal: 80.4°
People detection : Yes
Motion detection : Yes

Image sensor
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")

Video
Frame rate: 25 / 30 fps
Video compression formats: H.264+, H.265, H.265+
Total megapixels: 5 MP
Video streaming: Yes
Maximum resolution: 2560 x 1920 pixels

Night vision
Night vision distance: 30 m
Number of illumination LEDs: 1 / 1
LED type: IR / White light LED
Night vision: Yes

Lens system
Focal length range: 4 mm
Maximum aperture number: 1.6
Lens type: Fixed focal length lens
Number of lenses: 1


Warranty: Manufacturer warranty 36 months
