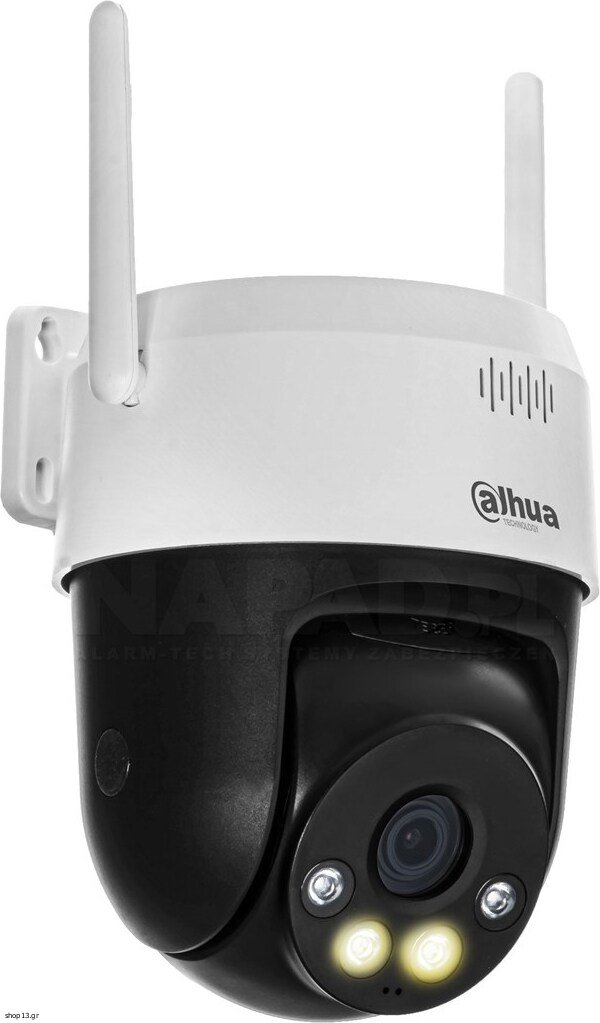

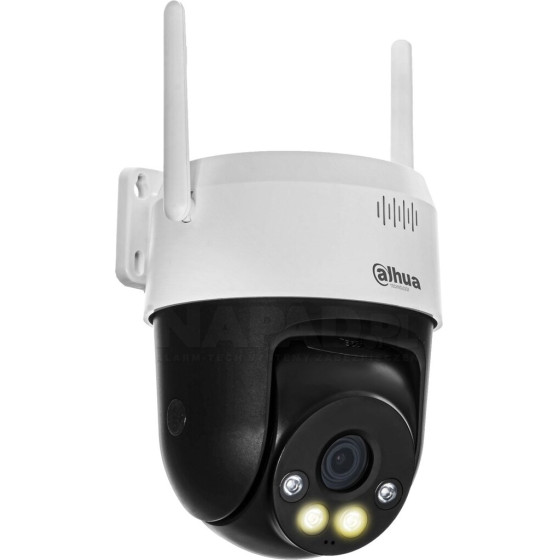

Dahua WI-Fi 3MP - (P3AE-PV)

Design
Product colour: White
International Protection (IP) code: IP66
Form factor: Dome
Housing material: Plastic
Mounting type: Wall/ceiling

Power
Power source type: DC, PoE
DC output voltage: 12

Operational conditions
Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -30 - 55 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Web browser: Yes
Web-based management: Yes

Weight & dimensions
Width: 111 mm
Weight: 0.5 kg
Height: 140.5 mm

Network
4G LTE: No
Wi-Fi: Yes
Bluetooth: No
Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
Networking standards: IEEE 802.3af

System requirements
Mobile operating systems supported: Android, iOS

Performance
Connectivity technology: Wireless
Type: IP security camera
Placement supported: Outdoor

Packaging content
Number of cameras: 1

Audio
Two-way talk: Yes
Built-in microphone: Yes
Audio codecs: PCM, G.711a G.711Mu, G.726
Built-in loudspeaker: Yes

Camera
Viewing angle, diagonal: 102,2°
Motion detection : Yes
People detection : Yes
Vertical rotation angle: 0 - 80°
Horizontal rotation angle: 0 - 345°
Lens viewing angle, vertical: 47.1°
Lens viewing angle, horizontal: 86,8°

Image sensor
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")

Video
Video compression formats: H.264B, H.265+, H.264, H.264+, H.265
Video streaming: Yes
Maximum resolution: 2304 x 1296 pixels
Frame rate: 25 / 30 fps
Total megapixels: 3 MP

Night vision
Number of illumination LEDs: 1 / 1
LED type: IR / White light LED
Night vision distance: 30 m
Night vision: Yes

Lens system
Number of lenses: 1
Focal length range: 4 mm
Maximum aperture number: 2
Lens type: Fixed focal length lens


Warranty: Manufacturer warranty 36 months
