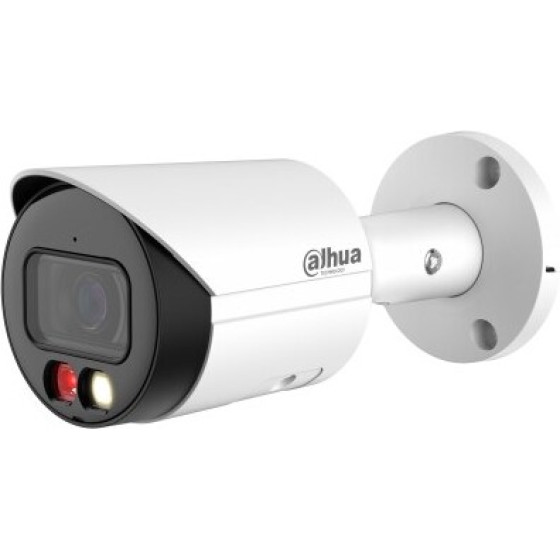

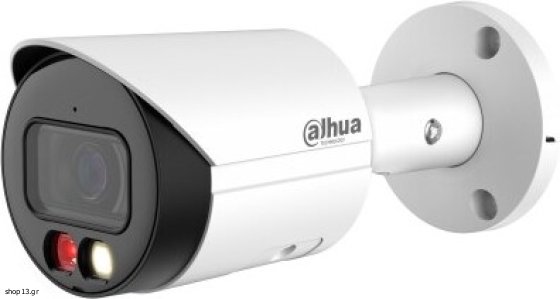

Dahua Technology Wizsense Security Camera Bullet Ip Security Camera Indoor & Outdoor 2960 x 1668 Pixels Ceiling/Wall - (IPC-HFW2549S-S-IL-0360B)

Technical details
Number of video streams: 2
Lens mount interface: M12

Design
Product colour: White, Black
International Protection (IP) code: IP67
Form factor: Bullet
Housing material: Metal
Protection features: Waterproof
Mounting type: Ceiling/wall

Power
Power source type: DC, PoE
Power consumption (typical): 2.2 W
Power consumption (max): 4.6 W
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 5.5 W

Security
Network access storage (NAS): Yes
Privacy protection: Yes
Mirror: Yes
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Tripwire, Intrusion

Operational conditions
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Management features
Web browser: Yes
Management software: Smart PSS, DSS, DMSS

Weight & dimensions
Width: 70 mm
Length: 166.2 mm
Weight: 470 g
Height: 70 mm

Network
Wi-Fi: No
Bluetooth: No
Networking standards: IEEE 802.3af
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Client interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
Number of users: 20 user(s)

System requirements
Mobile operating systems supported: iOS, Android

Performance
Built-in light: Yes
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Alarm input/output: Yes
Placement supported: Indoor & outdoor
Dynamic range: 120 dB
Day/night mode: Yes

Packaging data
Package weight: 590 g

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Voice codecs: PCM, G.711a, G.726, G.711Mu
Signal-to-Noise Ratio (SNR): 56 dB

Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
ROM capacity: 128 MB
Built-in HDD: No
RAM capacity: 256 MB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 90°
Number of Privacy masking areas: 4
Minimum illumination: 0 lx
White balance: Manual, Auto, Street lamp, Natural, Outdoor
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Angle of rotation: 360°
Lens viewing angle, vertical: 45°
Pan range: 0 - 360°
Lens viewing angle, diagonal: 110°
Adjustment shutter speed: Auto/Manual
Lens viewing angle, horizontal: 92°

Other features
Browser supported: IE: IE8, IE9, IE11 Chrome Firefox, Safari

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS
Number of sensors: 1

Video
Supported graphics resolutions: 704 x 480, 352 x 288, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 352 x 240, 2304 x 1296, 704 x 576, 2880 x 1620, 1280 x 720 (HD 720), 2688 x 1512, 640 x 480 (VGA)
Back Light Compensation (BLC): Yes
Maximum resolution: 2960 x 1668 pixels
Bit rate: 12 Kbps - 8192 Kbps
Privacy masking: Yes
Total megapixels: 5 MP
Gain control type: Auto/Manual
Smart IR: Yes
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Noise reduction: Yes
Video compression formats: H.264+, H.264B, H.264, H.265+, H.265
Highlight Compensation (HLC): Yes
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Night vision
Night vision distance: 30 m
LED type: IR/White
Number of illumination LEDs: 2
Night vision: Yes
B/W night vision distance: 30 m

Lens system
Closest focusing distance: 1.7 m
Fixed focal length: 3.6 mm
Recognize distance: 17.1 m
Observe distance: 34.2 m
Identify distance: 8.5 m
Number of lenses: 1
Maximum aperture number: 1.6
Detect distance: 85.4 m


Warranty: Manufacturer warranty 24 months
