Περιγραφή
Power
Output current: 2 A
Power consumption (typical): 10 W
Output voltage: 12 V
Operational conditions
Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 93%
Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
Package weight: 1.43 kg
Package width: 333 mm
Height: 47.6 mm
Package height: 315 mm
Depth: 232.7 mm
Width: 260 mm
Weight: 840 g
Package depth: 89 mm
System requirements
Browser supported: Chrome; IE9 and later; Firefox
Mobile operating systems supported: iOS, Android
Performance
People counting: Yes
Audio formats supported: G.726, PCM, G.711 A-law, G.711 μ-law
Backup function: Yes
Video formats supported: H.264, H.264+, H.265, H.265+
Maximum resolution: 3840 x 2160 pixels
Multi-screen: Yes
Video recording modes: 720p, 1080p, 960p
Video input channels: 8 channels
Image formats supported: MJPEG
Face detection: Yes
Operating system installed: Embedded LINUX
Input bandwidth: 80 Mbit/s
Output bandwidth: 80 Mbit/s
Wireless LAN features
Wi-Fi: No

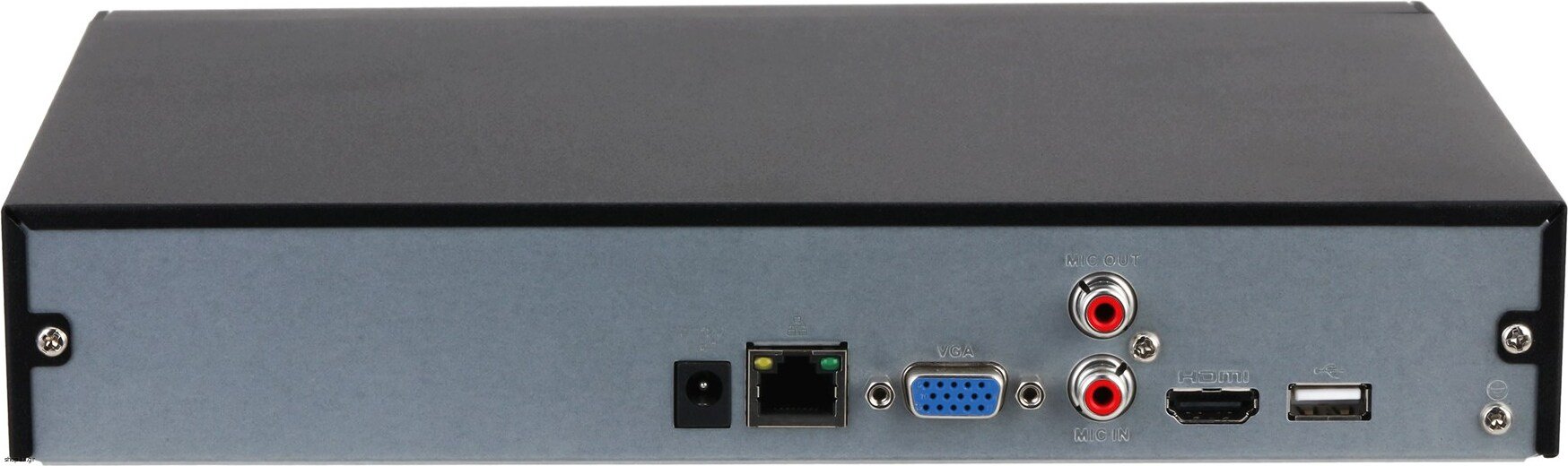

Ports & interfaces
Ethernet LAN data rates: 10, 100
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
VGA (D-Sub) output ports: 1
HDMI output: Yes
Audio RCA outputs: 1
Audio RCA inputs: 1
Hard drive
HDD interface: SATA
Number of HDDs installed: 1
Maximum storage capacity: 16 TB
Warranty: Manufacturer warranty 24 months
