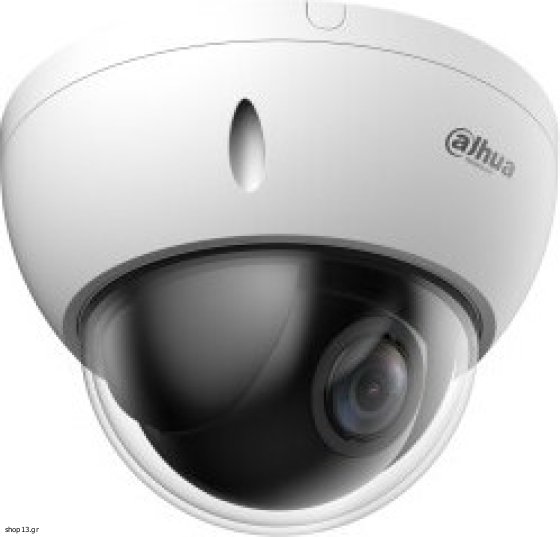

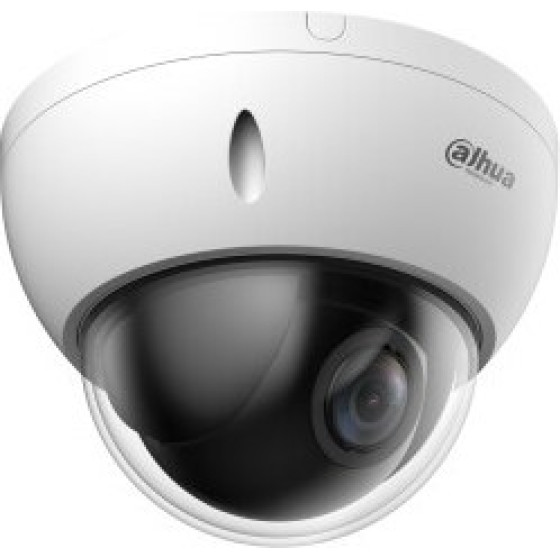

Dahua Technology Wizsense Dome Ip Security Camera Outdoor 2560 x 1440 Pixels Ceiling/Wall/Pole - (SD22404DB-GNY)

Design
Product colour: White
International Protection (IP) code: IP66
Fog proof: Yes
IK code: IK10
Form factor: Dome
Mounting type: Ceiling/Wall/Pole

Power
Power consumption (max): 6.1 W
Power consumption (typical): 2.3 W
Power source type: DC, PoE
DC output current: 1 A
DC output voltage: 12

Security
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Missing object, Intrusion, Face detection, Tripwire, Moving object, Crossing line, Vehicle detection, Abandoned object
Active tampering alarm: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes
Web browser: Yes

Weight & dimensions
Height: 89 mm
Weight: 500 g
Diameter: 12.2 cm

Network
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Bluetooth: No
Quality of Service (QoS) support: Yes
Streaming method: Unicast, Multicast
Number of users: 20 user(s)

Performance
Connectivity technology: Wired
Type: IP security camera
PTZ control: Yes
PTZ modes: 5 Pattern, 8 Tour
PTZ protocols: Pelco-P/D
Day/night mode: Yes
Preset points: Yes
Placement supported: Outdoor
Tour recording: Yes

Packaging data
Package weight: 700 g

Packaging content
Number of cameras: 1

Audio
Signal-to-Noise Ratio (SNR): 55 dB

Storage
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
ROM capacity: 128 MB
Maximum memory card size: 512 GB
RAM capacity: 512 MB
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
White balance: Auto, Street lamp, ATW, Manual, Sodium lamp, Outdoor, Indoor, Natural
Camera shutter speed: 1 - 1/30000 s
Tilt preset speed: 60 °/sec
Lens viewing angle, diagonal: 105.7 - 33.6°
Lens viewing angle, horizontal: 90.3 - 29.4°
Minimum illumination: 0.0005 lx
Pan range: 0 - 355°
Tilt angle range: 0 - 90°
Pan preset speed: 100 °/sec
Lens viewing angle, vertical: 48.5 - 16.6°
Tilt manual speed: 0.1 - 60 °/sec
Camera pan control: Yes
Pan manual speed: 0.1 - 100 °/sec
Camera tilt control: Yes

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Video
Supported graphics resolutions: 1280 x 720 (HD 720), 704 x 576, 1280 x 960, 2304 x 1296, 1920 x 1080 (HD 1080), 2560 x 1440, 352 x 288, 640 x 480 (VGA)
Total megapixels: 4 MP
Maximum resolution: 2560 x 1440 pixels
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Bit rate: H.264: 2816Kbps - 13056Kbps; H.265: 1024Kbps - 7936Kbps
Video compression formats: H.264B, H.265+, H.265, H.264+, H.264, H.264H, M-JPEG
Digital Wide Dynamic Range (DWDR): Yes
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video streaming: Yes
Gain control type: Auto/Manual
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image stabilizer: Yes

Night vision
LED type: IR
Night vision: Yes

Lens system
Optical zoom: 4x
Zoom capability: Yes
Focal length range: 2.8 - 12 mm
Digital zoom: 16x
Minimum aperture number: 1.6
Maximum aperture number: 3
Identify distance: 24 m
Recognize distance: 48 m
Detect distance: 240 m
Auto focus: Yes
Closest focusing distance: 1.5 m
Observe distance: 94.8 m
Number of lenses: 1


Warranty: Manufacturer warranty 36 months
