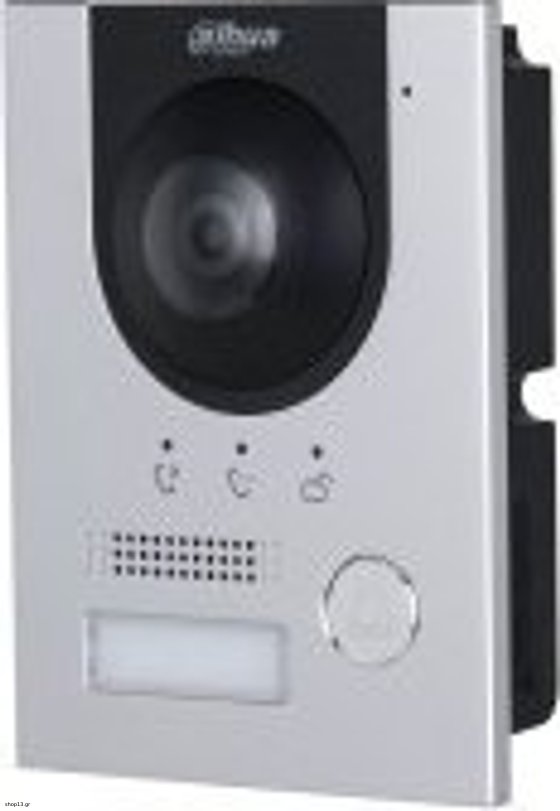

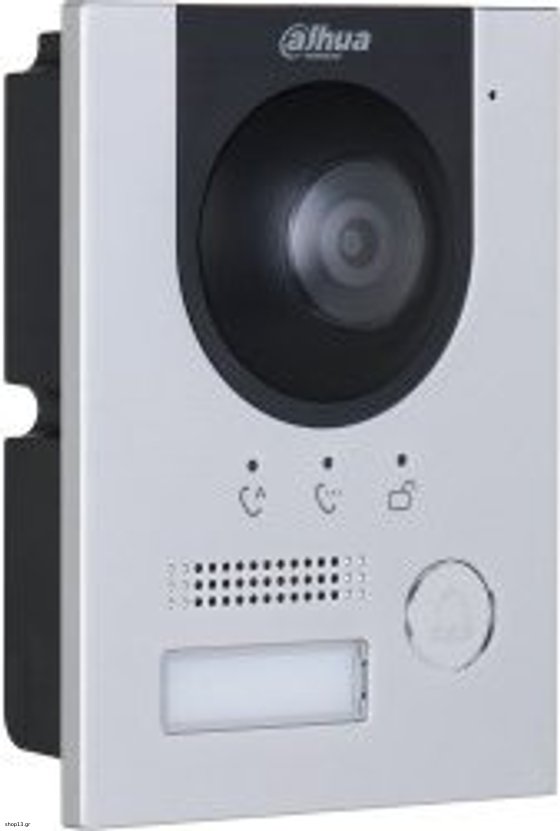

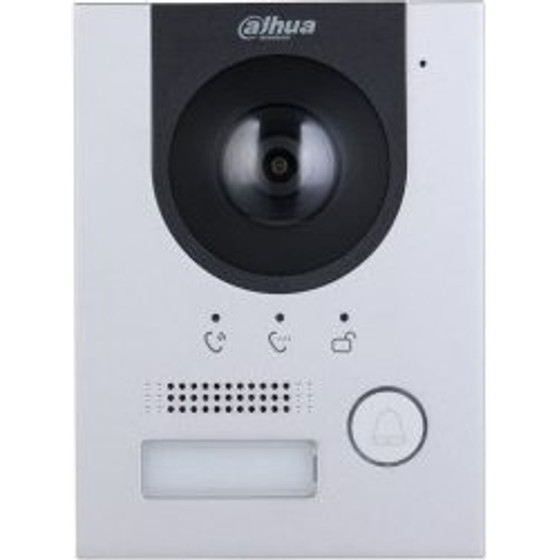

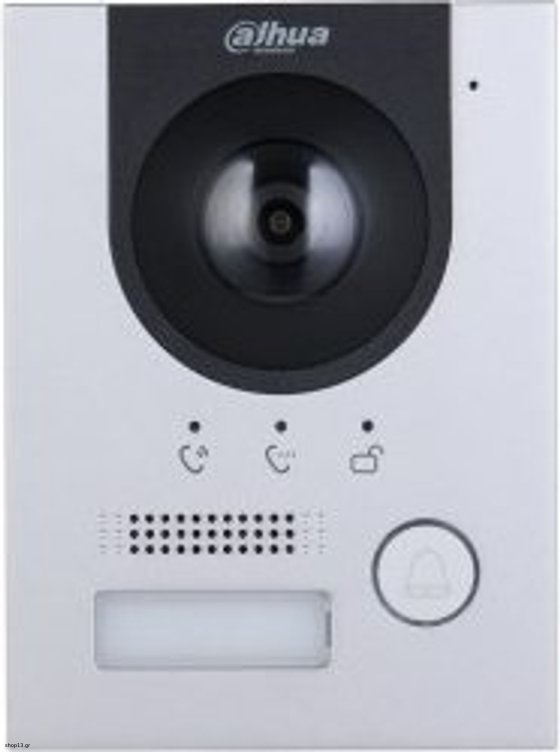

Dahua Technology Video Intercom System 2 Mp Silver - (VTO2202F-P-S3)

Technical details
Wall mountable: Yes
Speakerphone: Yes
Built-in microphone: Yes
Streaming capability: Yes
Door station control: Yes
Connectivity technology: Wired

Design
Housing material: Aluminium
Product colour: Silver
Proper use: Outdoor
IK code: IK07
Control type: Buttons
International Protection (IP) code: IP65
Placement supported: Vertical

Power
Power consumption (standby): 4 W
Outdoor unit power type: DC/PoE
Power consumption (typical): 5 W

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Management features
Web-based management: Yes

Weight & dimensions
Height: 130 mm
Width: 96 mm
Depth: 28.5 mm

Network
Ethernet LAN (RJ-45) ports: 1
Cabling technology: 10/100Base-T(X)
Power over Ethernet (PoE): Yes
Ethernet interface type: Fast Ethernet
Supported network protocols: IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP
Ethernet LAN data rates: 10, 100

Packaging data
Outdoor unit included: Yes
Package weight: 480 g
Indoor unit included: No

Display
Video formats supported: H.264, H.265
Wide Dynamic Range (WDR): Yes

Software
Operating system installed: Embedded LINUX

Audio
Built-in speaker(s): Yes
Voice codecs: G.711u, G.711a, PCM
Number of speakers: 1

Storage
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Camera
Maximum frame rate: 25 fps
Field of view (FOV) angle: 176.7°
Viewing angle, horizontal: 168.6°
Viewing angle, vertical: 87.1°
Megapixel (approx.): 2 MP
Sensor type: CMOS
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")

Logistics data
Quantity per pack: 1 pc(s)

Night vision
LED type: IR
Night vision: Yes

Outdoor unit
RS-485 ports (transmitter): 1


Warranty: Manufacturer warranty 24 months
