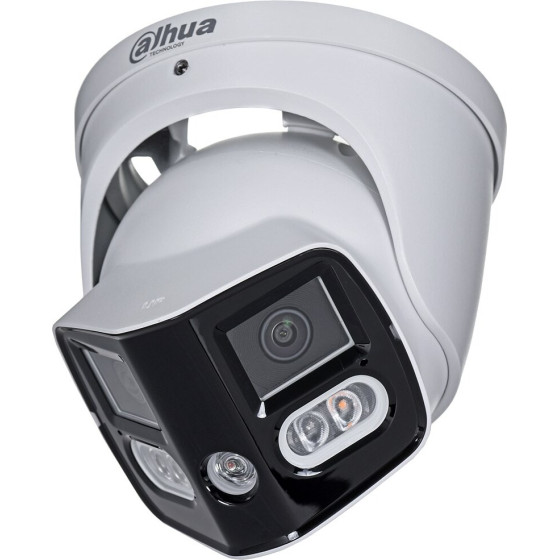

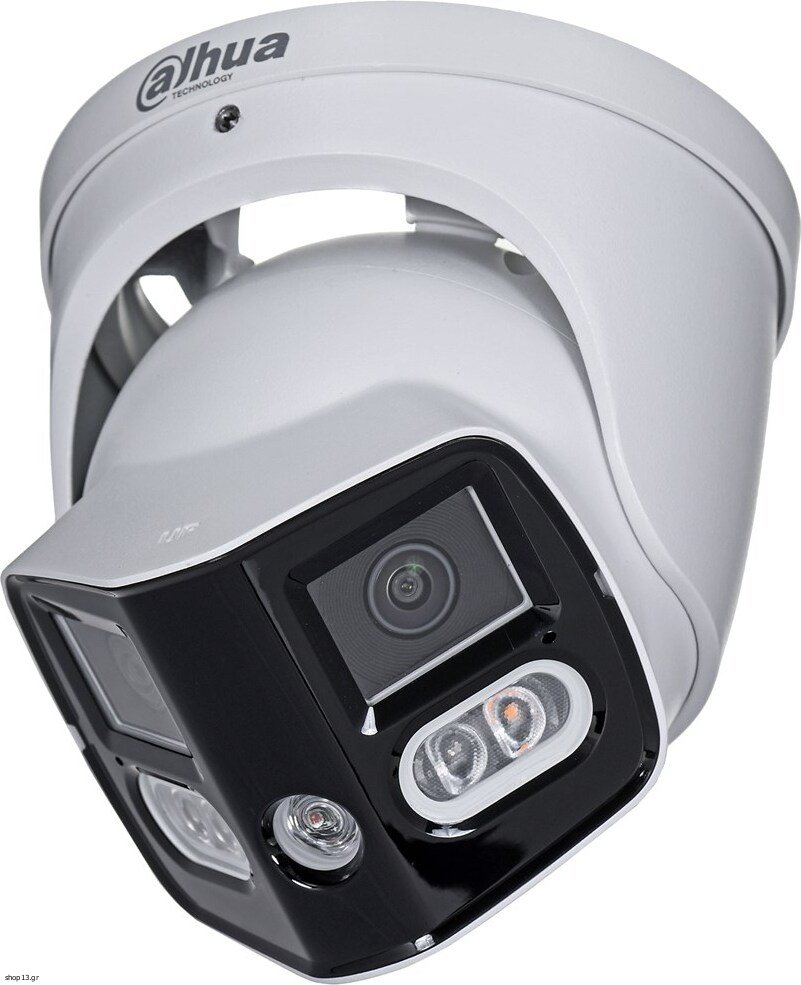

DAHUA Technology security camera Turret IP security camera Outdoor 4096 x 1860 pixels Ceiling - (IPC-PDW3849-A180-E2-AS-PV-0280B)

Design
Product colour: White
Mounting type: Ceiling
International Protection (IP) code: IP67
Housing material: Metal
Form factor: Turret

Power
Power source type: DC, PoE
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 4.95 W
Power consumption (typical): 3.95 W

Operational conditions
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C

Weight & dimensions
Weight: 990 g
Height: 135.2 mm
Diameter: 12.2 cm

Network
Bluetooth: No
Number of users: 20 user(s)
Wi-Fi: No
Ethernet LAN: Yes

Performance
Connectivity technology: Wired
Type: IP security camera
Alarm input/output: Yes
Dynamic range: 120 dB
Placement supported: Outdoor
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes

Packaging data
Package weight: 1.15 kg

Packaging content
Number of cameras: 1

Audio
Audio output channels: 1 channels
Built-in microphone: Yes
Built-in speaker(s): Yes
Audio formats supported: G.726, G.723, G.711 A-law, PCM
Audio input channels: 1 channels

Storage
ROM capacity: 128 MB
Internal memory: 1000 MB
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 77°
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 86°
White balance: Auto, Manual, Outdoor, Natural, Custom modes, Street lamp
Adjustment shutter speed: Auto/Manual
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100,000
Number of Privacy masking areas: 4
Pan range: 0 - 360°
Angle of rotation: 360°
Minimum illumination: 0.0005 lx

Image sensor
Sensor type: HD CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Video
Maximum resolution: 4096 x 1860 pixels
Supported graphics resolutions: 960 x 432, 1200 x 536, 3040 x 1368, 3632 x 1632
Video compression formats: H.264B, H.264H, H.265+, H.264, H.264+, H.265
Gain control type: Auto
Video streaming: Yes
Total megapixels: 8 MP
Bit rate: 6 kbps -16384 kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 20 fps
Noise reduction: Yes
Noise reduction technology: 3D noise reduction

Night vision
Night vision: Yes
Night vision distance: 25 m
Number of illumination LEDs: 2 / 2
LED type: IR / White light LED

Lens system
Number of lenses: 2
Identify distance: 5.1 m
Lens diameter: 2.8 mm
Recognize distance: 10.1 m
Maximum aperture number: 1.4
Observe distance: 20.2 m
Detect distance: 50.6 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: warranty 24 months
