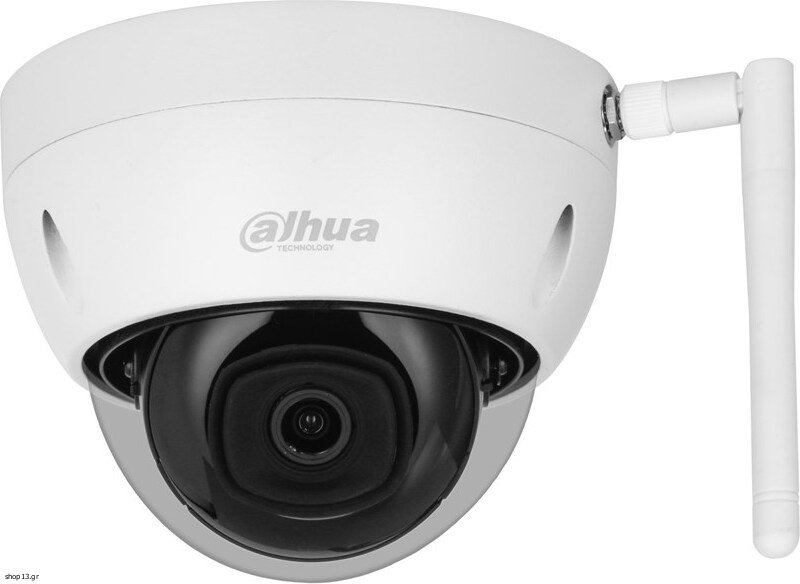

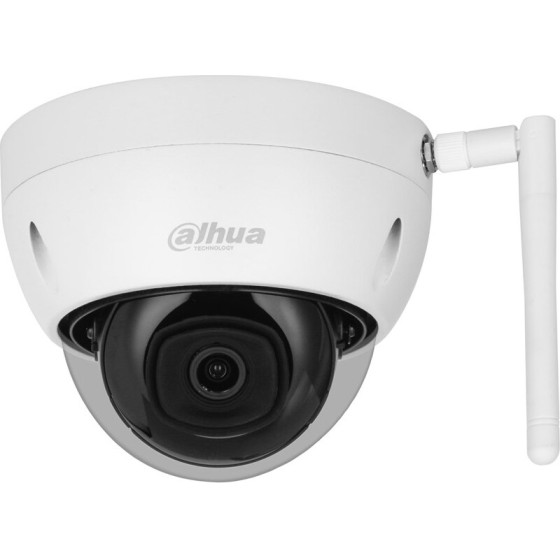

DAHUA Technology Mobile Camera DH-IPC-HDBW1430DE-SW security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling - (IPC-HDBW1430DE-SW-0280B)

Design
Mounting type: Ceiling
International Protection (IP) code: IP67
IK code: IK10
Housing material: Metal
Form factor: Dome
Product colour: White

Power
DC output voltage: 12
Power source type: DC, PoE

Security
Mirror: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion
Detection distance: 80 m

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C

Management features
Web browser: Yes

Weight & dimensions
Weight: 414 g
Diameter: 11.1 cm
Height: 88.7 mm

Network
Number of users: 6 user(s)
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Bluetooth: No
Wi-Fi: Yes

System requirements
Mobile operating systems supported: iOS, Android

Performance
Placement supported: Indoor & outdoor
Remote viewing: Yes
Day/night mode: Yes
Antenna type: External
Type: IP security camera
Connectivity technology: Wired & Wireless
Antennas quantity: 1
Wide Dynamic Range (WDR): Yes

Packaging data
Package weight: 592 g

Packaging content
Number of cameras: 1

Audio
Audio system full duplex: Yes
Audio codecs: G.711a; G.711Mu; PCM; G.726; G.723
Audio system: 1-way

Storage
Maximum memory card size: 256 GB
Built-in HDD: No
ROM capacity: 16 MB
Card reader integrated: Yes
Internal memory: 64 MB
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, horizontal: 90°
Camera shutter type: Electronic
Pan range: 0 - 355°
Adjustment shutter speed: Auto/Manual
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 355°

Image sensor
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes

Video
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Video compression formats: H.264H, H.265+, H.264+
Video streaming: Yes
Smart IR: Yes
Video intelligence analytic: Yes
Video recording: Yes
Video formats supported: H.265, H.264, H.264B
Back Light Compensation (BLC): Yes
Total megapixels: 4 MP
Frame rate: 30 fps
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2560 x 1440, 1280 x 720 (HD 720), 1280 x 960, 2304 x 1296
Highlight Compensation (HLC): Yes
Supported video modes: 720p, 1080p
Maximum resolution: 2560 x 1440 pixels
Noise reduction: Yes
Bit rate: 3 Kbps - 20480 Kbps
Digital Wide Dynamic Range (DWDR): Yes

Night vision
Night vision: Yes
Number of illumination LEDs: 3
LED type: IR
Night vision distance: 30 m

Lens system
Number of lenses: 1
Maximum aperture number: 2
Fixed focal length (thermal module): 2.8 mm
Identify distance: 6.8 m
Recognize distance: 13.6 m
Auto focus: Yes
Detect distance: 68 m
Observe distance: 27.2 m

Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes


Warranty: warranty 36 months
