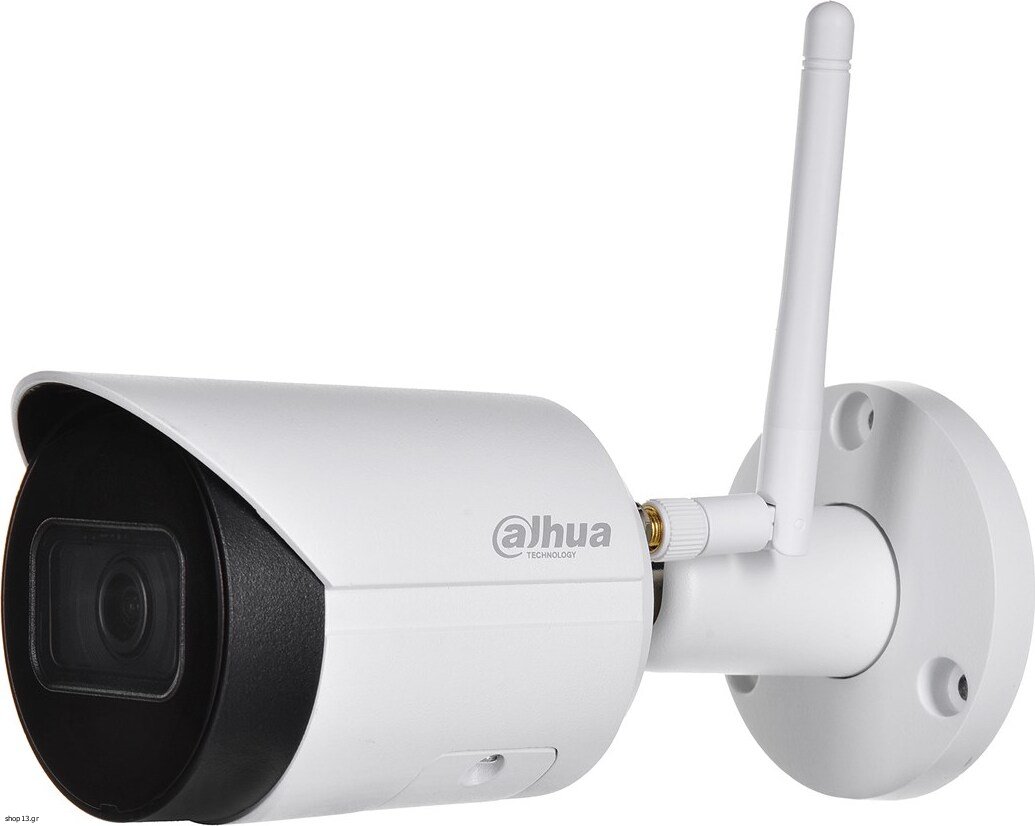

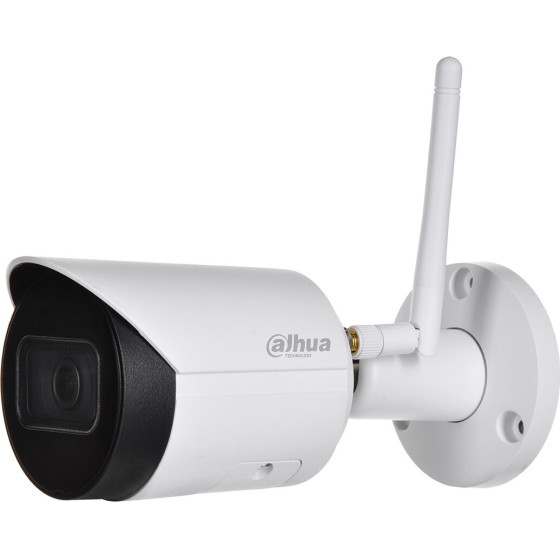

DAHUA Technology IPC-HFW1430DSP-SAW-0280B Bullet IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall - (IPC-HFW1430DS-SAW-0280B)

Design
Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP67
Form factor: Bullet

Power
DC output voltage: 12
Power source type: DC
Power consumption (max): 4.1 W
Power consumption (typical): 2 W

Security
Video motion detection: Yes
Active tampering alarm: Yes
Mirror: Yes

Operational conditions
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 70 °C

Management features
Web browser: Yes
Smartphone/tablet remote support: Yes
Management software: Smart PSS; DSS; DMSS

Weight & dimensions
Diameter: 7 cm
Width: 70 mm
Weight: 477.9 g
Depth: 166.2 mm
Height: 128.6 mm

Network
Streaming method: Multicast
Ethernet LAN: Yes
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b
Ethernet interface type: Fast Ethernet
Wi-Fi: Yes
Supported network protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;

System requirements
Mobile operating systems supported: iOS, Android

Performance
Day/night mode: Yes
Placement supported: Indoor & outdoor
Connectivity technology: Wired & Wireless
Antenna type: External
Antennas quantity: 1
Wide Dynamic Range (WDR): Yes
Type: IP security camera

Packaging data
Package weight: 696.5 g

Packaging content
Number of cameras: 1

Audio
Signal-to-Noise Ratio (SNR): 56 dB
Built-in microphone: Yes

Storage
ROM capacity: 16 MB
Maximum memory card size: 256 GB
Internal memory: 64 MB
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Camera shutter type: Mechanical, Electronic
White balance: Outdoor, Auto, Manual, Street lamp, Natural
Pan range: 0 - 360°
Camera shutter speed: 1/3 -1/100000 s
Lens viewing angle, vertical: 50°
Lens viewing angle, diagonal: 107°
Lens viewing angle, horizontal: 90°
Tilt angle range: 0 - 90°

Image sensor
Progressive scan: Yes
Number of sensors: 1
Number of effective pixels (H x V): 2560 x 1440 pixels
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Video
Region of Interest (ROI) encoding: Yes
Digital Wide Dynamic Range (DWDR): Yes
Video compression formats: H.264H, H.265, H.264B, H.264
Noise reduction: Yes
Smart IR: Yes
Supported video modes: 720p, 1080p
Total megapixels: 4 MP
Gain control type: Auto
Frame rate: 30 fps
Noise reduction technology: 3D noise reduction
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video streaming: Yes
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2304 x 1296, 1280 x 960, 1280 x 720 (HD 720), 2560 x 1440
Maximum resolution: 2560 x 1440 pixels
Back Light Compensation (BLC): Yes
Bit rate: H264: 24 kbps-4096 kbps H265: 9 kbps-4096 kbps

Night vision
Number of illumination LEDs: 1
Night vision: Yes
LED type: IR
Night vision distance: 30 m

Lens system
Recognize distance: 13.6 m
Detect distance: 68 m
Maximum aperture number: 2
Closest focusing distance: 1 m
Number of lenses: 1
Focal length range: 2.8 mm
Identify distance: 6.8 m
Observe distance: 27.2 m


Warranty: Manufacturer warranty 36 months
