Περιγραφή
Processor
Built-in processor: Yes
Features
LED indicators: Yes
Product colour: Black
Rack capacity: 1U
Rack mounting: Yes
SMD Plus: Yes
Power
Output current: 2 A
Power consumption (typical): 10 W
Output voltage: 12 V
Operational conditions
Operating relative humidity (H-H): 10 - 93%
Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -20 - 60 °C

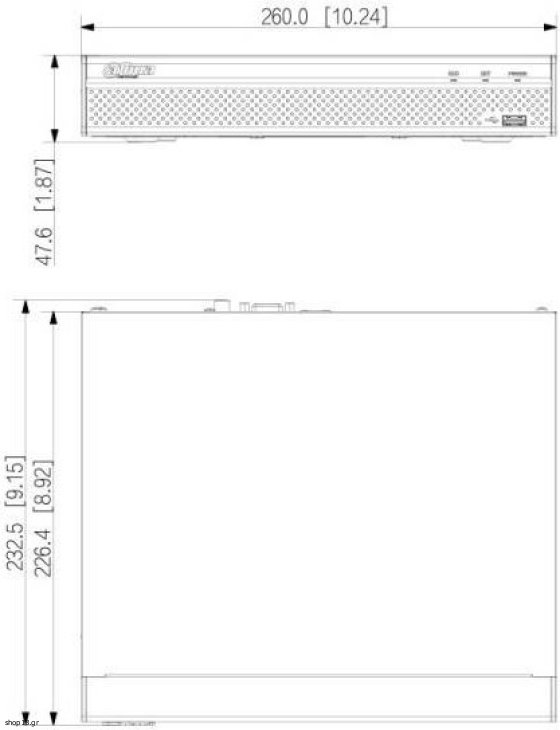

Weight & dimensions
Package height: 89 mm
Package width: 334 mm
Package depth: 314 mm
Package weight: 1.38 kg
Height: 47.6 mm
Depth: 232.5 mm
Weight: 810 g
Width: 260 mm
System requirements
Mobile operating systems supported: iOS, Android
Browser supported: Chrome; IE9 or later; Firefox
Performance
Maximum frame rate: 30 fps
Audio codecs: PCM; G711A; G711U; G726
Video motion detection: Yes
Video codecs: Smart H.265; H.265; Smart H.264; H.264
Audio formats supported: G.711 μ-law, PCM, G.711 A-law, G.726
Backup function: Yes
Multi-screen: Yes
Input bandwidth: 80 Mbit/s
Operating system installed: Embedded LINUX
Playback modes: Pause, Play, Stop
Video input channels: 8 channels
Output bandwidth: 60 Mbit/s

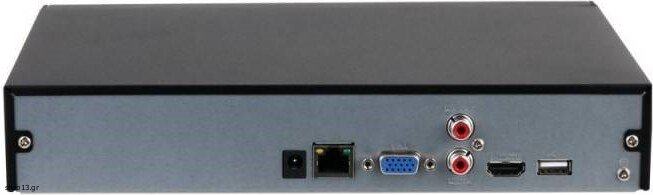

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100
HDMI output: Yes
Audio RCA outputs: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
Power over Ethernet (PoE): No
HDMI ports quantity: 1
Audio RCA inputs: 1
Hard drive
Maximum storage capacity: 20 TB
HDD interface: SATA
Number of HDDs supported: 1
Safety warning
Warnings: Do not expose the device to moisture or extreme temperatures.
Warranty: Manufacturer warranty 24 months
