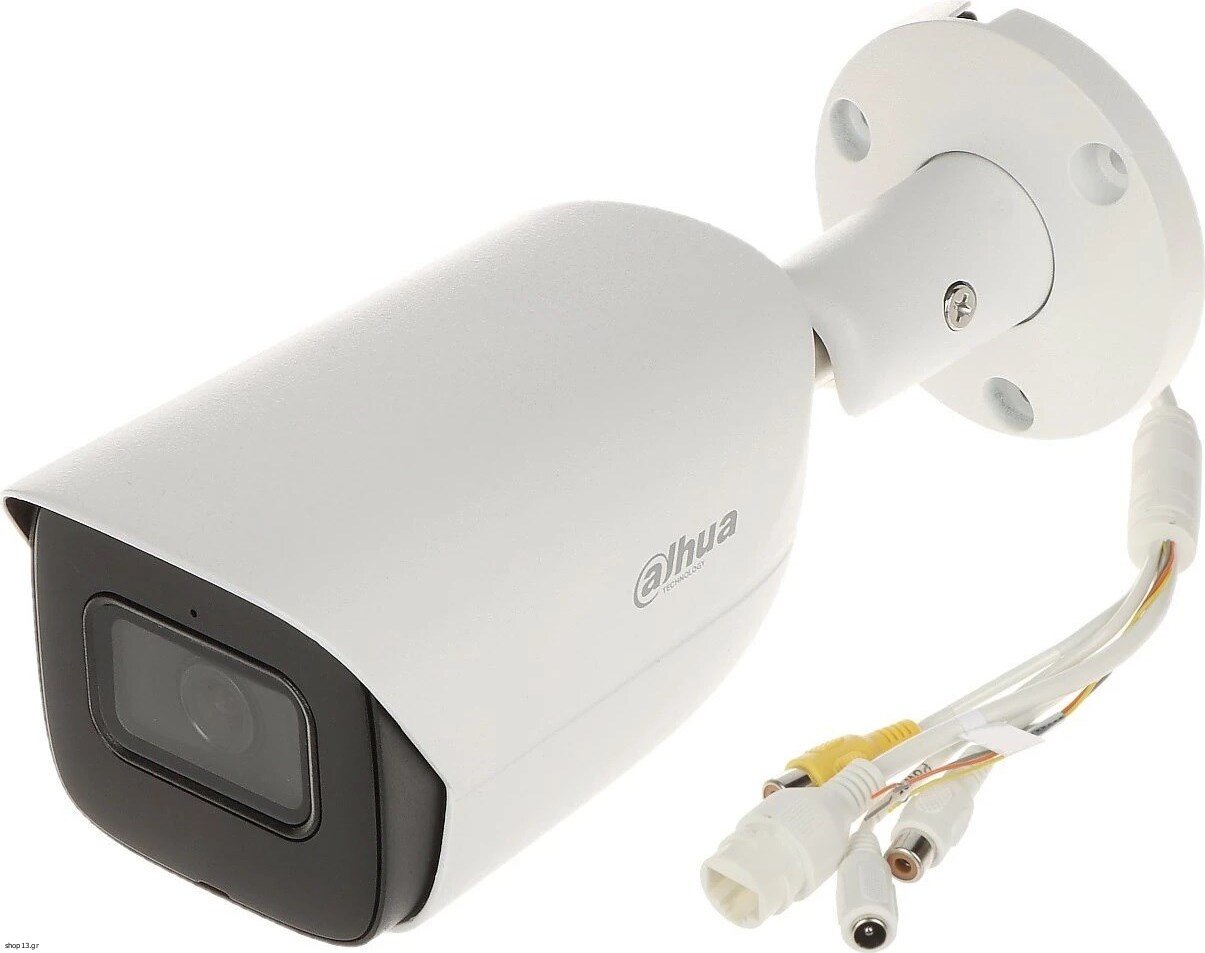

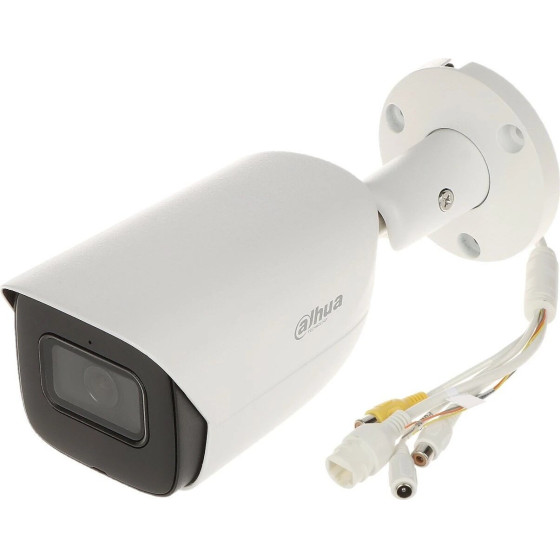

Dahua Ip Camera White - (IPC-HFW3842E-AS-0280B)
[Κωδικός : 761914]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Design
Mounting type: Wall/ceiling
Housing material: Metal
Form factor: Bullet
Product colour: White
International Protection (IP) code: IP67
Power
Power consumption (Power over Ethernet (PoE)): 7.5 W
DC output voltage: 12, 48
Power source type: DC, PoE
Power consumption (typical): 3.6 W
Power consumption (max): 6.1 W
Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Web browser: Yes
Web-based management: Yes
Weight & dimensions
Width: 70.5 mm
Depth: 192.7 mm
Weight: 590 g
Height: 66.4 mm
Network
4G LTE: No
Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
Networking standards: IEEE 802.3af, IEEE 802.1x
Bluetooth: No
Wi-Fi: No
System requirements
Mobile operating systems supported: Android, iOS
Performance
Signal-to-Noise Ratio (SNR): 56 dB
Placement supported: External / Internal
Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): 120 dB
Packaging content
Number of cameras: 1
Audio
Two-way talk: Yes
Audio codecs: G.711a / G.711Mu / G.723 / G.726 / PCM
Built-in loudspeaker: Yes
Built-in microphone: Yes
Storage
RAM capacity: 1024 MB
ROM capacity: 128 MB
Ports & interfaces
Maximum memory card size: 256 GB
Number of memory card slots: 1
RCA input: 1
Alarm input/output: No
Audio RCA outputs: 1
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Ethernet LAN (RJ-45) ports: 1
Camera
Horizontal rotation angle: 0 - 360°
Motion detection : Yes
Viewing angle, diagonal: 134°
Vertical rotation angle: 0 - 90°
People detection : Yes
Lens viewing angle, horizontal: 110°
Lens viewing angle, vertical: 57°
Minimum illumination: 0.003 lx
Adjustment shutter speed: Auto/Manual
Camera shutter speed: 1/3 - 1/100000 s
Image sensor
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: HD CMOS
Number of sensors: 1
Progressive scan: Yes
Video
Video compression formats: H.264H, H.265+, H.264B, H.265, M-JPEG, H.264, H.264+
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Supported graphics resolutions: 1280 x 720, 640 x 480 (VGA), 3072 x 2048, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 1728, 704 x 576, 1280 x 960, 352 x 288, 704 x 480, 2688 x 1520, 2560 x 1440, 3840 x 2160, 2592 x 1944, 352 x 240, 2304 x 1296
Frame rate: 25 / 30 fps
Maximum resolution: 3840 x 2160 pixels
Bit rate: 3 kbps - 16384 kbps
Total megapixels: 8 MP
Night vision
Night vision: Yes
LED type: IR
Night vision distance: 30 m
Number of illumination LEDs: 1
Lens system
Number of lenses: 1
Observe distance (wide): 35.7 m
Focal length range: 2.8 mm
Identify distance (wide): 8.9 m
Recognize distance (wide): 17.8 m
Maximum aperture number: 1.6
Detect distance (wide): 89.2 m
Lens type: Fixed focal length lens
Closest focusing distance: 1.9 m
Aperture type: Permanent
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Warranty: Manufacturer warranty 36 months
