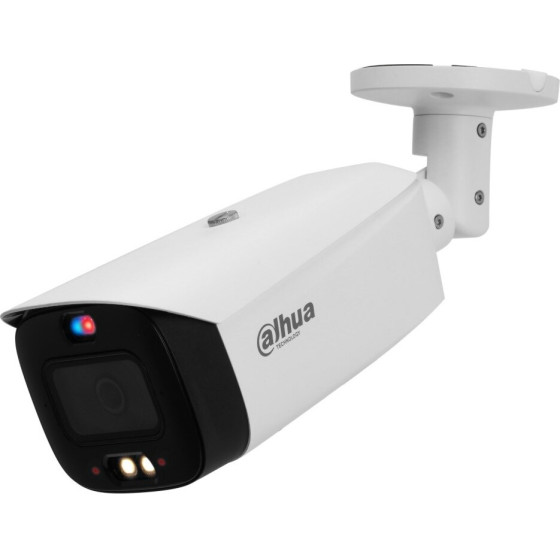

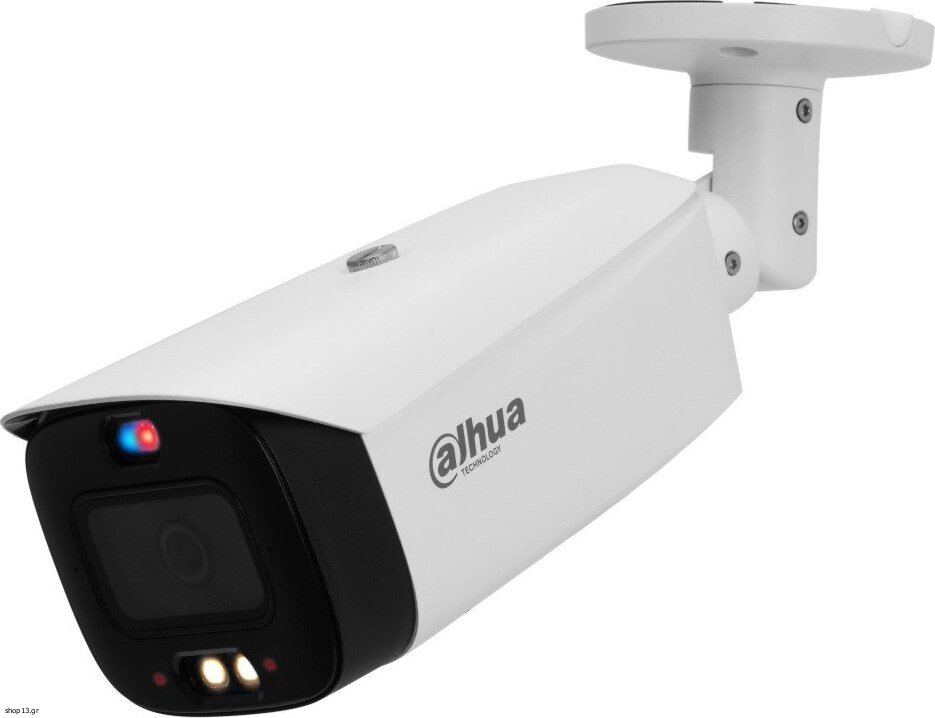

Dahua Ip Camera White - (IPC-HFW3549T1-AS-PV-0280B-S4)
[Κωδικός : 761913]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Design
Product colour: White
Form factor: Tube/dome
Housing material: Metal, Plastic
Mounting type: Wall/ceiling
International Protection (IP) code: IP67
Power
Power consumption (typical): 3.3 W
Power consumption (max): 6.8 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 8.2 W
DC output voltage: 12, 48
Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Web-based management: Yes
Web browser: Yes
Weight & dimensions
Width: 94.4 mm
Weight: 1 kg
Height: 84.7 mm
Depth: 288 mm
Network
Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
4G LTE: No
Bluetooth: No
Networking standards: IEEE 802.3af
Wi-Fi: No
System requirements
Mobile operating systems supported: Android, iOS
Performance
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): 120 dB
Signal-to-Noise Ratio (SNR): 56 dB
Placement supported: Outdoor
Packaging content
Number of cameras: 1
Audio
Number of microphones: 2
Audio codecs: G.711a / G.711Mu / G.723 / G.726 / PCM
Built-in microphone: Yes
Two-way talk: Yes
Built-in loudspeaker: Yes
Storage
ROM capacity: 128 MB
RAM capacity: 512 MB
Ports & interfaces
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Audio RCA outputs: 1
Alarm input/output: Yes
RCA input: 1
Maximum memory card size: 256 GB
Number of memory card slots: 1
Camera
Minimum illumination: 0.003 lx
People detection : Yes
Lens viewing angle, horizontal: 97°
Viewing angle, diagonal: 128°
Vertical rotation angle: 0 - 90°
Lens viewing angle, vertical: 70°
Horizontal rotation angle: 0 - 360°
Adjustment shutter speed: Auto/Manual
Camera shutter speed: 1/3 - 1/100000 s
Motion detection : Yes
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of sensors: 1
Sensor type: HD CMOS
Video
Total megapixels: 5 MP
Maximum resolution: 2960 x 1668 pixels
Video streaming: Yes
Video compression formats: H.264+, H.264H, H.264, H.264B, H.265+, M-JPEG, H.265
Frame rate: 20 fps
Night vision
LED type: IR / White light LED
Night vision distance: 30 m
Night vision: Yes
Number of illumination LEDs: 2 / 2
Lens system
Lens type: Fixed focal length lens
Number of lenses: 1
Focal length range: 2.8 mm
Maximum aperture number: 1
Closest focusing distance: 1.5 m
Aperture type: Permanent
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Warranty: Manufacturer warranty 36 months
