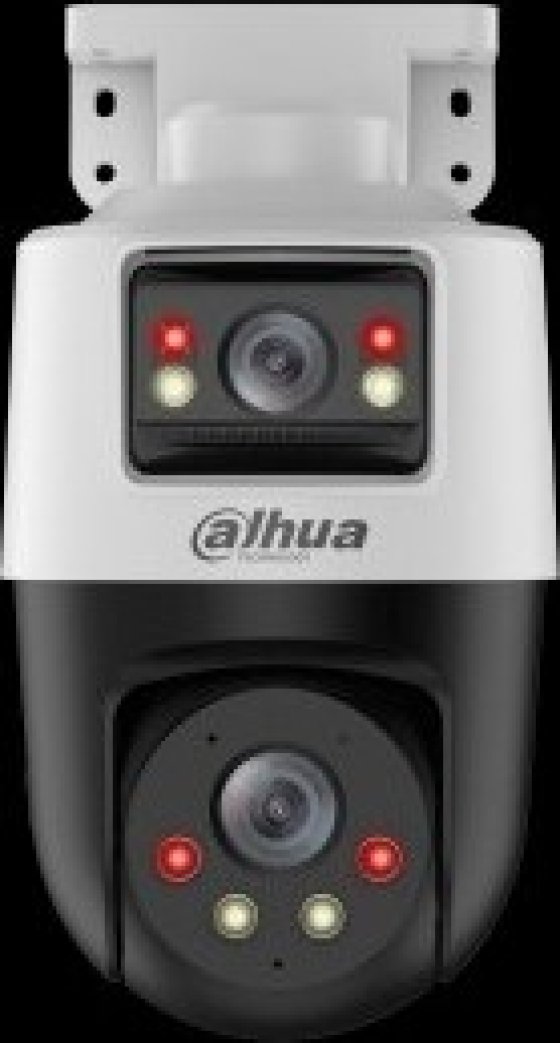

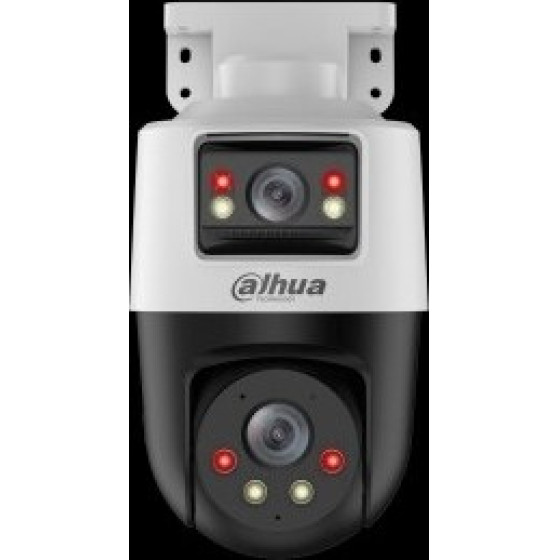

Dahua Ip Camera - (SDT2A200-2F-NB-A-PV)
[Κωδικός : 761903]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Design
Product colour: White, Black
Form factor: Dome
International Protection (IP) code: IP66
Mounting type: Ceiling/wall
Power
Power source type: DC
Power consumption (typical): 4 W
Power consumption (max): 12 W
DC output current: 1.5 A
DC output voltage: 12
Operational conditions
Operating temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
Height: 210 mm
Weight: 1 kg
Network
Bluetooth: No
Supported network protocols: UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SS L;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Streaming method: Multicast, Unicast
Number of users: 20 user(s)
System requirements
Mobile operating systems supported: Android, Windows Mobile, iOS
Performance
Type: IP security camera
PTZ control: Yes
Built-in light: Yes
PTZ modes: Preset sequence
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Day/night mode: Yes
Preset points: Yes
Placement supported: Outdoor
Packaging content
Number of cameras: 1
Audio
Signal-to-Noise Ratio (SNR): 55 dB
Audio formats supported: G.711Mu, G.711a, PCM, G.726
Audio output channels: 1.0 channels
Audio input channels: 1.0 channels
Built-in speaker(s): Yes
Storage
Card reader integrated: Yes
Maximum memory card size: 256 GB
Internal memory: 128 MB
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
ROM capacity: 128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Pan preset speed: 35.7 °/sec
Camera shutter type: Electronic
Tilt speed: 25 °/sec
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, diagonal: 100°
Lens viewing angle, horizontal: 86°
Tilt angle range: 0 - 90°
Pan range: 0 - 325°
White balance: Lamp, Outdoor, Indoor, Street lamp, Auto, Manual, Sodium lamp
Minimum illumination: 0 lx
Lens viewing angle, vertical: 47°
Camera tilt control: Yes
Camera pan control: Yes
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Video
Supported graphics resolutions: 1920 x 1080, 1280 x 720, 320 x 240, 640 x 360
Maximum resolution: 1920 x 1080 pixels
Noise reduction: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Digital Wide Dynamic Range (DWDR): Yes
Frame rate: 30 fps
Supported video modes: 360p, 1080p, 720p
Total megapixels: 2 MP
Noise reduction technology: 2D noise reduction, 3D noise reduction
Video compression formats: H.265+, H.264M, H.264+, H.264H, H.264B, H.264, H.265
Video streaming: Yes
Gain control type: Auto/Manual
Night vision
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Lens system
Maximum aperture number: 1.6
Detect distance: 53.7 m
Observe distance: 21.3 m
Identify distance: 5.3 m
Fixed focal length: 4 mm
Recognize distance: 10.7 m
Closest focusing distance: 0.8 m
Warranty: Manufacturer warranty 24 months
Product colour: White, Black
Form factor: Dome
International Protection (IP) code: IP66
Mounting type: Ceiling/wall
Power
Power source type: DC
Power consumption (typical): 4 W
Power consumption (max): 12 W
DC output current: 1.5 A
DC output voltage: 12
Operational conditions
Operating temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
Height: 210 mm
Weight: 1 kg
Network
Bluetooth: No
Supported network protocols: UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SS L;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Streaming method: Multicast, Unicast
Number of users: 20 user(s)
System requirements
Mobile operating systems supported: Android, Windows Mobile, iOS
Performance
Type: IP security camera
PTZ control: Yes
Built-in light: Yes
PTZ modes: Preset sequence
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Day/night mode: Yes
Preset points: Yes
Placement supported: Outdoor
Packaging content
Number of cameras: 1
Audio
Signal-to-Noise Ratio (SNR): 55 dB
Audio formats supported: G.711Mu, G.711a, PCM, G.726
Audio output channels: 1.0 channels
Audio input channels: 1.0 channels
Built-in speaker(s): Yes
Storage
Card reader integrated: Yes
Maximum memory card size: 256 GB
Internal memory: 128 MB
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
ROM capacity: 128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Pan preset speed: 35.7 °/sec
Camera shutter type: Electronic
Tilt speed: 25 °/sec
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, diagonal: 100°
Lens viewing angle, horizontal: 86°
Tilt angle range: 0 - 90°
Pan range: 0 - 325°
White balance: Lamp, Outdoor, Indoor, Street lamp, Auto, Manual, Sodium lamp
Minimum illumination: 0 lx
Lens viewing angle, vertical: 47°
Camera tilt control: Yes
Camera pan control: Yes
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Video
Supported graphics resolutions: 1920 x 1080, 1280 x 720, 320 x 240, 640 x 360
Maximum resolution: 1920 x 1080 pixels
Noise reduction: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Digital Wide Dynamic Range (DWDR): Yes
Frame rate: 30 fps
Supported video modes: 360p, 1080p, 720p
Total megapixels: 2 MP
Noise reduction technology: 2D noise reduction, 3D noise reduction
Video compression formats: H.265+, H.264M, H.264+, H.264H, H.264B, H.264, H.265
Video streaming: Yes
Gain control type: Auto/Manual
Night vision
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Lens system
Maximum aperture number: 1.6
Detect distance: 53.7 m
Observe distance: 21.3 m
Identify distance: 5.3 m
Fixed focal length: 4 mm
Recognize distance: 10.7 m
Closest focusing distance: 0.8 m
Warranty: Manufacturer warranty 24 months
