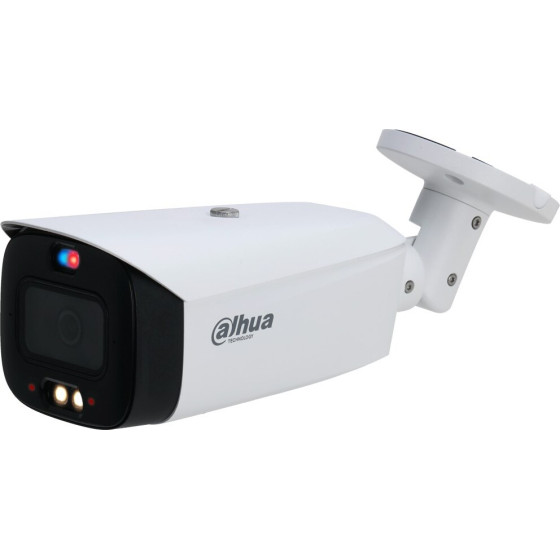

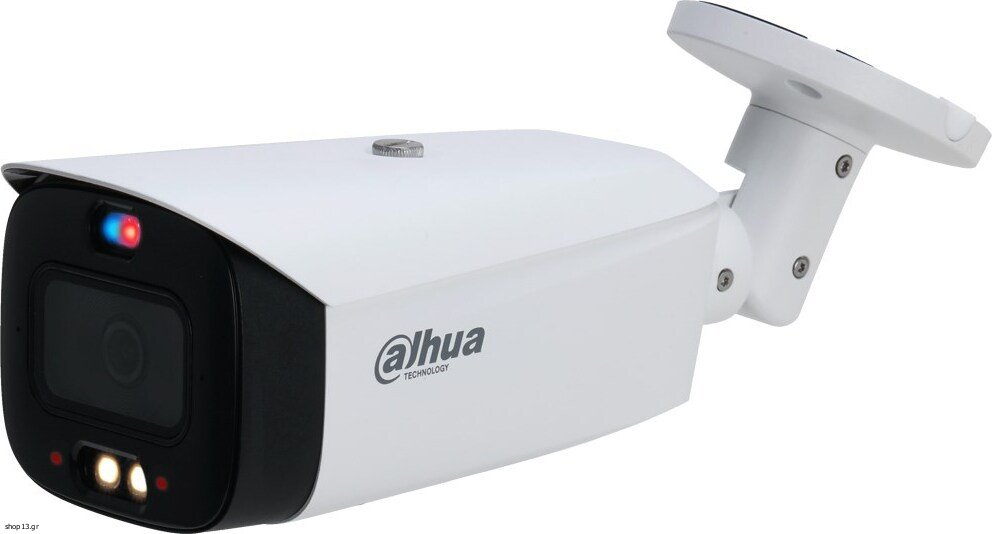

Dahua Ip Camera IPC-HFW3849T1-AS-PV-0280B-S4 Tioc 2.0 - (IPC-HFW3849T1-A)

Design
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Product colour: White
Form factor: Bullet

Power
Power consumption (typical): 4.5 W
DC output voltage: 12
Power consumption (max): 7.6 W
Power consumption (Power over Ethernet (PoE)): 9.1 W
Power source type: DC, PoE

Security
Voice commands: Yes
Number of Privacy masking areas (panoramic camera): 8
IP address filtering: Yes
Light effects: Yes
Mirror: Yes
Alarm clock: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion, Tripwire
Sound effects: Yes
Video motion detection: Yes
LED indicators: Alarm

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 60 °C

Weight & dimensions
Length: 288.4 mm
Depth: 84.7 mm
Width: 94.4 mm
Weight: 1 kg
Package weight: 1.23 kg

Network
Wi-Fi: No
Streaming method: Multicast
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20 user(s)
Networking standards: IEEE 802.1x, IEEE 802.3af
Bluetooth: No
Quality of Service (QoS) support: Yes

Performance
Day/night mode: Yes
Wide Dynamic Range (WDR): 120 dB
Alarm input/output: Yes
Placement supported: External / Internal
Connectivity technology: Wired
Type: IP security camera

Packaging content
Number of cameras: 1

Audio
Voice codecs: G.711a, G.726, PCM, G.723, G.711Mu
Two-way talk: Yes
Number of microphones: 2
Speakerphone: Yes
Built-in microphone: Yes

Storage
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
Card reader integrated: Yes
Maximum memory card size: 256 GB
Built-in HDD: No
ROM capacity: 128 MB

Ports & interfaces
RCA input: 1
Audio RCA outputs: 1
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, vertical: 55°
Lens viewing angle, diagonal: 125°
Lens viewing angle, horizontal: 106°
Adjustment shutter speed: Auto/Manual
White balance: Outdoor, Street lamp, Auto, Daylight, Natural, Manual
Camera shutter speed: 1/3 - 1/100000 s
Minimum illumination: 0.004 lx
Pan range: 0 - 360°
Angle of rotation: 360°
Camera pan control: Yes
Camera tilt control: Yes
Maximum frame rate: 30 fps
Tilt angle range: 0 - 90°

Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1

Video
Video compression formats: H.265, H.264, M-JPEG, H.265+, H.264+
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Total megapixels: 8 MP
Region of Interest (ROI) encoding: Yes
Frame rate: 30 fps
Bit rate: H.264: 32 Kbps-8192 Kbps, H.265: 12 Kbps-8192 Kbps
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Privacy masking: Yes
Gain control type: Auto/Manual
Supported graphics resolutions: 640 x 480 (VGA), 3072 x 2048, 2560 x 1440, 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960, 3840 x 2160, 2592 x 1944, 352 x 288, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 1728, 1280 x 720 (HD 720), 704 x 480, 2688 x 1520
Maximum resolution: 3840 x 2160 pixels

Night vision
Night vision distance: 30 m
Number of illumination LEDs: 4
LED type: IR / White light LED
Night vision: Yes

Lens system
Detect distance (wide): 91 m
Fixed focal length: 2.8 mm
Recognize distance (wide): 18.2 m
Maximum aperture number: 1
Observe distance (wide): 36.4 m
Closest focusing distance: 2 m
Identify distance (wide): 9.1 m
Number of lenses: 1

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 36 months
