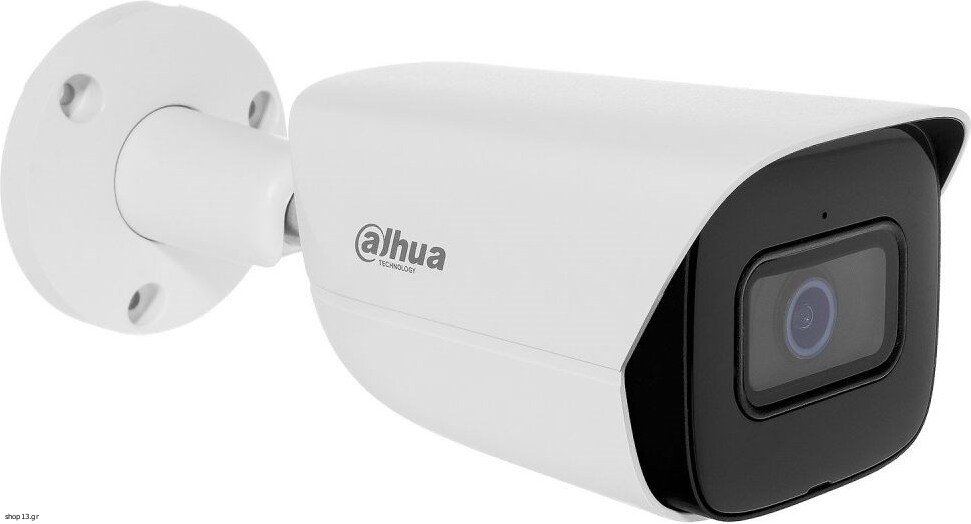

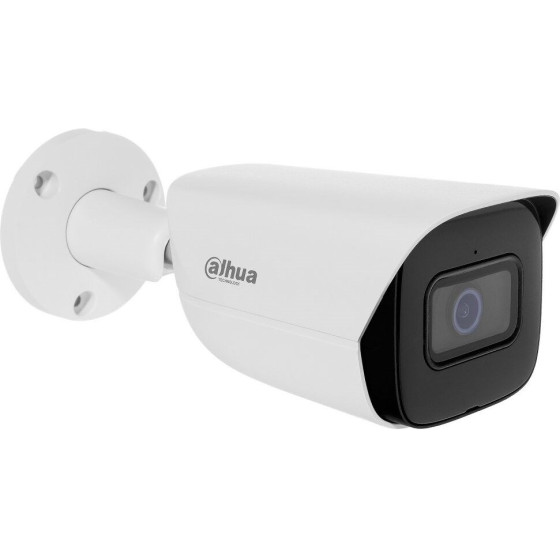

Dahua Ip Camera - (IPC-HFW3541E-AS-0280B-S2)
[Κωδικός : 761929]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Design
International Protection (IP) code: IP67
Housing material: Metal, Plastic
Product colour: White
Form factor: Tube/dome
Degree of protection IK: IK10
Mounting type: Ceiling
Power
Power consumption (max): 5.3 W
Power source type: DC, PoE
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 6.5 W
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Management features
Web-based management: Yes
Web browser: Yes
Weight & dimensions
Weight: 590 g
Height: 66.4 mm
Depth: 192.7 mm
Width: 70.5 mm
Network
Networking standards: IEEE 802.3af
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Quality of Service (QoS) support: Yes
Bluetooth: No
Number of users: 20 user(s)
System requirements
Mobile operating systems supported: iOS, Android
Performance
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): 120 dB
Signal-to-Noise Ratio (SNR): 56 dB
Placement supported: External / Internal
Packaging content
Number of cameras: 1
Audio
Audio formats supported: PCM, G.711Mu, G.711a, G.726, G.723
Built-in microphone: Yes
Storage
Internal memory: 512 MB
ROM capacity: 128 MB
Built-in HDD: No
Camera
Pan range: 0 - 360°
White balance: Manual, Outdoor, Natural, Auto, Street lamp
Minimum illumination: 0.005 lx
Camera shutter speed: 1/3 - 1/100000 s
Tilt angle range: 0 - 90°
Lens viewing angle, diagonal: 132°
Lens viewing angle, horizontal: 111°
Lens viewing angle, vertical: 58°
Adjustment shutter speed: Auto/Manual
Image sensor
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Supported graphics resolutions: 2880 x 1620, 2960 x 1668, 1280 x 720 (HD 720), 352 x 288, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 704 x 576, 1280 x 960, 704 x 480, 2688 x 1520, 640 x 480 (VGA), 352 x 240, 2304 x 1296
Frame rate: 30 fps
Back Light Compensation (BLC): Yes
Total megapixels: 5 MP
Highlight Compensation (HLC): Yes
Maximum resolution: 2960 x 1668 pixels
Bit rate: 3 kbps-8192 kbps, H.265: 3 kbps-8192 kbps
Video compression formats: H.264B, H.265, H.264, H.264H, M-JPEG
Video streaming: Yes
Gain control type: Auto/Manual
Mirror function: Yes
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Night vision
Night vision distance: 50 m
Number of illumination LEDs: 1
LED type: IR
Night vision: Yes
Lens system
Lens type: Fixed focal length lens
Number of lenses: 1
Focal length range: 2.8 mm
Closest focusing distance: 1.1 m
Maximum aperture number: 1.4
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Warranty: warranty 36 months
