Design
Product colour: White
Housing material: Metal
International Protection (IP) code: IP67
Form factor: Tube/dome
Mounting type: Ceiling/wall
Power
Power consumption (max): 5 W
Power source type: DC, PoE
DC output voltage: 12
Power consumption (typical): 2.7 W
Power consumption (Power over Ethernet (PoE)): 5.9 W
Security
Video motion detection: Yes
Operational conditions
Operating temperature (T-T): -40 - 55 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 55 °C
Management features
Web browser: Yes
Web-based management: Yes
Weight & dimensions
Width: 70 mm
Weight: 470 g
Height: 70 mm
Depth: 166.2 mm
Network
Networking standards: IEEE 802.3af
Ethernet interface type: Fast Ethernet
Number of users: 20 user(s)
Wi-Fi: No
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Bluetooth: No
System requirements
Mobile operating systems supported: Android, iOS
Performance
Wide Dynamic Range (WDR): 120 dB

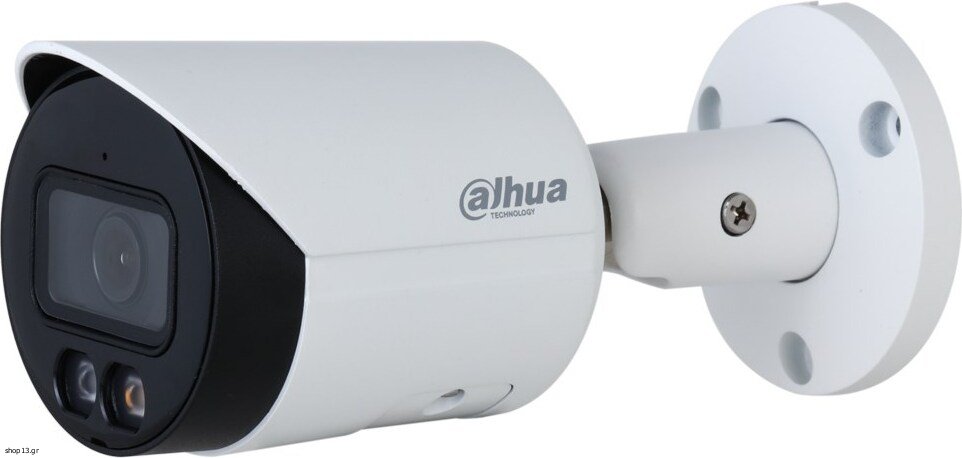

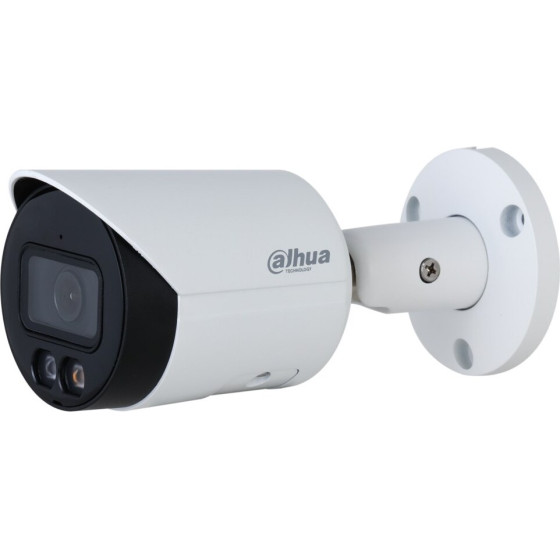

Type: IP security camera
Connectivity technology: Wired
Placement supported: External / Internal
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Audio formats supported: G.711Mu, PCM, G.726, G.711a
Storage
Built-in HDD: No
Internal memory: 256 MB
ROM capacity: 128 MB
Camera
Lens viewing angle, vertical: 58°
Lens viewing angle, horizontal: 111°
Lens viewing angle, diagonal: 132°
Minimum illumination: 0.008 lx
White balance: Outdoor, Natural, Street lamp, Manual, Auto
Pan range: 0 - 360°
Adjustment shutter speed: Auto/Manual
Tilt angle range: 0 - 90°
Camera shutter speed: 1/3 - 1/100000 s
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of sensors: 1
Sensor type: CMOS
Video
Video compression formats: H.264H, H.264B, H.264+, H.265+, M-JPEG, H.265, H.264
Supported graphics resolutions: 352 x 288, 2048 x 1536 (QXGA), 3072 x 1728, 3072 x 2048, 704 x 480, 2688 x 1520, 704 x 576, 1280 x 960, 3840 x 2160, 1280 x 720, 2880 x 1620, 1920 x 1080, 352 x 240, 2304 x 1296
Maximum resolution: 3840 x 2160 pixels
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Noise reduction: Yes
Region of Interest (ROI) encoding: Yes
Total megapixels: 8 MP
Noise reduction technology: 3D noise reduction
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Video streaming: Yes
Bit rate: H.264: 32 kbps-8192 kbps H.265: 12 kbps-8192 kbps
Gain control type: Auto/Manual
Night vision
Night vision: Yes
LED type: IR / White light LED
Night vision distance: 30 m
Number of illumination LEDs: 2
Lens system
Lens type: Fixed focal length lens
Number of lenses: 1
Closest focusing distance: 1.5 m
Focal length range: 2.8 mm
Maximum aperture number: 1.6
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Warranty: warranty 36 months
